Proximity Probe Housing Assemblies | 31000 SC115582-1 | Bently Nevada

Technical Specifications

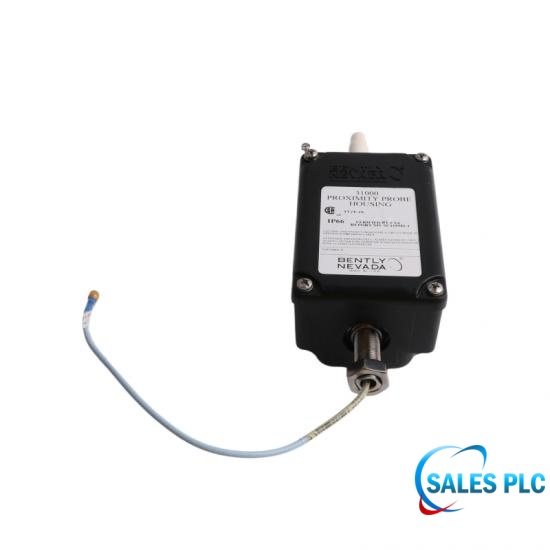

The 31000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.

Application Scenarios and Advantages

No-downtime maintenance: Used for external mounting of radial vibration or Keyphasor probes. The cover can be opened for probe adjustment or replacement without machine disassembly.

Explosion-proof and anti-static: Complies with EN50014 static-dissipation requirements, making it suitable for hazardous areas in oil, gas, and refinery applications.

Chemical resistance: PPS housing provides excellent resistance to acids, alkalis, steam, and condensate.

Protection Rating

IP66 protection: Fully dust-tight and resistant to high-pressure water spray.

Type 4X certified: CSA-certified for corrosion resistance, ice resistance, and impact protection.

Electrostatic dissipation: Meets CENELEC EN50014 requirements, reducing the risk of electrostatic spark generation in hazardous environments.

Technical FAQ

Q: What is the main material of 31000 SC115582-1 housing? Is it corrosion resistant?

A: The housing of 31000 SC115582-1 is made of glass-fiber reinforced PPS conductive thermoplastic, with internal sleeves and external screws made of AISI 303/304 stainless steel, providing strong industrial corrosion resistance and anti-static dissipation capability.

Q: Why use 31000 SC115582-1 probe housing instead of direct bare probe installation?

A: It is mainly used for external radial mounting (Radially Mounted). Its key advantage is that no machine disassembly is required, allowing technicians to adjust probe gap or replace probe and cable directly from the outside, significantly reducing downtime.

Q: What probe type is typically installed inside 31000 SC115582-1?

A: It can be factory-fitted with a 3300 XL 8 mm eddy current probe, available with 0.5 m or 1 m integral cable options.

Q: Will long-term exposure to steam or hot water damage 31000 SC115582-1?

A: Short-term exposure (within 1 week) to 95°C hot water or condensate steam has no effect. However, continuous exposure for 6–8 weeks may reduce material strength to about 50%, requiring inspection for leakage or degradation.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
