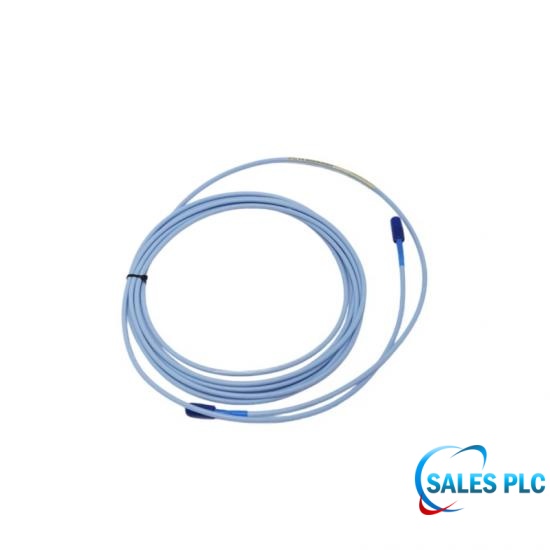

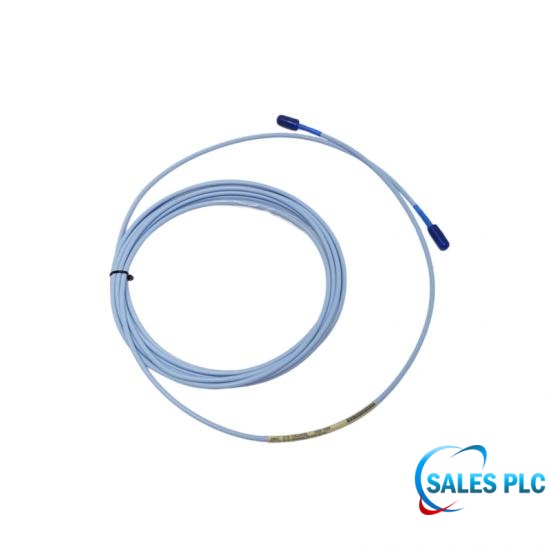

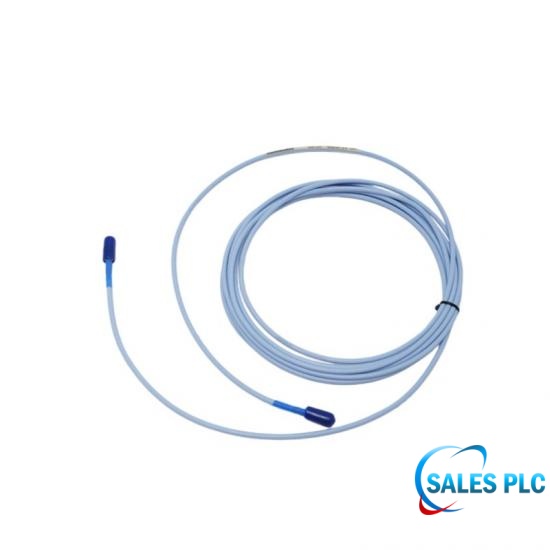

Proximity Probe | JNJ5300-08-045-00-00 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The JNJ5300-08-045-00-00 is a Proximity Probe manufactured by Bently Nevada. It is widely used in condition monitoring and asset protection systems (such as the classic 3500 system) for rotating machinery (such as steam turbines, compressors, motors, and water turbines) to monitor shaft vibration, shaft displacement, shaft speed, and keyphasor.
|
Manufacturer |
Bently Nevada |
|
Article number |
JNJ5300-08-045-00-00 |
|
Type |
Proximity Probe |
|
Dimension |
20.5x22.5x3.5cm |
|
Weight |
0.25 kg |
|
Input Signal Capacity |
Up to 2 transducer input signals |
|
Supported Transducers |
1–2 proximity probe transducers or magnetic pickups |
|
Input Signal Range |
+10.0 V to –24.0 V |
|
Input Signal Protection |
Signals outside range are internally limited |
|
Input Impedance (Standard) |
20 kΩ |
|
Input Impedance (TMR) |
40 kΩ |
|
Input Impedance (Internal Barrier) |
7.15 kΩ |
|
Power Consumption |
5.8 W typical |
|
Front Panel OK LED |
Indicates proper Tachometer Module operation |
|
Front Panel TX/RX LED |
Indicates communication with other modules in the 3500 rack |
|
Front Panel Bypass LED |
Indicates Tachometer Module is in Bypass Mode |
|
Buffered Transducer Outputs |
One front-panel coaxial connector per channel |
|
Buffered Output Protection |
Short-circuit and ESD protected |
|
Buffered Output Connection |
I/O module Euro-style connectors |
|
Output Impedance |
550 Ω |
|
Transducer Power Supply |
–24 V DC |
|
Maximum Transducer Supply Current |
40 mA per channel |
|
Speed Input Range |
0.0039 to 255 events/revolution |
|
Maximum Full-Scale Speed |
99,999 rpm |
|
Maximum Input Frequency |
20 kHz |
|
Minimum Input Frequency (Proximity Transducer) |
0.0167 Hz (1 rpm at 1 event/revolution) |
|
Minimum Input Frequency (Magnetic Pickup) |
3.3 Hz |
|
RPM Accuracy (<100 rpm) |
±0.1 rpm |
|
RPM Accuracy (100–10,000 rpm) |
±1 rpm |
|
RPM Accuracy (10,000–99,999 rpm) |
±0.01% of actual shaft speed |
|
RPM/Min Accuracy |
±20 rpm/min |
|
Operating Temperature (Internal/External Termination I/O) |
–30 °C to +65 °C (–22 °F to +150 °F) |
|
Operating Temperature (Internal Barrier I/O) |
0 °C to +65 °C (32 °F to +150 °F) |
|
Storage Temperature |
–40 °C to +85 °C (–40 °F to +185 °F) |
|
Humidity |
95% RH, non-condensing |
|
Alarm Delay |
1 to 60 s (1-second increments), 1 to 60 s (0.1-second increments) |
Working Principle
A high-frequency current passes through a coil inside the probe, generating an alternating magnetic field around it (the probe tip).
When the metal shaft (conductor) being measured approaches this magnetic field, eddy currents are generated on the metal surface.
The magnitude of the eddy currents varies with the distance (gap) between the probe and the metal surface, causing a change in the coil impedance.
The preamplifier (proximitor sensor) converts this impedance (gap) change into a proportionally output DC/AC voltage signal (the standard gap voltage is typically set around -10V).
Main Applications
Radial Vibration Measurement: Monitors the dynamic movement (shaft vibration) of the rotor axis inside the bearing, preventing rubbing.
Axial Displacement Measurement: Monitors the axial movement of the rotor, preventing damage to thrust bearings and collisions between moving and stationary parts.
Speed and Keyphasor Measurement: Provides a phase reference signal (keyphasor) and precise speed by measuring the keyway or boss on the shaft.
Technical FAQ
Q: What is this JNJ5300-08-045-00-00 used to measure in machine condition monitoring?
A: It is commonly used to measure axial position (Thrust Position), radial vibration (Radial Vibration), and speed/keyphasor (Speed/Keyphasor) signals in rotating machinery.
Q: What should the static gap voltage be adjusted to in the field?
A: The probe installation should be adjusted so that the static output voltage of the proximitor is approximately -10.0 VDC. The normal linear operating range is between -2 V and -18 V DC.
Q: What should be considered when installing non-armored cable (-00) in field wiring?
A: Non-armored cable is susceptible to mechanical wear and oil/gas corrosion. When routing through junction boxes or cable trays, protective flexible conduits must be used. In addition, insulating sleeves must be installed on high-frequency ClickLoc connectors, and direct contact with grounded metal enclosures is strictly prohibited.
Q: What is the measurement range and sensitivity of this 8 mm probe?
A: The full-scale measurement range is 2.0 mm (80 mils). The standard linear output sensitivity is 7.87 V/mm (200 mV/mil).
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
Trusted by 5,000+ plants worldwide | Contact for more Bently Nevada spares: sales1@amikon.cn
