Proximity Probe | RS900106-05-30-05-02-00 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications

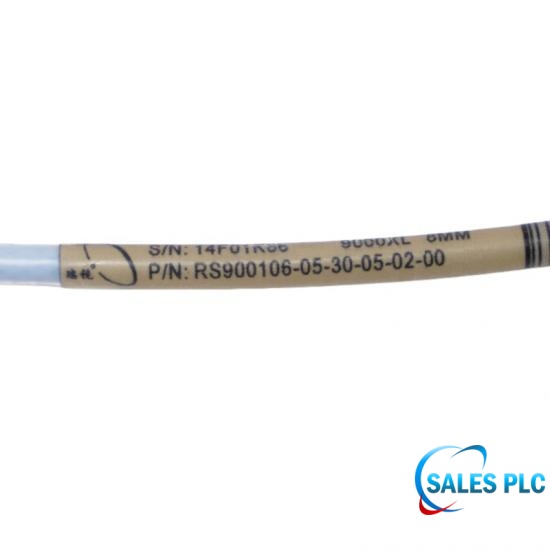

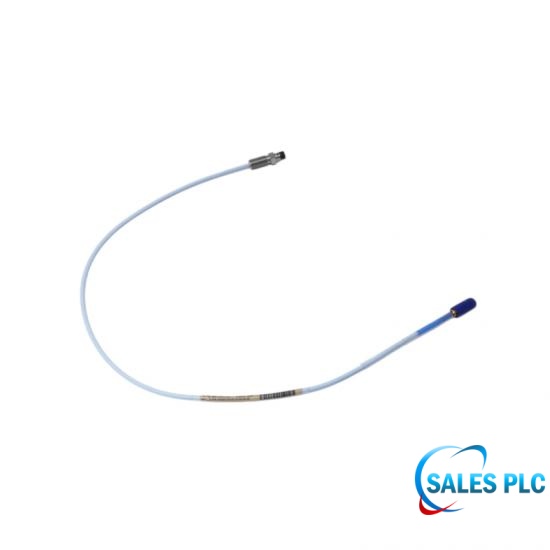

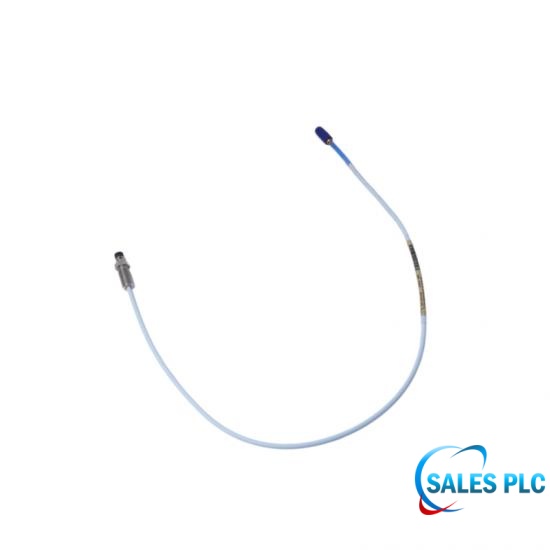

The Bently Nevada RS900106-05-30-05-02-00 is a Proximity Probe manufactured by Bently Nevada. It is installed directly inside the machine and is mainly used to sense the vibration and displacement of shafts.
|
Manufacturer |
Bently Nevada |
|
Article number |
RS900106-05-30-05-02-00 |
|
Type |
Proximity Probe |
|
Dimension |
64x1.3x1cm |
|
Weight |
0.04kg |
|
No Threaded Length (Option A) |
0.5 inch |
|
Housing Total Length (Option B) |
3.0 inch |
|
Cable Length (Option C) |
0.5 m (1.6 ft), integrated cable |
|
Connector Type (Option D) |
Miniature ClickLoc™ coaxial connector |
|
Certification (Option E) |
No special national restrictions / standard industrial grade |
|
Probe Diameter |
8 mm |
|
Mounting Thread |
Reverse mount type, typically 3/8-24 thread |
|
Linear Measurement Range |
Approx. 2.0 mm (80 mils), high linearity from 0.25 mm to 2.30 mm |
|
Standard Sensitivity |
7.87 V/mm (200 mV/mil), requires 3300 XL Proximitor |
|
Probe Tip Material |
PPS high-performance engineering plastic (TipLoc molding technology) |
|
Housing Material |
303/304 stainless steel, suitable for oil mist and chemical vapor environments |
On-site Installation Precautions
Lateral Metal Interference Limitation: Absolutely no non-test target metal (such as bearing housing edges or mounting brackets) should be present within a 15.2 mm (0.6 inch) diameter circumference around the probe head. Interference will distort the magnetic field, directly causing severe distortion of the measured voltage or displacement.
Standard Calibration Block: All official electrical specifications are calibrated based on an AISI 4140 steel (standard carbon steel) target disc. If the shaft material being measured on-site is 45# steel, stainless steel, or chrome-plated, a preamplifier calibrated with special materials must be used; otherwise, on-site recalibration is required.
System Compatibility
Extension Cable 330130-040-00-00 (4.5 meters) or 330130-085-00-00 (8.5 meters)
Preamplifier (Proximitor) 330100-50-00 (5-meter system) or 330100-90-00 (9-meter system)
Technical FAQ
Q: What specific interface connector type is used in the RS900106-05-30-05-02-00 product?
A: The probe is equipped with a Miniature ClickLoc™ coaxial connector for its connection interface.
Q: Are there any specific country or regional restrictions for the RS900106-05-30-05-02-00 product in international use or sales?
A: The probe has no special country restrictions and is classified as a standard industrial-grade product for global use.
Q: What is the full-scale range and standard sensitivity of this RS900106-05-30-05-02-00?
A: The full-scale linear measurement range is typically 2.0 mm (80 mils). The standard linear output sensitivity is 7.87 V/mm (200 mV/mil).
Q: What should the static gap voltage be adjusted to?
A: The probe position should be adjusted so that the proximitor output static voltage is approximately -10.0 VDC, with the normal operating linear range between -2 V and -18 V DC.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
