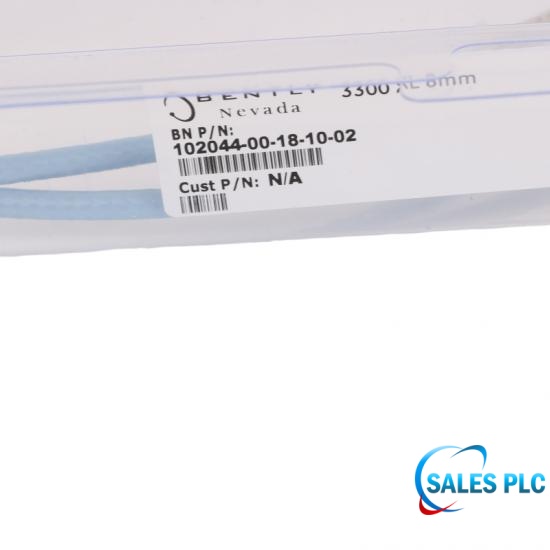

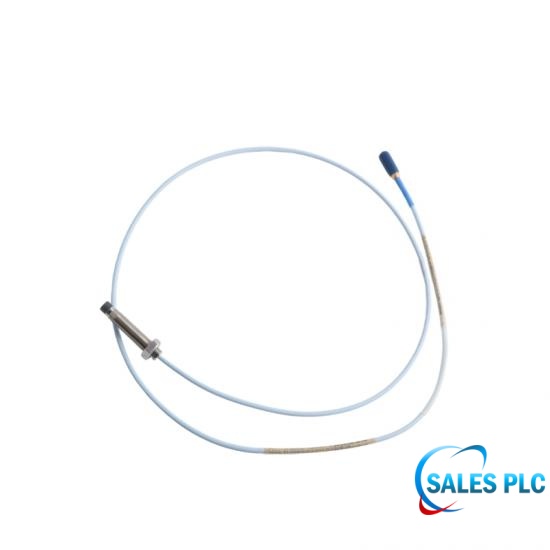

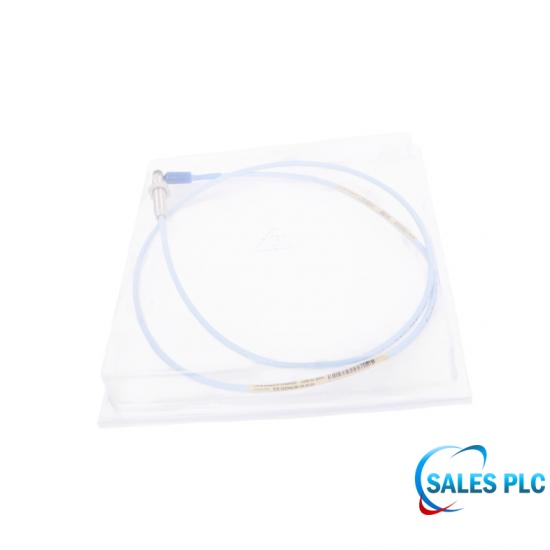

Proximity Sensor | 102044-00-18-10-02 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The Bently Nevada 102044-00-18-10-02 is a Proximity Sensor from Bently Nevada for use in the 3300 XL 8mm eddy current shaft vibration/displacement sensor system. It is widely used for monitoring and protecting key parameters such as shaft vibration, axial displacement, and key phase in rotating machinery.
|
Manufacturer |
Bently Nevada |
|
Article number |
102044-00-18-10-02 |
|
Type |
Proximity Sensor |
|
Dimension |
1.5x1.3x118cm |
|
Weight |
0.06 kg |
|
Power Requirements |
–17.5 V DC to –26 V DC (without barriers), maximum consumption 12 mA |
|
Output Resistance |
50 Ω |
|
Operating Temperature Range |
–51 °C to +177 °C |
|
Environmental Protection |
IP67-rated (dustproof and waterproof) |
|
Accuracy |
±1% of reading |
|
Mounting Type |
Panel mount |
|
Wiring |
2-wire configuration |
Core Functions
Eddy Current Non-Contact Measurement: The preamplifier generates a high-frequency radio frequency signal, which is transmitted via cable to a coil on top of the probe. The coil induces eddy currents on the surface of the measured metal (such as a metal shaft). Changes in the surface gap alter the impedance of the probe circuit, ultimately converting it into a voltage signal proportional to the gap distance.
Interchangeability (No Bench Calibration Required): Due to the excellent consistency of the 3300 XL system, as long as the total cable length matches (e.g., 1 meter probe + 4 meters extension cable = 5 meters system), the probe, extension cable, and preamplifier are completely interchangeable, eliminating the need for bench recalibration of individual components.
Application Scenarios
Shaft monitoring for steam turbines and gas turbines
Axial displacement safety protection for centrifugal/axial compressors
Radial vibration measurement for large industrial pumps and fans
Eccentricity and key phase (speed) measurement for hydro-generator sets
Technical FAQ
Q: What supply voltage is required for normal operation of 102044-00-18-10-02 in field installation?
A: The system requires a standard operating supply voltage range of -17.5 VDC to -26 VDC, with a typical maximum current consumption of around 12 mA.
Q: What is the ingress protection (IP rating) of 102044-00-18-10-02 in harsh industrial environments?
A: The component has an IP67 rating, providing strong protection against dust ingress and water immersion, making it suitable for oil, moisture, and harsh field conditions.
Q: What is the rated operating temperature range of 102044-00-18-10-02?
A: The design supports extremely harsh environments, with an operating temperature range typically from -51°C to +177°C (or in some specialized encapsulations from -40°C to +100°C).
Q: Can 102044-00-18-10-02 be directly paired with standard Bently Nevada 3500 monitoring systems or proximitor drivers?
A: Yes. As a derivative of the 3300 XL 8mm system, it can transmit high-precision displacement signals via standard coaxial cable to Bently Nevada 3500 vibration monitoring modules.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
