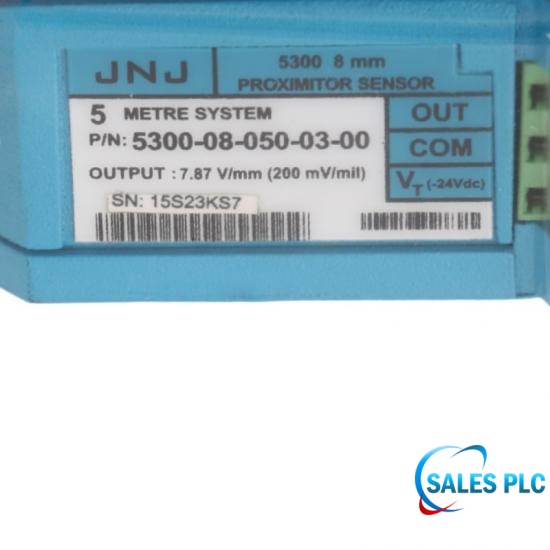

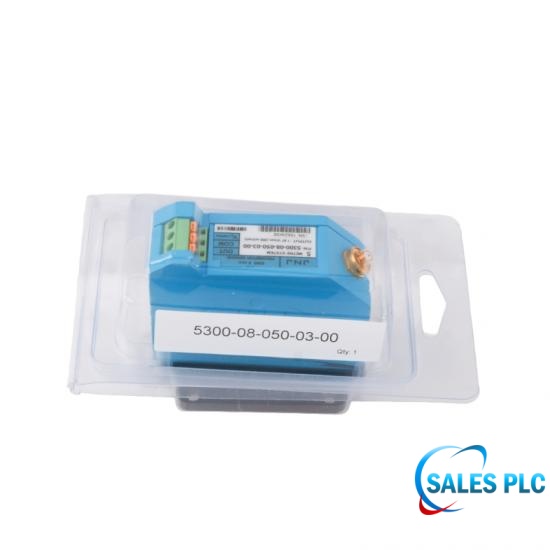

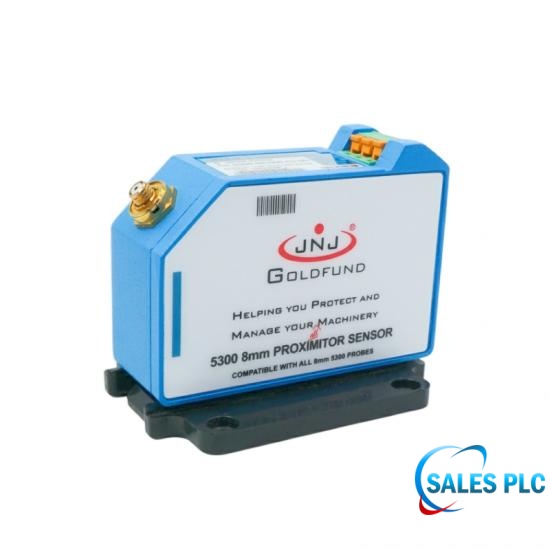

Proximity sensor | 5300-08-050-03-00 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The Bently Nevada 5300-08-050-03-00 is a high-precision, non-contact proximity sensor from the JNJ5300 series used by Bently Nevada for condition monitoring of turbine units. This hardware is typically used in conjunction with the 3500 mechanical protection system for continuous measurement of radial vibration, axial displacement (shaft runout), and key phase signals in large rotating machinery.
|
Manufacturer |
Bently Nevada |
|
Article number |
5300-08-050-03-00 |
|
Type |
Proximity sensor |
|
Dimension |
7.8x6.2x6.5cm |
|
Weight |
0.24kg |
|
Probe Head Diameter |
8 mm |
|
Probe Threaded Housing Length |
50 mm |
|
Total Cable Length |
3.0 m |
|
Connector Configuration |
Standard metric/imperial anti-loosening coaxial connector, no armored explosion-proof sleeve |
|
Operating Temperature |
–40 °C to +85 °C |
|
Protection Rating |
IP67 |
Application
Turbine plant: Factory-installed monitoring for large power and cogeneration turbine units.
Blower plant: Pre-installed vibration points for high-speed blast and ventilation fans.
Thermal power plant: Monitors turbine-generator bearing motion to prevent rubbing and rotor contact failures.
Steel plant: Continuous bearing condition monitoring for sinter fans and gas compressors.
Petrochemical plant: Tracks vibration and wear trends in cracking compressors and high-pressure pumps.
On-site Installation and Calibration Points (Gap Adjustment)
Material Calibration: The 5300-08 standard probe is typically factory calibrated for 4140 steel. If your turbine or blower shaft is made of stainless steel or other special alloys, the sensitivity coefficient must be corrected in the 3500 configuration software when adjusting the gap on-site.
Gap Voltage Calibration: During installation, the field personnel should use a multimeter to measure the preamplifier output terminals (OUT and COM) with the equipment off. Slowly screw the probe in until the gap voltage stabilizes at approximately -10.0 Vdc (the typical operating range is -9V to -11V). At this point, the probe is at the optimal midpoint for linear measurement. Then, tighten the lock nut.
Technical FAQ
Q: What are the probe head diameter and threaded housing length of the Article number 5300-08-050-03-00 probe assembly?
A: Head diameter is 8 mm, and threaded housing length is 50 mm.
Q: What is the total cable length of the Article number 5300-08-050-03-00 probe?
A: 3.0 m.
Q: What type of connector configuration is used for the Article number 5300-08-050-03-00?
A: Standard metric/imperial anti-loosening coaxial connector, without armored explosion-proof sleeve.
Q: What is the operating temperature range of the Article number 5300-08-050-03-00?
A: –40 °C to +85 °C.
Q: What is the ingress protection rating of the Article number 5300-08-050-03-00?
A: IP67.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
Trusted by 5,000+ plants worldwide | Contact for more Bently Nevada spares: sales1@amikon.cn
