Real Time Accelerator Board | PU514 3BSE013062R1 | ABB

Technical Specifications

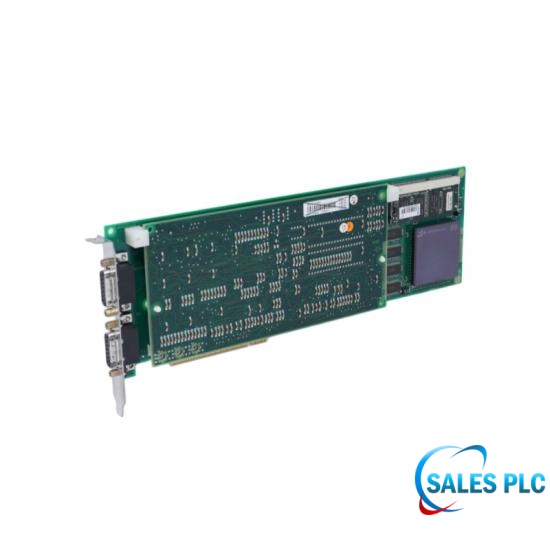

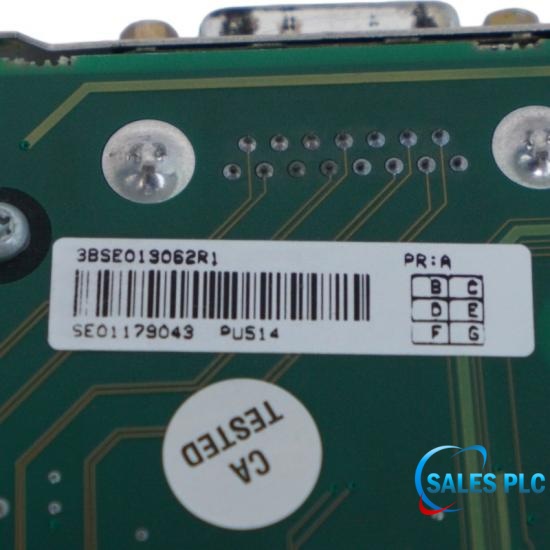

The ABB PU514 3BSE013062R1 is a Real-Time Accelerator PCI bus interface board primarily used in ABB MOD 300 and Operate IT industrial control systems. Equipped with a 400 MHz processor and 16 MB RAM, PU514 3BSE013062R1 delivers deterministic real-time data handling while maintaining efficient operation with a typical power consumption of only 10 W. The module operates from a standard 24 V DC power supply, making it suitable for continuous industrial use. PU514 3BSE013062R1 features a 5 V PCI bus interface, allowing installation in a standard 5 V PCI expansion slot without requiring specialized hardware modifications.

Troubleshooting & Commissioning Checklist

Slot Voltage Verification: Ensure the target industrial PC motherboard features a legacy 5V PCI slot (identified by the notch toward the rear/I-O bracket side of the slot). Do not force it into a 3.3V-only slot.
Visual Inspection: Inspect the board for bulging capacitors, deep scratches on PCB traces, or bent pins on the two 15-pin D-sub connectors.
CS502V1 Module Seating: Verify that the onboard sub-module is firmly seated and has not vibrated loose during transit.

Field Engineering Considerations

PCI Bus Power Constraints: The PU514 3BSE013062R1 draws significant +5V DC power directly from the backplane. Ensure the Industrial PC power supply unit has at least 15-20% overhead on its 5V rail, especially if multiple RTA or specialized cards are installed.
Hot-Swapping Prohibition: The PU514 3BSE013062R1 does not support hot-swapping. The IPC must be completely powered down, and its power cord unplugged before inserting or extracting the board to prevent catastrophic backplane shorts.

Technical FAQ

Q: Does the PU514 3BSE013062R1 support hot-swapping while the host IPC is running?
A: No. You must completely power down and unplug the host industrial computer before installing or removing the PU514 3BSE013062R1 to prevent permanent electrical damage to the board or the motherboard.

Q: What do the two 15-pin D-sub connectors on the PU514 3BSE013062R1 bracket connect to?
A: They connect directly to the dual-channel DCN (Distributed Communications Network) redundant cables, linking the station to the broader Advant OCS or MOD 300 automated system network.

Q: If the red LED on the PU514 3BSE013062R1 lights up solid, what does it mean?
A: A solid red LED indicates a critical hardware self-test failure. This usually means either the onboard 16MB RAM or the core CS502V1 processing chip has suffered permanent component damage.
