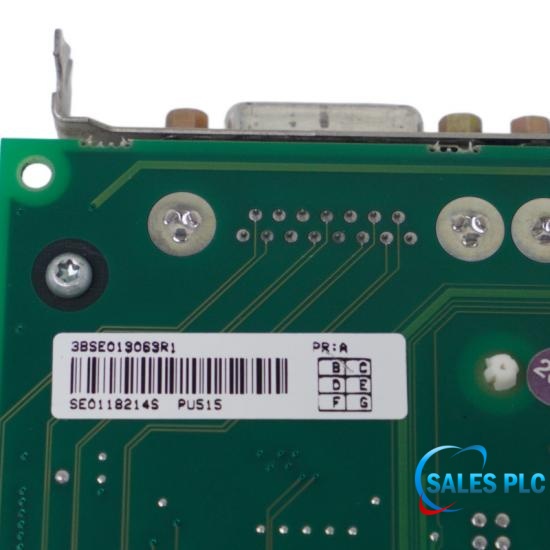

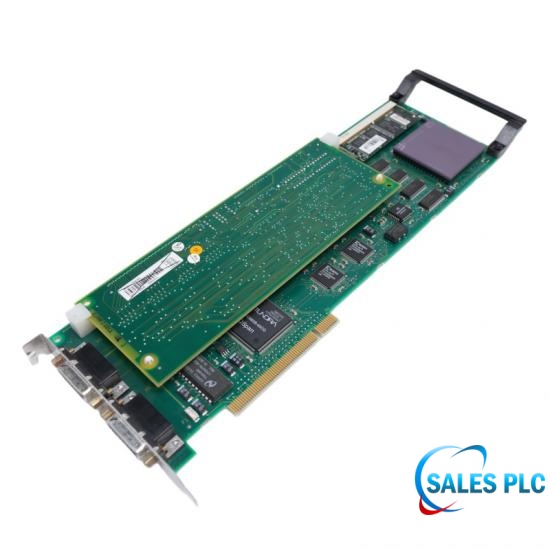

Real-Time Accelerator (RTA) Board | PU515 3BSE013063R1 | ABB

Technical Specifications

The ABB PU515 3BSE013063R1 Real-Time Accelerator Module to enhance real-time processing capabilities in industrial control systems. It significantly improves the response speed and efficiency of automation systems and is widely used in manufacturing, energy, and various automated production lines.PU515A RTA Board is only supported in 32-bit versions of the Workstation Operating System and the Server Operating System. PU410 RTA Unit is supported in both 32-bit and 64-bit versions of the Workstation Operating System and the Server Operating System. When replacing a PU515A RTA Board with a PU410 RTA Unit, the PU515A must be removed before using Change program features.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Driver Deployment: Inject proper RTA device drivers before seating the card or during the initial boot phase.
Device Manager Audit: Open OS device parameters to verify the card registers cleanly under system devices without IRQ/resource resource conflicts.
Redundancy Validation: Confirm both physical channels are online to evaluate standard automated network failover.

Related Models for ABB UNITROL EXCITATION SYSTEMS

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What happens if the PU515 board fails or is missing?
A: If this card is missing, faulty, or fails during operation, the human-machine interface application (such as the OS500 application on Unix) will fail to launch. The controller loses its ability to feed high-speed telemetry, operator graphics updates, and alarm lists back to the workstation. In a redundant configuration, the system automatically redirects data traffic to a secondary standby controller path.

Q: Can I use the PU515 with other communication protocols?
A: No. The hardware infrastructure and dual-channel ports are strictly optimized for the MB300 protocol. It cannot be interchanged with modules dedicated to alternative fieldbus networks like Profibus or Modbus without swapping the primary communication sub-module.

Q: What is the difference between the PU515 and the PU515A?
A: The newer variant, PU515A (Part Number: 3BSE032401R1), is a direct functional upgrade designed to replace older legacy hardware. System administrators frequently utilize specific upgrade packages (such as STUP-PU515A) to switch out failing or deprecated PU515, PU518, or PU519 interface boards.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
