Relay Extension Output Module | XOO8R1-B04 1SBP260101R1001 | ABB

Technical Specifications

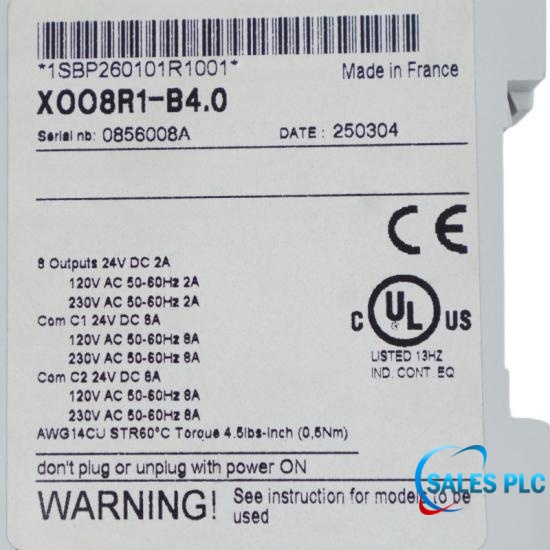

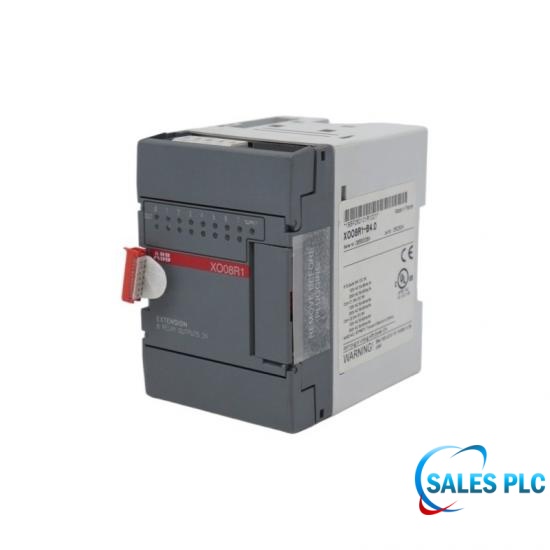

The ABB XOO8R1-B04 1SBP260101R1001 is a relay output extension module belonging to the ABB Advant Controller 31 automation system. XOO8R1-B04 1SBP260101R1001 provides 8 relay output channels with relay binary output functionality. Each output channel of XOO8R1-B04 1SBP260101R1001 supports relay switching applications with a rated output current of 2 A, allowing the module to control connected industrial devices through relay contact outputs.

Troubleshooting & Commissioning Checklist

Extension Bus Connection Review: Examine the local extension bus ribbon cable connector on the side of the housing. Verify no multi-pin segments are twisted, bent, or filled with airborne debris, as an imperfect link will drop communication with the primary CPU.
Terminal Row Conditioning: Inspect the screw-clamp terminal block header for pin deflection or contact oxidation. Swab all terminal channels with a fast-evaporating electronic contact solvent before wiring external field loops.
Inductive Kickback Clamping Prep: If the channel is mapped to switch inductive AC/DC loads, verify that an external RC snubber circuit (for AC) or a freewheeling diode (for DC) is wired directly across the load coil to prevent back-EMF arcs from welding the contacts.

Field Engineering Considerations

Atmospheric Particulate Protection: The open-ventilation housing design makes internal circuit traces highly vulnerable to conductive iron shavings, carbon dust, and ambient chemical humidity common in harsh factory environments. The module must always be mounted inside an intact, sealed NEMA or IP-rated enclosure to prevent tracking faults, creepage degradation, and premature component short circuits.
Terminal Torque Optimization: The removable screw-clamp terminal block header requires precise physical torque management during installation. Under-torquing leads to high-resistance contact points that cause terminal overheating under 2A continuous loads, while over-torquing can fracture the underlying PCB trace anchor points or strip the screw threads.

Technical FAQ

Q: Why must an external snubber be wired when switching inductive loads with the XOO8R1-B04 1SBP260101R1001?
A: Switching inductive loads generates heavy reverse-EMF voltage spikes during turn-off. Field engineers must install an external RC snubber (for AC) or freewheeling diode (for DC) directly across the load coil to prevent back-EMF arcs from permanently welding the module’s contacts together.

Q: Why is the XOO8R1-B04 1SBP260101R1001 module highly sensitive to environmental dust and particulate hygiene?
A: The XOO8R1-B04 1SBP260101R1001 utilizes an open-ventilation housing. If conductive iron shavings, carbon soot, or ambient humidity accumulate on the internal circuit paths, they narrow the creepage distance, triggering phase-to-phase tracking faults or destructive component short circuits.

Q: What does a persistent "Extension Bus Error" or total loss of module discovery tell you about the XOO8R1-B04 1SBP260101R1001 layout?
A: It indicates that the lateral multi-pin ribbon interface connector linking the block to the AC31 CPU has walked out of its seat due to plant vibration or has oxidized. Technicians must power down, clean the pins with zero-residue solvent, re-seat the plug firmly, and lock the module down with rugged DIN-rail end stops.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
