Robot Communication Module | DSQC352A 3HNE00009-1/12 | ABB

Technical Specifications

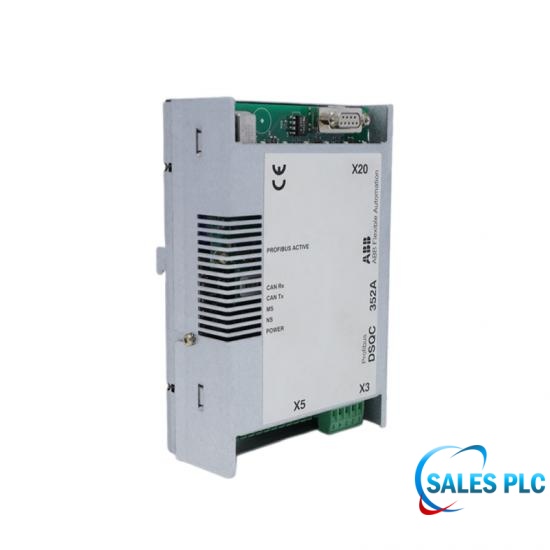

The ABB DSQC352A 3HNE00009-1/12 is a communication gateway module used in ABB robot controller systems for data exchange between DeviceNet and PROFIBUS-DP networks. The module has a maximum current consumption of 500 mA at 24 VDC and is equipped with a dedicated 24 VDC backup feed supply connection for stable module operation within ABB robot controller cabinets.

Expertise Overview

Physical Address Switches: The unit features rotary or DIP switches hidden on the housing. These set the hardware address for the PROFIBUS side (0-125).
DeviceNet Software Addressing: The robot controller identifies this module on its internal network via soft-parameters configured in the EIO.cfg file. The default DeviceNet address assigned to this gateway by ABB is typically Address 10.
GSD Integration Requirement: To communicate with the factory PLC, the master must be injected with the correct device database file (ABB_04A1.GSD). If the GSD file configuration does not match the byte-allocation defined in the robot's EIO.cfg, the bus will fail to initialize.

Field Engineering Considerations

Dual Power Dependencies: The DSQC352A 3HNE00009-1/12 requires two separate power checks. The internal gateway logic runs on 24V DC supplied directly via the 5-pin DeviceNet network cable (pins 1 and 5). If the robot cabinet's 24V internal supply drops or fluctuates, the entire gateway will drop offline, even if the PROFIBUS side is perfectly healthy.
Ground Loops and Shielding: PROFIBUS and DeviceNet are highly sensitive to electromagnetic interference (EMI) from nearby weld controllers or variable frequency drives (VFDs). Ensure the drain wire on the DeviceNet plug and the metallic shield on the 9-pin PROFIBUS D-sub connector are cleanly grounded to the cabinet chassis.

Technical FAQ

Q: What physical settings must be copied when swapping out a faulty DSQC352A 3HNE00009-1/12?
A: You must match the hardware rotary/DIP switches on the module shell, which dictate the physical PROFIBUS node address.

Q: What should I check if all LEDs on the DSQC352A 3HNE00009-1/12 are completely off?
A: Check the 24V DC power supply on the DeviceNet network cable (pins 1 and 5); the module draws its operating power directly from this bus.

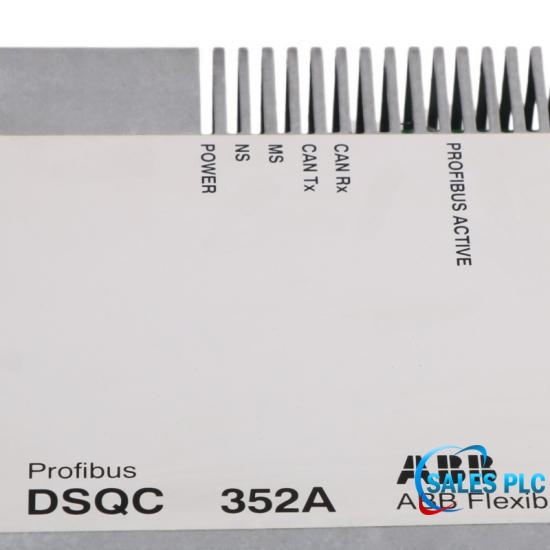

Q: What does a solid red PROFIBUS LED on the DSQC352A 3HNE00009-1/12 indicate?
A: A total physical link failure on the factory side, such as a disconnected purple cable, loose D-sub plug, or broken wire.

Q: Why is the PROFIBUS LED flashing red/amber even though the cable is plugged in?
A: There is an I/O configuration mismatch. The byte size configured in the PLC software (e.g., TIA Portal) does not match the size in the robot's EIO.cfg file.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
