Robot Computer Board | DSQC 373 3HAC3180-1 | ABB

Technical Specifications

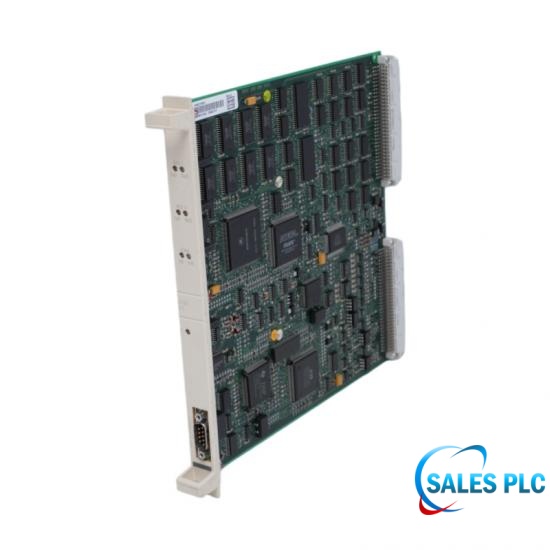

The ABB DSQC 373 3HAC3180-1 is a robot computer board for the ABB S4C M98, M98A, and M99 robot controller platforms. The DSQC 373 3HAC3180-1 integrates 1 MB SRAM for high-speed operational memory and 2 MB Flash memory for firmware and system storage, providing improved processing capability and software compatibility for ABB industrial robots. DSQC 373 3HAC3180-1 for continuous industrial service with an operating temperature range of 0°C to +55°C and a storage temperature range of -25°C to +70°C. The DSQC 373 3HAC3180-1 supports 5% to 95% relative humidity, non-condensing, making it suitable for demanding manufacturing environments.

Troubleshooting & Comissioning Checklist

ESD Protection: Fasten an earthed electrostatic discharge band to your arm and clamp it to the metal housing panel prior to touching any circuitry.
Cabinet Cleanliness: Inspect the inner assembly bay to guarantee the slot environment remains clear of stray metal shavings or floating grease films.
Main Disconnect: Confirm that the upstream plant power breaker is padlocked under strict lockout-tagout safety rules before inserting the module into its rear connector.

Field Engineering Considerations

Firmware and Software Thresholds: Designed specifically to combat legacy flash memory capacity limits, the DSQC 373 3HAC3180-1 demands RobotWare version 3.2 or later to function. Flashing an outdated BaseWare iteration onto this specific hardware triggers immediate initialization loops.
Memory Sub-board Matching: Operational stability hinges on the piggyback RAM daughtercards installed on the host module. On-site technicians must double-check that the physical volatile memory specs perfectly mirror the configuration settings embedded within your system image archive.
Hardware Release Revisions: Cross-check the manufacturing modification label prior to setup. Within a coordinated multi-arm working cell, syncing these revision codes is critical to eliminate microsecond clock jitters across the shared VME/PCI parallel backplane architecture.

Technical FAQ

Q: If the teach pendant remains completely blank upon bootup, how can I verify if the DSQC 373 3HAC3180-1 is getting power?
A: Test the sub-rack busbar rails where the unit taps its +5V, +12V, and -12V DC lines directly from the central transformer module. Dropping or floating potentials on these tracks will kill the handshake needed to fire up the remote handset display.

Q: What does a solid red "Fault" LED on the faceplate of the DSQC 373 3HAC3180-1 indicate?
A: An unblinking red warning illuminates due to catastrophic hardware failure, scrambled flash boot sectors, or a recurring initialization trap caused by deploying a non-compatible RobotWare release older than 3.2.

Q: Can a depleted cabinet backup battery cause data loss on a newly installed DSQC 373 3HAC3180-1 board?
A: Yes, since the card relies on the external housing cells to maintain its static RAM when the primary station breaker trips. A flat cell string means the system clock and site-specific parameters vanish on every single restart.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
