Robot Computer | DSQC 363 3HAC1462-1 | ABB

Technical Specifications

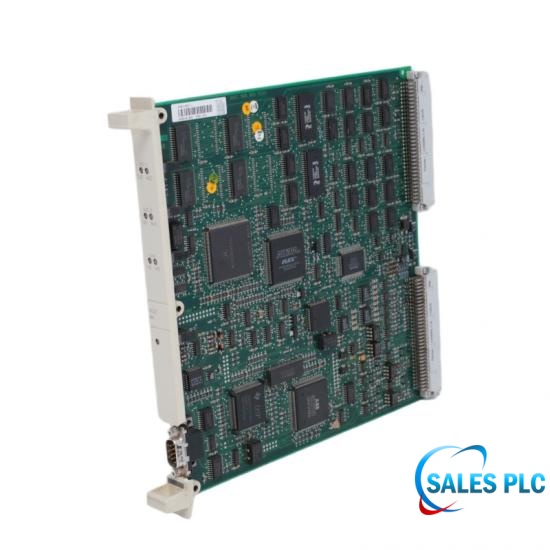

The ABB DSQC 363 3HAC1462-1 is a rack-mounted plug-in controller board for ABB S4C robot control systems. The DSQC 363 3HAC1462-1 is equipped with 2 × 96-pin male backplane connectors for secure internal communication through the S4C backplane and includes a built-in 9-pin serial service port for system diagnostics and maintenance. DSQC 363 3HAC1462-1 is for long-term industrial operation with an operating temperature range of 0°C to +55°C and a storage temperature range of -25°C to +70°C, allowing reliable performance in demanding factory environments. The DSQC 363 3HAC1462-1 supports 5% to 95% relative humidity, non-condensing, and utilizes natural convection cooling for efficient heat dissipation without requiring additional cooling hardware.

Troubleshooting & Commissioning Checklist

Manual Jogging Test: Move the robot at very low speed axis-by-axis to confirm that the feedback loops are stable and counting in the correct directional polarity.
Reset Revolution Counters: Bring the robot arm into physical alignment with its factory synchronization notches and reset the revolution counters via the teach pendant.
Safety Loop Tripping: Test that triggering an E-stop or opening the safety gate instantly drops power to the motor drives without locking up the axis computer interface.

Field Engineering Considerations

Velocity and Load Configurations: The board limits current to prevent motor damage based on predefined robot profiles. Any changes to the physical payload, velocity parameters, or working range require reconfiguration through the system's engineering software to match the actual mechanical limits.
Feedback Integration: Ensure all encoder or resolver feedback cables are properly shielded and securely terminated to prevent electrical noise from disrupting the position loops processed by the board.

Technical FAQ

Q: What are the most common physical symptoms that indicate a DSQC 363 3HAC1462-1 board failure?
A: Common symptoms include status LED indicators turning red or turning off completely, intermittent axis tracking errors, and communication timeout faults on the system teach pendant.

Q: If an axis runaway or tracking error occurs, how can I determine if the DSQC 363 3HAC1462-1 is the root cause?
A: Check the system error logs first. If the logs report internal hardware communication timeouts rather than motor or cable faults, the board's processing circuits may be failing.

Q: Can a failing power supply module damage the DSQC 363 3HAC1462-1 during operation?
A: Yes, excessive voltage ripple or power surges from an aging companion power supply can degrade the onboard logic circuits and capacitors.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
