RTA board | PU513V2 3BSE013034R1 | ABB

Technical Specifications

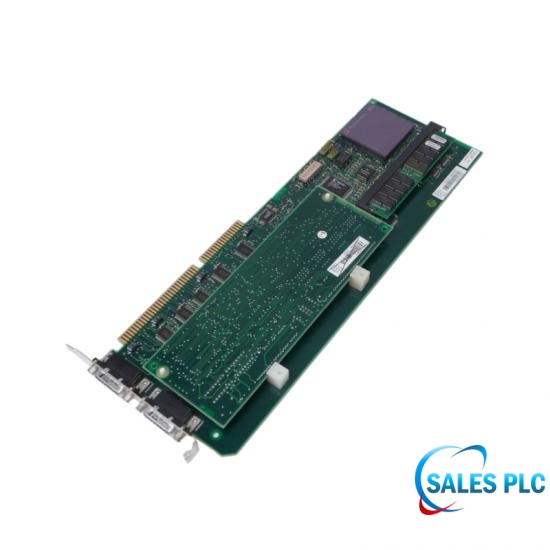

The ABB PU513V2 3BSE013034R1 is a Real-Time Accelerator board for industrial automation systems requiring reliable communication processing and bus connectivity. PU513V2 3BSE013034R1 operates with a low power consumption of ≤2 W, helping reduce energy usage and heat generation inside the control cabinet. The module uses a 5 V DC operating voltage, providing stable electrical operation within compatible automation system configurations.

Troubleshooting & Commissioning Checklist

I/O Port Address Selection: Set the onboard jumpers to select an isolated 16-bit I/O Port Address. Verify via the host OS that this address is free.
Interrupt Request Assignment: Dedicate a hardware interrupt via the jumper array. Ensure the host computer's BIOS is configured to "Legacy ISA/EISA" for that specific IRQ to prevent Plug-and-Play Windows devices from stealing it.
Physical Slot Cleaning: Inspect the host PC’s ISA/EISA slot for debris. Wipe the PU513V2  3BSE013034R1 gold edge contacts with isopropyl alcohol to prevent contact failure caused by factory dust.

Field Engineering Considerations

CMOS Gate Sensitivity: Calibrating the card’s physical Node ID and memory window requires manipulating fine DIP switches located directly on the open multi-layer PCB.

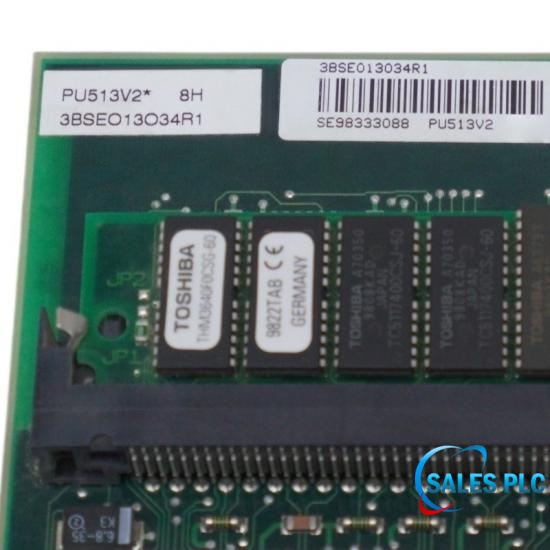

Latent Failures: Field engineers must wear a grounded ESD wrist strap before touching any part of the card. A static spark can cause micro-punctures in the 16 MB DRAM or RISC buffer chips. These punctures may not fail immediately but will degrade over time, leading to sudden, unexplainable communication dropouts weeks later during production.

Technical FAQ

Q: What do the front-face or onboard diagnostic LEDs on the PU513V2 3BSE013034R1 communicate to field technicians?
A: The red FAULT LED flashes during power-on self-tests and must turn completely off during operation; the green/yellow ACT LEDs pulse rapidly to indicate active data packet transmission or reception over network Channel A and B.

Q: Can I hot-swap a failed PU513V2 3BSE013034R1 interface board while the host industrial computer is still powered on?
A: No, the legacy ISA/EISA architecture does not support live swapping; removing or inserting the module while the computer is live will cause data bus voltage arcing that can permanently destroy the card and the PC motherboard.

Q: Why does the PU513V2 3BSE013034R1 network interface rely on strict 50-ohm BNC coaxial cable termination physics?
A: The MB300 protocol acts as a high-frequency RF transmission line. Missing or wrong terminators will cause data signals to reflect back down the wire, scrambling token-ring packets and triggering random network dropouts.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
