S800 Processor Module | PM825 3BSE010796R1 | ABB

Technical Specifications

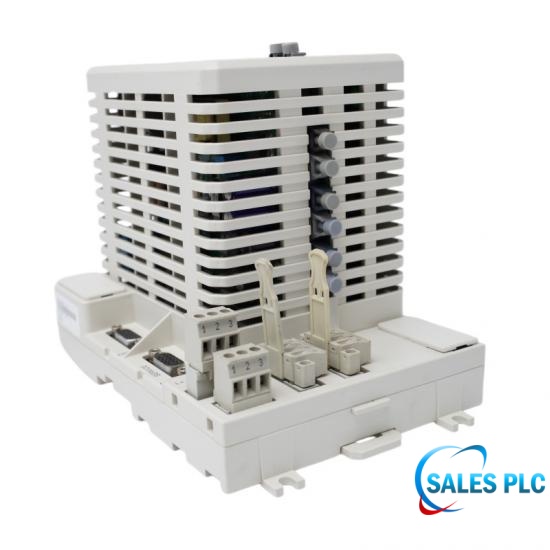

The PM825 (3BSE010796R1) is a processor module used in ABB's AC 800M controller platform for industrial process automation. It executes application control programs, manages system communication, and coordinates distributed control functions. The PM825 supports ABB's modular automation architecture and is compatible with S800 I/O modules, including digital and analog I/O, through the AC 800M control system.

Troubleshooting & Comissioning Checklist

Confirm Fault: Match the physical slot and time stamps inside the engineering station prior to removal.
Check Standby: Proceed with swapping only if the secondary redundant channel shows a perfectly stable healthy state.
Firm Seat: Slide the replacement unit smoothly down the guides to prevent crushing rear pins.

Field Engineering Considerations

Power Connection: The module uses a dedicated terminal connector (ABB Part: 2664177-3). Ensure field power distribution blocks match the specific draw characteristics of the S800 backplane logic.
Engineering Tools: Interface with the controller using DriveWindow for drive-related applications, Modbus panels, or native Advant Master human-machine interfaces (HMIs).
Logistics Handling: Due to the lithium composition, the module is classified as Dangerous Goods Class 9 (UN3091-PI969). Transporting replacement units to offshore rigs or remote facilities requires appropriate hazmat documentation.

Technical FAQ

Q: Does the PM825 package include system software?
A: No. The processor module is supplied as pure hardware and does not include the system software program. You must load the software separately during system commissioning.

Q: What system architecture does it run on?
A: It natively runs Advant Master Software for process control logic, monitoring, and data management.

Q: Can it run as a standalone controller?
A: Yes. The AC80 system can be configured either independently as a stand-alone unit or integrated into a wider network architecture.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
