Servo drive dummy | 3HAC17282-1 | ABB

Technical Specifications

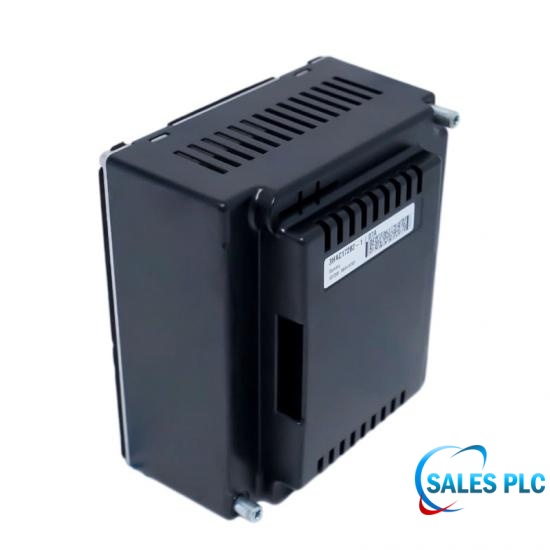

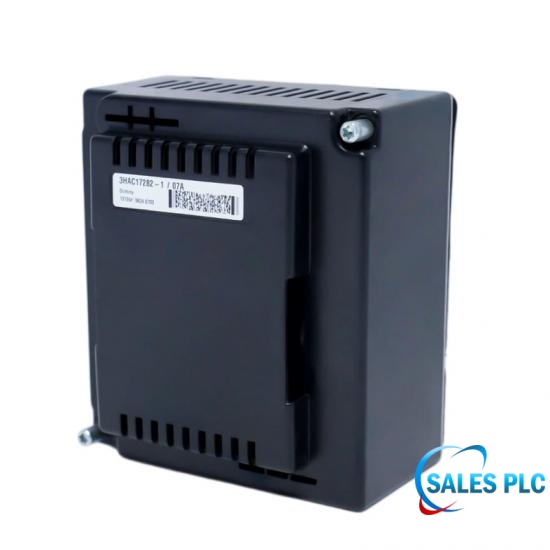

The ABB 3HAC17282-1 is a Servo Drive Dummy for use within ABB robotic controller systems. As an IRC5 Single controller component, the ABB 3HAC17282-1 is for the servo-drive-related hardware configuration of ABB robotic systems. It forms part of the controller hardware arrangement and is used where a servo drive dummy is required within the IRC5 Single configuration. The unit is for integration into ABB robotic controller assemblies and supports the correct physical configuration of the drive section.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Safety Interlocking & Power-Up: Secure the workspace, ensure no personnel are inside the robot cell, and switch on the main IRC5 power breaker.
Firmware & Boot Sequence: Verify the main controller boots past the base system runtime environment successfully.
Communication Link Verification: Verify that the status LEDs for the active drive modules downstream from the dummy module remain green.

Field Engineering Considerations

DC Bus Configuration: Ensure any physical busbars or jumpers connecting the common DC bus links across adjacent ABB drive modules are properly isolated or bypassed when the dummy module is locked in place.
Cabinet Environment Constraints: The component relies on the IRC5 internal fan cooling assembly. Ensure the operating environment stays within the standard automation cabinet thresholds.
Mechanical Security: The unit utilizes a rugged plastic chassis with a rigid metal base. Secure it tightly via the integrated screw mounts to prevent industrial vibrations from compromising adjacent active modules.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is the primary function of the ABB 3HAC17282-1?
A: It serves as a mechanical placeholder and simulation bypass. It fills empty slots in the controller module assembly when specific active drive axes are not required. This maintains proper internal air circulation, environmental sealing, and physical structural integrity within the drive cabinet.

A: No. This unit has no internal electrical components, power ratings, or active phase requirements. It features a black plastic body with a metal base meant solely for screw-mounted mechanical placement.

A: Industrial robotic controllers rely on specific internal airflow dynamics to prevent real servo drives from overheating. Leaving a drive slot empty disrupts the cooling path. Additionally, installing a dummy drive satisfies the physical structure requirements without investing in an expensive, unneeded active drive module.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
