Single Servo Drive Unit |3HAC14549-3 | ABB

Technical Specifications

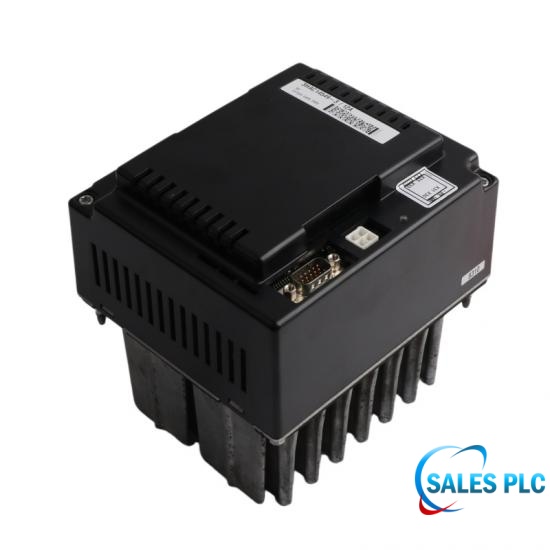

The ABB 3HAC14549-3 Rectifier, R3 is for heavy-duty industrial applications, delivering unparalleled performance and reliability in power conversion processes. This is the core rectifier unit in the power section of the IRC5 robot control cabinet—responsible for converting the workshop's three-phase AC power into the DC bus required for servo drives, which then connects axis drive modules like the DSQC643. (When encountering IRC5 reports "Drive Unit Error" or "Rectifier Fault" on-site, but the drive board itself measures fine, this unit is often the suspect.) It is not an independent power supply and does not have a 24V control power output function—the 24V is provided by a separate system power supply . When replacing it, ensure the DC bus capacitors are completely discharged before proceeding. After installation, you must perform Drive Module Identification in FlexPendant; otherwise, a configuration mismatch report may occur.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Power Lockout: Disconnect, lock out, and tag out all primary input power to the IRC5 cabinet.
Discharge Time: Wait at least 5 minutes for the drive/rectifier internal capacitors to fully discharge.
ESD Protection: Wear a grounded grounding wrist strap; the module contains components highly sensitive to electrostatic discharge.

Field Engineering Considerations

DC Link Stability: The module outputs to a shared DC bus. Ensure the DC bus bleeder resistors and capacitor banks are fully discharged before any handling or terminal verification.
Grounding Connection: Ensure optimal PE (Protective Earth) bonding to prevent high-frequency common-mode noise generated by the rectification diodes from disrupting logic-level communication.
Forced Airflow: The R3 module relies on cabinet-driven forced cooling. Verify that the airflow pathways around the rectifier fins are clean from layout debris, grease, or metallic dust common in manufacturing zones.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is the primary function of this module?
A: The module functions as a rectifier. It takes raw AC current from the industrial grid and transforms it into stable DC power. This DC voltage feeds the drive system and individual axis servomotors inside the manipulator arm.

Q: Can I hot-swap this rectifier while the controller is powered on?
A: No. Never attempt to remove or plug in the unit while the main power supply breaker is on. The IRC5 cabinet operates on lethal high voltages. Always follow proper lock-out/tag-out (LOTO) protocols, isolate the power source, and wait a few minutes for internal capacitors to fully discharge before opening the service panels.

Q: Which robotic systems use this rectifier?
A: It is primarily designed for industrial robots managed by the ABB IRC5 Controller. It is commonly deployed in heavier payload setups like the ABB IRB 6600 series.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
