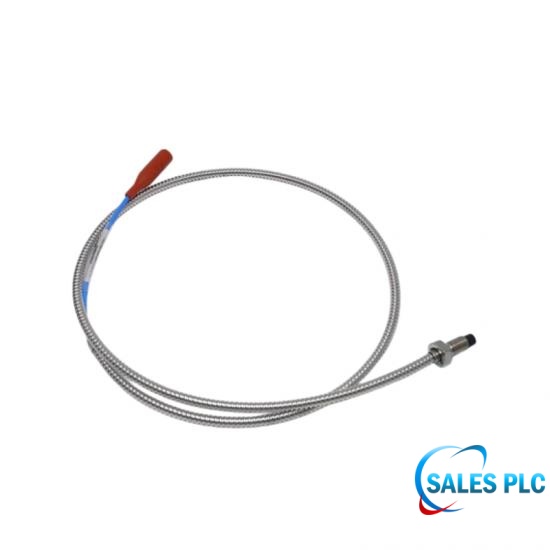

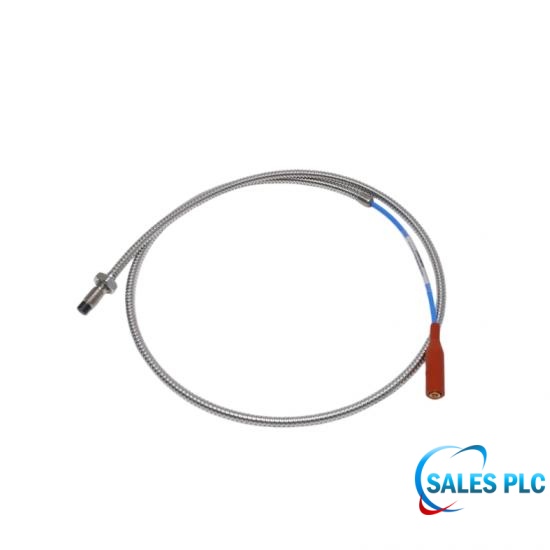

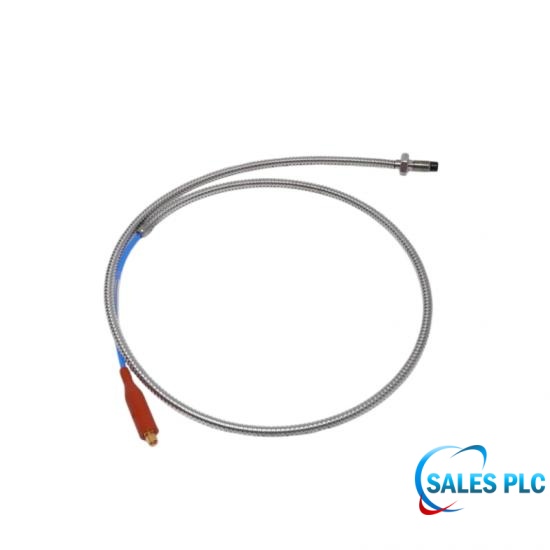

Standard 8mm Probe | TM0180-A08-B00-C02-D10 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The TM0180 (8mm) probes are designed for long life cycles and are suitable for harsh environments. PVTVM realizes one of the most significant problems in proximity probe installations are ground loops and loss of isolation due to damaged cable jackets. PVTVM’s custom rugged cable jacket prevents the probe cable from breaking and tearing and is highly resistive to corrosive environments. The TM0180 probe and extension cable are equipped with a standard protective rubber boot, which covers the connectors and prevents oil and dirt penetration.
|
Manufacturer |
Bently Nevada |
|
Article number |
TM0180-A08-B00-C02-D10 |
|
Type |
Standard 8mm Probe |
|
Dimension |
20.5x22.5x3.5cm |
|
Weight |
0.15 kg |
|
Probe Type |
M10×1; with armor |
|
Unthreaded Length |
Standard 00 (0 mm) |
|
Case Length |
02 (20 mm) |
|
Total Length |
10 (1.0m) |
|
Connect or Type |
None or yes |
|
Driver option |
A or None |
|
Power Supply Voltage |
-23 to -30 VDC |
|
Power Supply Current |
< 12 mA |
|
Linear Range |
2.0 mm begins at 0.25 mm from probe face (AISI4140); Range: 0.25–2.25 mm (10–90 mil) |
|
Sensitivity |
7.87 mV/µm (200 mV/mil) |
|
Temperature Sensitivity (Normal) |
Probe and 5 m cable, -35°C to 120°C: ±0.3%/°C in middle of linear range; at 2.25 mm: ±0.5%/°C |
|
Linearity (Deviation from Straight Line) |
Within ±0.0254 mm (±1.0 mil) when calibrated; ±0.038 mm (±1.5 mil) typical including interchangeability |
|
Frequency Response (±3 dB) |
0 – 10.0 kHz |
|
Minimum Target Size |
15 mm (0.6 inch) diameter |
|
Probe Temperature Operation/Storage |
-40°C to +120°C |
|
Humidity |
100% non-condensing |
Industrial Application Scenarios
Radial Vibration Measurement: Monitors dynamic vibrations caused by bearing wear, rotor imbalance, misalignment, and shaft cracks.
Axial Position (Displacement/Thrust) Monitoring: Determines the wear degree of thrust bearings to prevent severe collisions and friction between the rotor and stator.
Eccentricity Measurement: Measures the thermal or transient bending of the rotor during startup (turning gear operation) of large steam turbines.
Key Phase/Speed Measurement: Provides speed and phase references for vibration diagnostics (such as Bode plot and polar coordinate diagram analysis).
System Overall Length Matching
According to API 670 standards, the total cable length of the entire probe system must be matched. Since the probe cable is 1.0 meter (D10), you must select a 4.0-meter extension cable (e.g., model: TM0181-A40 series) to ensure a standard 5-meter system.
Technical FAQ
Q: What are the cable length and connector type of TM0180-A08-B00-C02-D10?
A: “-D10” indicates an integral cable length of 1.0 meter (approximately 3.3 feet) with a miniature coaxial connector.
Q: Why must cross-threading be strictly avoided during installation of TM0180-A08-B00-C02-D10?
A: Because the thread pitch is relatively fine, forcing the connector during installation can damage the threads, affecting probe stability and subsequent fine adjustment of the gap setting.
Q: What does the “-A08” parameter represent in TM0180-A08-B00-C02-D10?
A: It represents the probe housing thread specification, corresponding to an M10×1 threaded body design.
Q: What are the operating and storage temperature requirements for TM0180-A08-B00-C02-D10 in field or warehouse conditions?
A: The probe must operate and be stored within a temperature range of -40°C to +120°C.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
Trusted by 5,000+ plants worldwide | Contact for more Bently Nevada spares: sales1@amikon.cn
