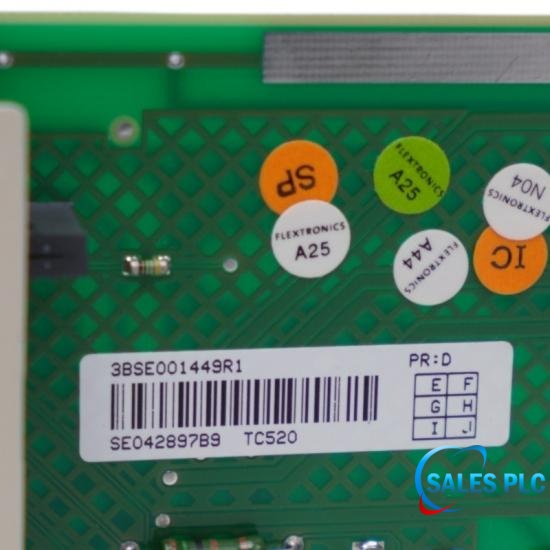

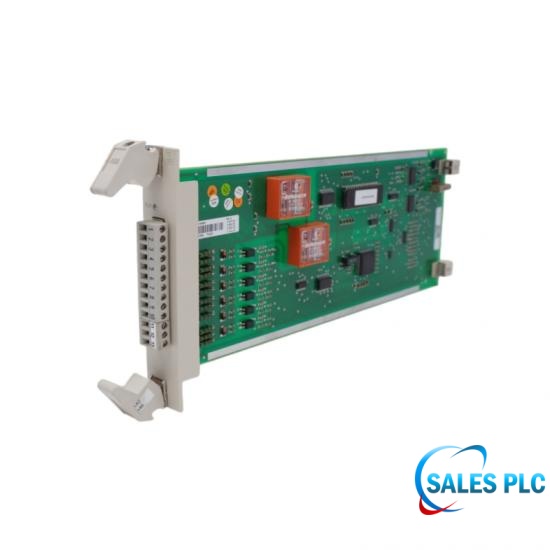

System Status Collector | TC520 3BSE001449R1 | ABB

Technical Specifications

The ABB TC520 3BSE001449R1 provides status input interfaces including STATUS A1, STATUS A2, STATUS B1, and STATUS B2 signals. These status inputs are optocoupler isolated and support an input voltage range of -50 V to +2 V for Logic "0" and +12 V to +60 V for Logic "1". TC520 3BSE001449R1 uses input filtering with selectable filter times of 1 ms / 100 ms, requires a pulse length greater than 100 ms, and uses a positive signal flank trigger.

Troubleshooting & Commissioning Checklist

Backplane Connector Inspection: Inspect the high-density Eurocard pins on the rear of the module using a flashlight. Verify there are no bent, broken, or corroded pins.
Conformal Coating Quality: Check for uniform thickness of the protective layer. Look for discoloration or chemical flaking, especially on refurbished/surplus stock items.
Chassis Cleanliness: Vacuum the target backplane slot to remove conductive iron-filings or cement dust prior to inserting the board.

Field Engineering Considerations

Database Logic Audit: Cross-examine the controller database parameters for inputs A1, A2, B1, and B2. Match their software error-state settings with the physical contact layout of your enclosure's door switches.
Wetting and Contact Prep: Inspect the front multi-pin connector plug for bent socket terminals or carbon glaze. Clean all gold-plated edge contacts using a quick-drying electronic contact cleaner solvent before inserting the module.
SYNC Pulse Alignment: Trace the hardwired synchronization line back to your plant master clock or calendar synchronization unit. Confirm that the terminal mapping routes the minute pulse cleanly to the SYNC pin on the TC520 3BSE001449R1 front panel.

Technical FAQ

Q: Can a field engineer override or modify the internal diagnostics of the TC520 3BSE001449R1 via software commands?
A: No. Because the TC520 3BSE001449R1 operates as an autonomous, transmit-only data engine, its diagnostic loops cannot be altered or forced by an outside user or controller task. Any diagnostic flag or fault configuration must be corrected at the database layer or the physical source hardware level.

Q: How does the TC520 3BSE001449R1 enforce calendar clock synchronization across the Advant subrack?
A: System-wide time synchronization requires a dedicated "minute pulse" to be hardwired directly from an upstream master clock generator to the front SYNC connector of the TC520 3BSE001449R1. The module separates and distributes this timing marker along the backplane to keep independent processor nodes synchronized.

Q: How are the alarm contact states (Normally Open vs. Normally Closed) defined on the TC520 3BSE001449R1 peripheral inputs?
A: The physical inputs (channels A1, A2, B1, B2) do not use hardware jumpers to alter their behavior. Instead, the contact logic is strictly defined inside the central controller database configuration. Field engineers must verify that database logic inversions perfectly match actual field wiring contacts to prevent reversed alarm states.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
