Thrust Transmitter | 991-01-XX-01-05 | Bently Nevada

Technical Specifications

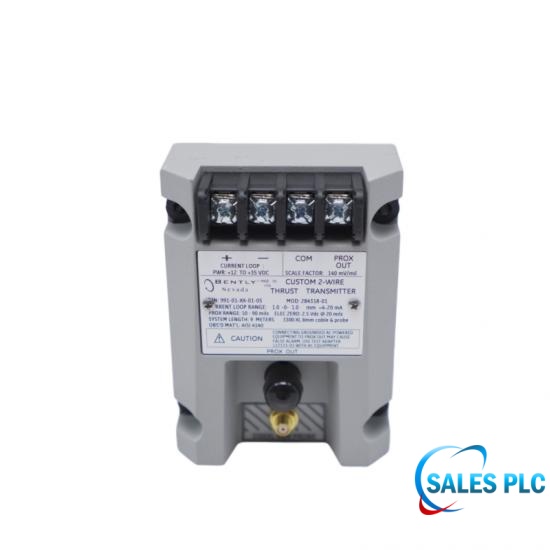

991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

On-site Installation Precautions

Safety Barrier Must Be Installed: Because this is a -05 intrinsically safe model, a certified intrinsically safe isolation safety barrier (such as a commonly used MTL or P+F barrier) must be connected in series between the control cabinet (safe area) and the transmitter (hazardous area) to limit the electrical energy that may flow into the hazardous area.

Earthing Specifications

The transmitter's coaxial interface housing (connected to the eddy current probe end) and internal main circuitry are insulated from the housing. The cable shield must be securely connected to the instrument-specific intrinsically safe grounding electrode (IS Ground) in the control room, and the entire cable must have only a single point of grounding to prevent ground loop currents that could cause sparks.

Technical FAQ

Q: What specific safety and explosion-proof certifications are included with the ending code "05" in 991-01-XX-01-05?

A: "05" indicates Multiple Approvals certification. The transmitter is certified for CSA Division 2 (North America), ATEX Zone 0, and ATEX Zone 2 (Europe) hazardous-area applications.

Q: What measurement range is defined by the leading "01" option in 991-01-XX-01-05?

A: In the standard factory calibration of the Bently 991 transmitter, the "01" option corresponds to an axial position/displacement full-scale range of 25-0-25 mils (a total travel of 50 mils, approximately 1.2 mm).

Q: How should the "XX" option be selected for 991-01-XX-01-05 when using different 3300 NSv sensor system lengths?

A: If the total nominal length of the proximity probe and extension cable is 5.0 meters, select 991-01-50-01-05. If the total nominal length is 7.0 meters, select 991-01-70-01-05.

Q: What mechanical configuration is represented by the second-to-last "01" option in 991-01-XX-01-05?

A: "01" indicates that the transmitter is supplied with mounting clips and can be directly installed on a standard 35 mm DIN rail inside a control or distribution cabinet.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
