Vibration Transmitter | 990-05-XX-01-CN | Bently Nevada

Technical Specifications

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Main Functions

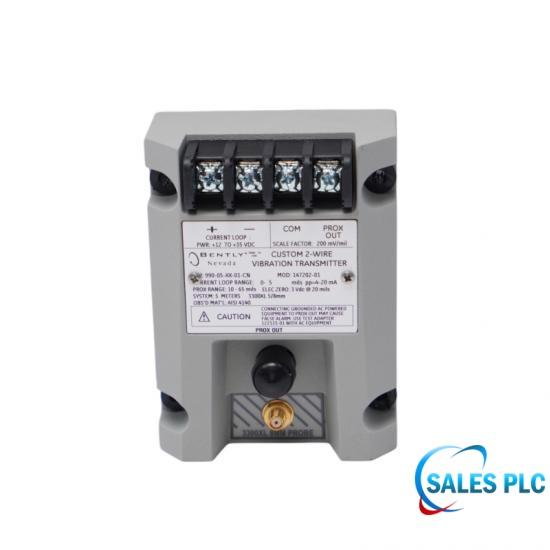

Independent Dynamic Waveform Output Interface (PROX OUT / COM): The front panel provides a non-isolated PROX OUT (coaxial BNC socket and terminals), outputting raw gap voltage and dynamic frequency vibration signals at a ratio of 7.87 mV/µm (200 mV/mil). This facilitates connection to portable data acquisition instruments or oscilloscopes for fault diagnosis and spectrum analysis.

False Alarm/Fault Lockout Circuit (Not OK/Signal Defeat): When the probe coil is open-circuited, short-circuited, or the connector is loose, causing an abnormal preamplifier signal, the system will activate the "Not OK" protection, reducing the 4-20 mA output current to < 3.6 mA to prevent the control system from triggering unexpected interlocking shutdowns (false trips) due to sensor failure.

Installation Specifications

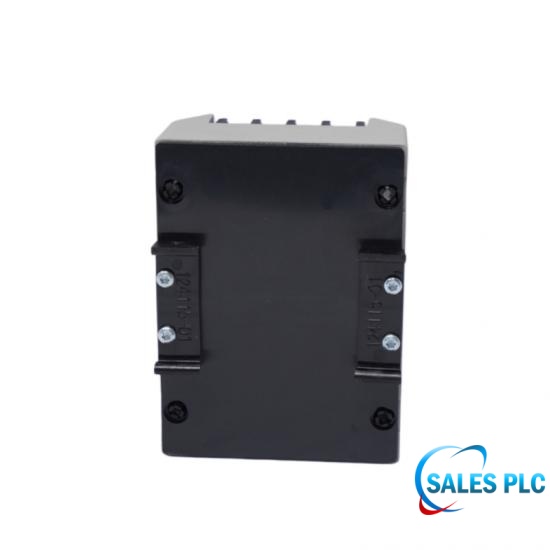

The equipment comes standard with a 35mm DIN rail clamp. Ensure the rail is properly grounded during installation.

If the on-site environment is harsh (such as dusty, humid, or chemically corrosive), it is recommended to install the transmitter in a dedicated stainless steel protective enclosure that meets NEMA 4 or IP65 standards.

Technical FAQ

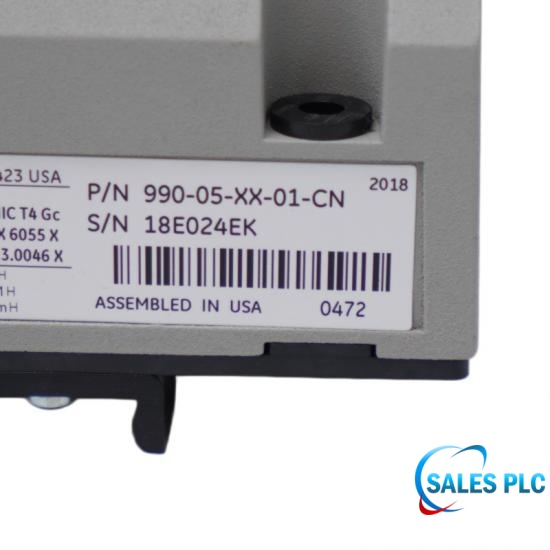

Q: What does the "CN" designation in the model number 990-05-XX-01-CN represent?

A: "CN" indicates that the transmitter is certified for CSA Division 2, ATEX Zone 0, and ATEX Zone 2 applications, and also includes ABS maritime approval.

Q: What are the differences in the hardware circuitry and housing labels between 990-05-XX-01-CN and the standard 990-05-XX-01-00?

A: The core measurement circuitry and mechanical housing dimensions are identical for both models. However, the 990-05-XX-01-CN features specific explosion-proof safety nameplates to comply with Chinese special equipment regulatory requirements.

Q: What measurement range does the "05" code represent in 990-05-XX-01-CN?

A: "05" indicates that the transmitter is configured for a full-scale output range of 0 to 5 mils peak-to-peak (approximately 0–125 µm pp) radial vibration amplitude.

Q: How should I select a 990-05-XX-01-CN model if my system length is 5 meters or 7 meters?

A: If the total cable length is 5.0 meters, select 990-05-50-01-CN. If the total cable length is 7.0 meters, select 990-05-70-01-CN.

Q: What mechanical mounting hardware is specified by the "01" option in 990-05-XX-01-CN?

A: "01" indicates that the module is supplied with standard 35 mm DIN rail clips for quick installation and integration inside control cabinets.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
