Technical Specifications

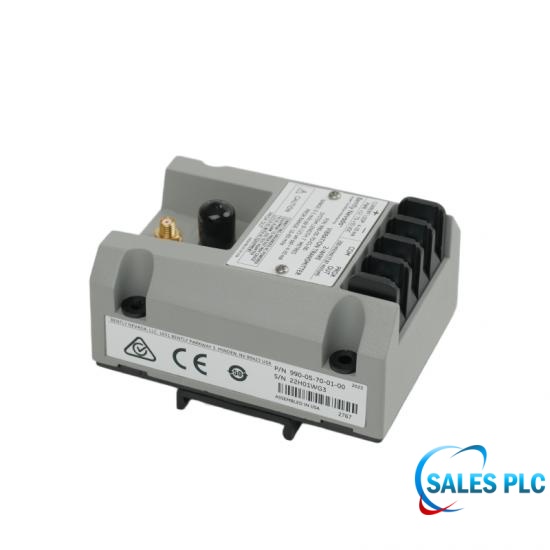

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Feature

Integrated Proximitor Sensor requires no external unit

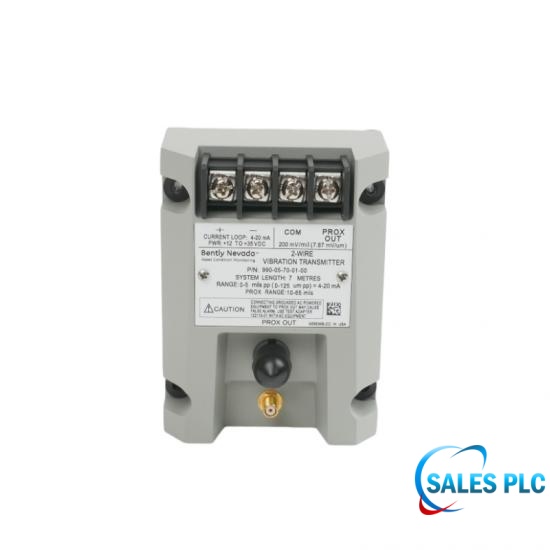

Non-isolated PROX OUT and COM terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics

Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment

Test Input pin for quick verification of loop signal output, using a function generator as the input

A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection

Field Installation and Spare Parts Replacement Recommendations

Strict Consistency of Range and Length: The system length is 7 m (-70). Do not mix probes or cables from 5 m systems, or measurement linearity and accuracy will be affected. The full-scale range is 0–100 µm (-06). Configure the PLC/DCS 4–20 mA input to 0–100 µm, not imperial mils.

Single-Point Grounding: Since the transmitter is non-isolated, follow the single-point grounding principle when wiring or using the PROX OUT diagnostic terminal to avoid ground-loop interference and unstable signals.

Technical FAQ

Q: What is the recommended initial gap voltage for installing the probe on the 990-06-70-01-05 transmitter?

A: The initial static gap voltage measured at the test terminal is typically adjusted between -9.0 Vdc and -10.0 Vdc, corresponding to about 1.0 mm installation gap, ensuring operation in the center of the linear range.

Q: How is the 990-06-70-01-05 transmitter powered, and what is the maximum loop resistance?

A: It is powered by a +12 to +35 Vdc 4–20 mA current loop. At 35 Vdc, the maximum loop resistance can reach 1,000 Ω.

Q: What is the function of the PROX OUT and COM terminals on the 990-06-70-01-05 transmitter?

A: These terminals (including coaxial output) provide unfiltered AC vibration signals and DC gap voltage (typically 7.87 mV/µm) for connection to systems like 3500 or portable data collectors without rewiring.

Q: What happens if the probe fails or disconnects on the 990-06-70-01-05 transmitter?

A: The Not OK protection circuit forces the output current below 3.6 mA within 100 µs when a probe fault, short circuit, or severe linear deviation is detected, preventing false alarms or trips.
