Vibration Transmitter | 990-08-XX-01-00 | Bently Nevada

Technical Specifications

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Features

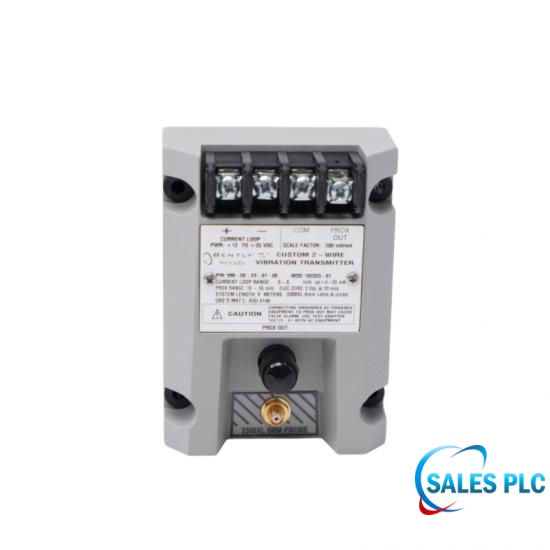

Dynamic Waveform Output (PROX OUT): The panel still provides a BNC interface and terminals, outputting a raw vibration waveform signal of 200 mV/mil, facilitating connection to the Bentley 2020 or other portable data acquisition instruments for on-site spectrum analysis.

Failure Lockout Protection (< 3.6 mA): In the event of probe disconnection, short circuit, or sensor failure, the output current will be forcibly reduced to below 3.6 mA. The PLC/DCS will recognize this signal as "Channel Fault (Not OK)," preventing accidental machine tripping.

Large Vibration Range Design: With the range expanded to 200 µm pp, this model is more suitable for small to medium-sized rotating machinery (such as medium-sized fans, pumps, motors, or small turbines) with slightly larger operating swing amplitudes or higher tolerance for vibration amplitude.

Replacement Notes

System Length Matching: When purchasing, it is essential to confirm whether the middle XX is 50 (5-meter system) or 70 (7-meter system). The transmitter system length must strictly match the total length of the "probe cable + extension cable" actually used in the field; otherwise, it will lead to serious measurement inaccuracies.

Area Safety Restrictions: Due to the suffix "00" (no certification), this spare part must not be directly installed in explosion-proof hazardous areas (Zone 0 / Zone 1 / Zone 2) containing flammable gases or dust. If the site environment requires explosion protection, a model with explosion-proof certification ending in CN, 05, or 01 must be purchased.

Technical FAQ

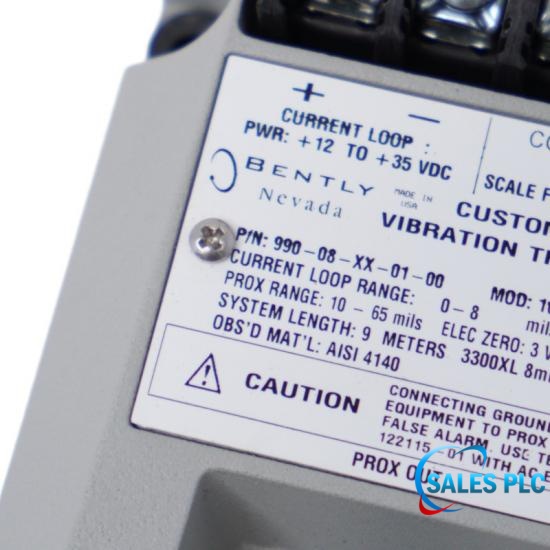

Q: What measurement range does the "08" code represent in 990-08-XX-01-00?

A: "08" indicates that the transmitter is configured for a full-scale output range of 0 to 8 mils peak-to-peak (approximately 0 to 200 µm pp) radial vibration amplitude.

Q: How does the 4-20 mA output signal of 990-08-XX-01-00 correspond to vibration amplitude?

A: 4 mA corresponds to zero vibration (0 mil), while 20 mA corresponds to full-scale vibration (8 mils, or 200 µm).

Q: Why must 990-08-XX-01-00 be selected instead of the "05" version for certain rotating machinery?

A: Some large machines or equipment with greater bearing clearances permit higher vibration amplitudes. The wider measurement range of the "08" version helps prevent signal overload (clipping) during high-vibration conditions.

Q: What mechanical configuration is specified by the "01" option in 990-08-XX-01-00?

A: "01" indicates that the transmitter is supplied with mounting clips and is designed for installation on a standard 35 mm DIN rail.

Q: What flame-retardancy and environmental protection rating does the housing of 990-08-XX-01-00 provide?

A: The housing is constructed from flame-retardant Polyphenylene Oxide (PPO). The transmitter itself must be installed inside an industrial control cabinet or enclosure with an IP54 rating or higher.
