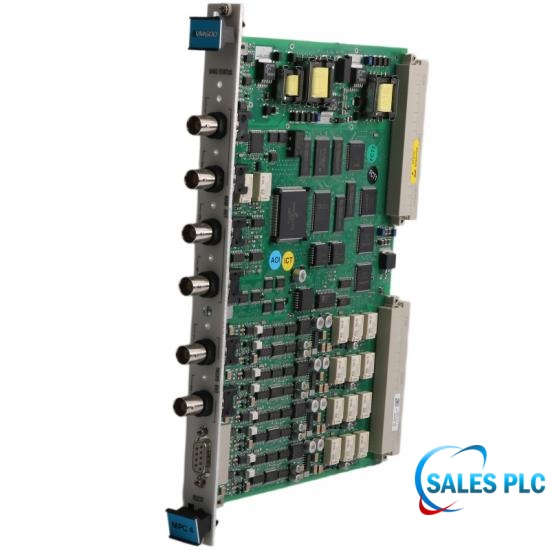

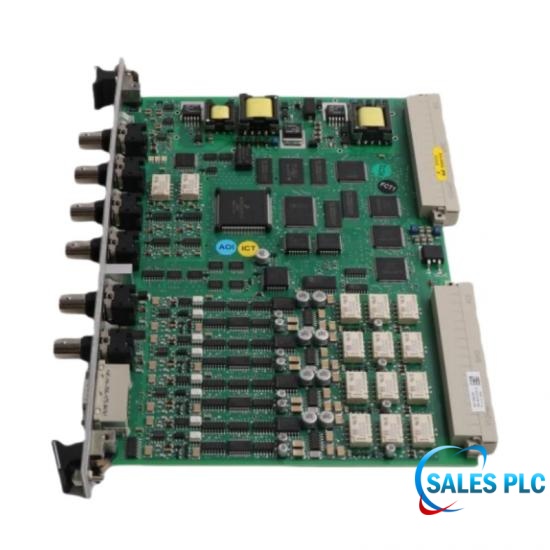

Vibro-Meter VM600 MPC4 200-510-076-114 Machinery Protection Card
VM600 MPC4 200-510-076-114
Machinery Protection Card · Four-Channel Machinery Protection Module for VM600 Machinery Protection System
Lifecycle note: Use the unit nameplate and current Vibro-Meter documentation as the final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Machinery Protection Card · VM600 Machinery Protection System
Vibro-Meter VM600 MPC4 200-510-076-114 is a four-channel machinery protection card designed for continuous monitoring of critical rotating equipment. The MPC4 processes dynamic sensor signals and evaluates them against configured protection parameters.
Four dynamic inputs allow the card to monitor vibration or related machine variables, while standard MPC4 versions also support two speed or phase-reference inputs. This combination lets the protection system relate vibration behaviour to shaft speed and machine operating state.
The signal path supports dynamic analog inputs with a frequency range extending from DC to 60 kHz, while processed AC measurement functions cover frequencies up to 10 kHz. Buffered raw outputs make the original measurement signals available for analysis or sharing with compatible monitoring hardware.
Vibro-Meter VM600 MPC4 200-510-076-114 works with an IOC4T rear interface card to connect sensors, relay outputs, analog outputs and discrete control signals. The card provides the measurement, alarm and shutdown-processing layer used by the VM600 Machinery Protection System.
| Manufacturer | Vibro-Meter |
|---|---|
| Model | 200-510-076-114 |
| Product type | Machinery Protection Processing Card |
| System family | Vibro-Meter VM600 Machinery Protection System |
| Designation | MPC4 |

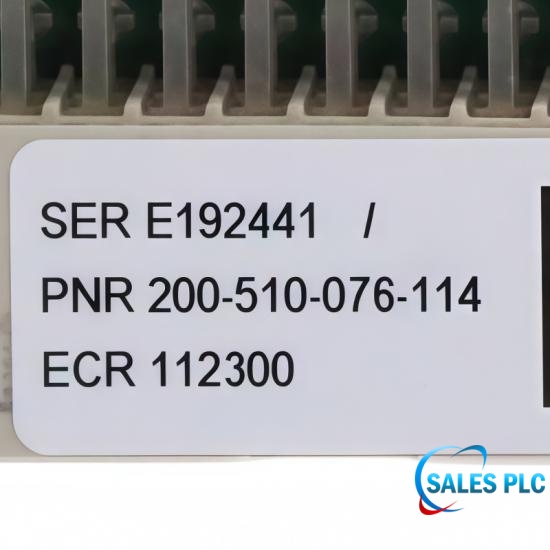

| Ordering number | 200-510-076-114 |
| Dynamic signal inputs | 4 |
| Speed / phase inputs | 2 |
| Voltage input DC range | 0 to +20 V or 0 to −20 V |
| Voltage input AC range | ±10 V max. |
| Common-mode voltage range | −50 to +50 V |
| Input impedance | 200 kΩ |
| Current input DC range | 0 to 25 mA |
| Current input AC range | ±8 mA max. |
| Analog input frequency range | DC to 60 kHz (−3 dB) |
| Processing range without integration | 0.1 Hz to 10 kHz |
| Processing range with integration | 2.5 Hz to 10 kHz |
| Amplitude accuracy | ±1% of full-scale |
| Linearity error | <±1% |
| Equivalent input noise | <200 µV RMS |
| Alarm scanning interval | 100 ms max. |
| Output impedance | 50 Ω (later hardware); verify exact revision |
| Supply voltages | +5 VDC and ±12 VDC |
| Consumption from +5 VDC | 12.5 W typical + 1 W per powered sensor |
| Consumption from ±12 VDC | 2.5 W max. |
| Sensor voltage supplies | +27.2 V, −27.2 V or +15.0 V, each ±5% |
| Operating temperature | −25 to 65°C |
| Storage temperature | −40 to 85°C |
| Dimensions (H × W × D) | 262 × 20 × 187 mm |
| Approximate weight | 0.40 kg |
Use the installed-unit nameplate and current Vibro-Meter documentation as the final references before approving a replacement.
Vibro-Meter VM600 MPC4 200-510-076-114 is a Machinery Protection Card used within VM600 Machinery Protection System.
Vibro-Meter VM600 MPC4 200-510-076-114 provides the documented four-channel machinery protection module function for the matching Vibro-Meter control-system configuration.
Vibro-Meter VM600 MPC4 200-510-076-114 is associated with VM600 Machinery Protection System and should be matched to the installed platform.
Vibro-Meter VM600 MPC4 200-510-076-114 is identified as a Four-Channel Machinery Protection Module.
For Vibro-Meter VM600 MPC4 200-510-076-114, confirm dynamic inputs (4 per MPC4 card) together with the complete identification.
Vibro-Meter VM600 MPC4 200-510-076-114 should not be substituted until the part number, revision, physical configuration and installed-system requirements are verified.
Check Vibro-Meter VM600 MPC4 200-510-076-114 for the exact part number, revision, connector layout, mounting, electrical configuration and application before ordering.
Technical information for Vibro-Meter VM600 MPC4 200-510-076-114 should be checked against the installed nameplate and current official Vibro-Meter documentation.
We can supply Vibro-Meter VM600 MPC4 200-510-076-114 in 100% original-new condition with factory seal and provide a 1-year warranty, subject to stock confirmation.
Send the model, complete identification, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Product identification and application information should be confirmed against the exact installed unit and current official Vibro-Meter documentation before ordering.
