Woodward 2301A 9907-014 EU-Compliant Forward-Acting Speed Control
2301A 9907-014
EU-Compliant Forward-Acting Speed Control · Electronic Prime-Mover Speed Control for Woodward 2301A Speed Control Series
Lifecycle note: Use the unit nameplate and current Woodward documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275EU-Compliant Forward-Acting Speed Control · Woodward 2301A Speed Control Series
Woodward 2301A 9907-014 is the low-voltage, forward-acting, EU Directive compliant standard speed-control variant identified in Woodward manual 82020. The controller regulates the speed or load of compatible diesel and gas engines or steam and gas turbines.
Woodward 2301A 9907-014 operates from 10–40 Vdc and works with an external magnetic pickup and proportional actuator. Isochronous control maintains constant prime-mover speed, while externally wired droop can support operation against an infinite bus or parallel prime movers.
Four internal switch-selectable MPU frequency ranges—500–1500, 1000–3000, 2000–6000, and 4000–12000 Hz—allow Woodward 2301A 9907-014 to be matched to the sensing gear and rated speed. Only one range switch is selected for the installed application.
Before installing Woodward 2301A 9907-014, verify the 10–40 Vdc supply, forward-acting actuator, MPU frequency at cranking and rated speed, terminal wiring, shielding, linkage travel, gain, reset, speed setting and external droop arrangement against the original commissioning data.
| Manufacturer | Woodward |
|---|---|
| Model | 2301A 9907-014 |
| Product type | Electronic Prime-Mover Speed Control |
| System family | Woodward 2301A Speed Control Series |
| Supply voltage | 10–40 Vdc |
| Control action | Forward acting |
| Configuration | Standard speed control |
| Compliance identifier | EU Directive compliant part number |
| Selectable speed ranges | 500–1500, 1000–3000, 2000–6000, or 4000–12000 Hz |
| Required system elements | MPU speed sensor and proportional actuator |
Use the installed-unit nameplate, current Woodward documentation and approved site engineering records as the final references.
Woodward 2301A 9907-014 is the 10–40 Vdc, standard forward-acting 2301A speed-control variant listed as EU Directive compliant. The complete part number must be retained because supply range, action direction and special features differ across the 2301A family.
Woodward 2301A 9907-014 can regulate compatible diesel or gas engines and steam or gas turbines. Application approval still depends on the actuator, speed-sensing gear, operating mode, fuel or steam linkage and the prime mover manufacturer’s control requirements.
Select one internal frequency-range switch for Woodward 2301A 9907-014 after calculating MPU frequency from gear teeth and rotational speed. The available ranges are 500–1500, 1000–3000, 2000–6000 and 4000–12000 Hz; do not select multiple ranges.
Confirm the 10–40 Vdc polarity and source, MPU signal wiring, actuator polarity, shield termination, minimum-fuel contact and optional auxiliary or synchronizer circuits for Woodward 2301A 9907-014. Follow manual 82020 and the original panel drawings before energizing the control.
Commission Woodward 2301A 9907-014 by verifying the selected speed range, rated-speed setting and actuator direction before adjusting gain and reset for the fastest stable response. Test overspeed protection independently and keep emergency shutdown capability available during the initial start.
Woodward 2301A 9907-014 is primarily a speed control; isochronous load sharing requires a compatible external Woodward load sensor or engineered accessory. Droop operation can support parallel operation, but sensing, droop potentiometer wiring and system coordination must match the installed design.
A migration to Woodward 2301A 9907-014 must compare supply voltage, forward or reverse action, actuator current, MPU range, terminal assignments and external speed or droop devices. A similar 2301A enclosure does not establish electrical or functional interchangeability.

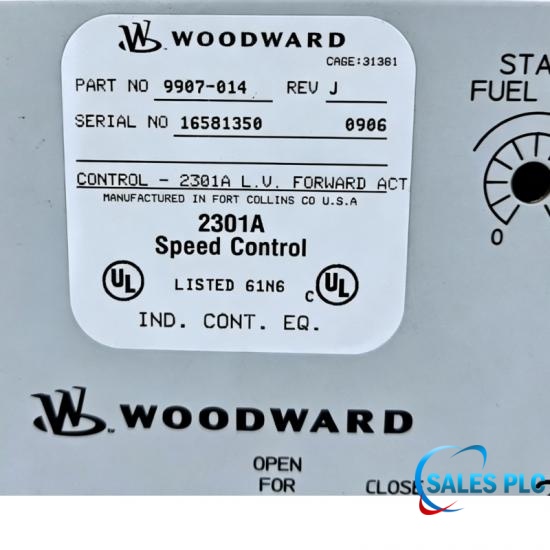

Order Woodward 2301A 9907-014 using the full part number, revision letter and serial number from the enclosure nameplate. Also provide supply voltage, actuator type and current, speed range, prime-mover application and photographs of terminal wiring to prevent a configuration mismatch.
Woodward manual 82020 covers Woodward 2301A 9907-014 identification, speed-range selection, installation, wiring, calibration and troubleshooting. Use the current official revision together with the unit nameplate and site commissioning records as the controlling references.
Send the complete model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
