Woodward 2301A 9907-018 Forward-Acting Load Sharing and Speed Control
2301A 9907-018
Forward-Acting Load Sharing and Speed Control · Electronic Load Sharing and Speed Controller for Woodward 2301A LSSC 9905/9907 Series
Lifecycle note: Use the unit nameplate and current Woodward documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Forward-Acting Load Sharing and Speed Control · Woodward 2301A LSSC 9905/9907 Series

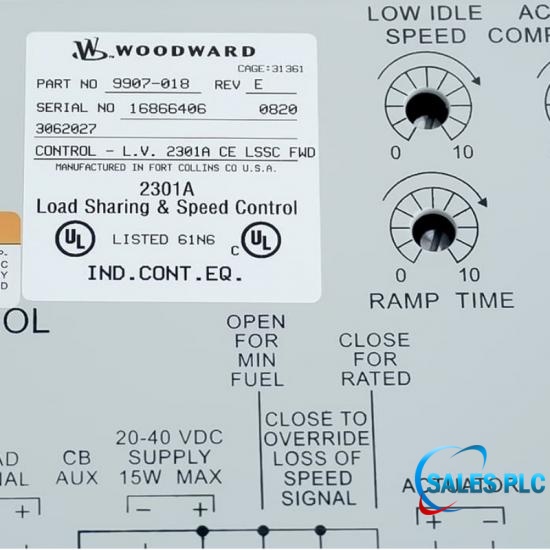

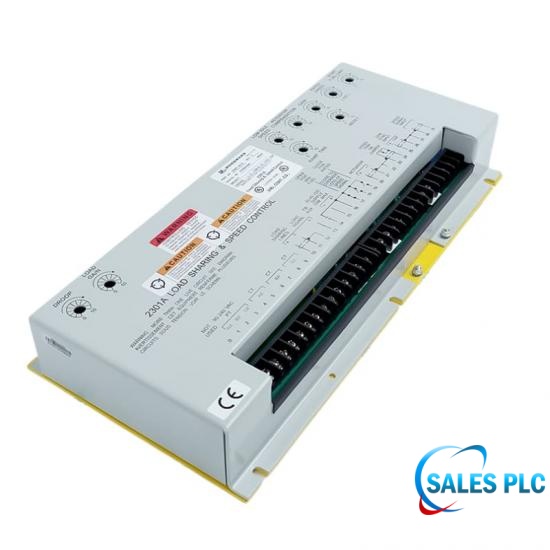

Woodward 2301A 9907-018 is a low-voltage 2301A Load Sharing and Speed Control for generator prime movers. Official manual 82389 identifies this part as a 20–40 Vdc, forward-acting model with a 0–200 mA output for a single actuator and an adjustable deceleration ramp.
Woodward 2301A 9907-018 combines speed regulation with generator load sensing and Woodward load-sharing-line functions. The control can operate isochronously on an isolated bus, in droop against an infinite bus, or in an engineered base-load or process-control arrangement.
Selectable MPU frequency ranges cover 500–1500, 1000–3000, 2000–6000 and 4000–12000 Hz. Woodward 2301A 9907-018 requires compatible potential- and current-transformer signals, a proportional actuator, correct phase relationships and a stable 20–40 Vdc source with at least 15 W capacity.
Replacement commissioning must preserve the actuator direction, current range, CT/PT ratios and phases, load-sharing-line polarity, speed range, ramp settings, gain, reset and droop configuration. Verify all field wiring and protection before starting the prime mover with Woodward 2301A 9907-018.
| Manufacturer | Woodward |
|---|---|
| Model | 2301A 9907-018 |
| Product type | Electronic Load Sharing and Speed Controller |
| System family | Woodward 2301A LSSC 9905/9907 Series |
| Supply voltage | 20–40 Vdc |
| Actuator output | 0–200 mA |
| Control action | Forward acting |
| Actuator arrangement | Single actuator |
| Deceleration ramp | Included |
| Minimum power capacity | 15 W |
| Selectable speed ranges | 500–1500, 1000–3000, 2000–6000, or 4000–12000 Hz |
Use the installed-unit nameplate, current Woodward documentation and approved site engineering records as the final references.
Official Woodward manual 82389 identifies Woodward 2301A 9907-018 as a 2301A Load Sharing and Speed Control. The model is a 20–40 Vdc, forward-acting LSSC for one 0–200 mA actuator, not a generic full-authority controller.
Woodward 2301A 9907-018 supports compatible generator prime movers requiring speed regulation and load sharing. Isochronous isolated-bus, droop parallel, base-load and process-control applications require the appropriate CT/PT sensing, load-sharing network and external control accessories.
Woodward 2301A 9907-018 is listed for a single, forward-acting actuator with a 0–200 mA control output. Confirm actuator coil resistance, linkage direction, travel, oil pressure where applicable and fail-safe behavior before connecting or replacing the controller.
Verify CT ratios, PT voltage, phase rotation, polarity and burden against the original generator drawings before energizing Woodward 2301A 9907-018. Never open a live CT secondary, and confirm load-signal phasing before enabling load sharing or base loading.
Set the correct MPU range and rated speed, then verify start-fuel, ramp, gain, reset and droop settings for Woodward 2301A 9907-018. Prove independent overspeed shutdown and observe actuator response before applying generator load or closing a breaker.
Woodward 2301A 9907-018 measures generator load through CT/PT circuits and exchanges the engineered Woodward load-sharing signal with compatible controls. Correct line polarity, common references, droop settings and compatible system components are essential for proportional load division.
Compare supply voltage, actuator current and direction, CT/PT inputs, terminal wiring, load-sharing network, speed range and ramp functions before migrating to Woodward 2301A 9907-018. Similar 2301A part numbers can represent materially different electrical configurations.
Provide the complete Woodward 2301A 9907-018 part number, revision and serial number, plus actuator details, CT/PT ratios, supply voltage, prime-mover type, speed range and application mode. Nameplate and wiring photographs are useful for validating the exact spare.
Woodward manual 82389 covers Woodward 2301A 9907-018 model identification, electrical inputs, load-sharing operation, installation, adjustment and troubleshooting. Use the current official revision and the installed commissioning file before changing settings or approving a replacement.
Send the complete model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
