8200-1300
505D Low-Voltage DC Steam Turbine Control · Digital Steam Turbine Controller for Woodward 505D Control Platform
Lifecycle note: Use the unit nameplate and current Woodward documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275505D Low-Voltage DC Steam Turbine Control · Woodward 505D Control Platform

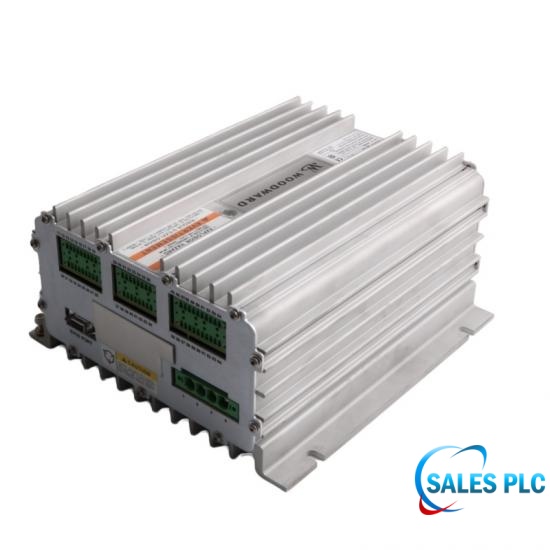

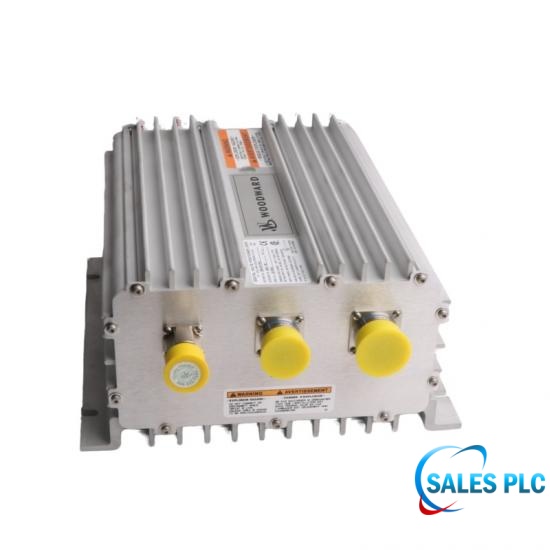

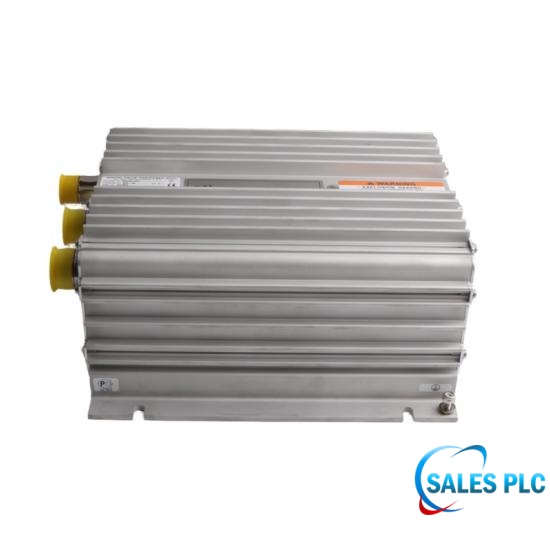

Woodward 8200-1300 is the 505D low-voltage standard steam-turbine control identified by Woodward as an 18–32 Vdc model. It is designed for turbines using a single actuator or split-range actuator arrangement.
Woodward 8200-1300 provides configurable speed and load control, start sequencing, critical-speed avoidance, alarm and first-out trip functions. Configuration, Service and Run operating modes separate application setup, approved adjustment and normal turbine operation.
The 505D platform can exchange operating data with plant control systems through a serial Modbus port and two Ethernet ports. The serial interface supports RS-232 or RS-485 with ASCII or RTU transmission, subject to the installed communication design.
Commissioning Woodward 8200-1300 requires verification of the 18–32 Vdc supply, speed inputs, actuator loops, field I/O, Ethernet and serial settings, protection logic, firmware, saved application and independent overspeed system.
| Manufacturer | Woodward |
|---|---|
| Model | 8200-1300 |
| Product type | Digital Steam Turbine Controller |
| System family | Woodward 505D Control Platform |
| Exact configuration | 505D LV-STD steam turbine control |
| Power input | 18–32 Vdc |
| Application | Steam turbine with single or split-range actuators |
| Operating modes | Configuration, Service and Run |
| Communications | Serial Modbus plus two Ethernet ports |
| Serial interface | RS-232 or RS-485; ASCII or RTU Modbus |
| Protection features | First-out trips, alarms and critical-speed avoidance |
| Installation check | Supply, I/O, firmware, configuration and certifications |
Use the installed-unit nameplate, current Woodward documentation and approved site engineering records as the final references.
Woodward 8200-1300 is the 505D LV-STD digital steam-turbine controller for compatible single-actuator or split-range actuator applications, using an 18–32 Vdc power input.
Woodward 8200-1300 uses an 18–32 Vdc supply. Verify polarity, capacity, grounding, fuse or breaker protection, terminal assignments and the exact nameplate before energizing the controller.
Woodward 8200-1300 provides Configuration Mode for application setup, Service Mode for approved adjustments and Run Mode for normal turbine operation from start-up through shutdown.
Woodward 8200-1300 provides a serial Modbus port supporting RS-232 or RS-485 with ASCII or RTU, plus two Ethernet ports. Match addressing, protocol, wiring and network settings.
Woodward 8200-1300 supports configurable speed and load control, automatic start sequencing, critical-speed avoidance, alarms, first-out trips and application-dependent auxiliary functions when correctly programmed.
Verify Woodward 8200-1300 speed sensors, actuator outputs, analog and discrete signals, relay circuits, shielding, grounding and fail-safe states against the approved site drawings before enabling control.
No. Woodward 8200-1300 is the LVDC version, while 8200-1301 is the AC/DC version. Confirm power supply, hardware, approvals, firmware, terminals and application configuration before substitution.
Commission Woodward 8200-1300 by validating supply, sensing polarity, actuator direction and range, protection inputs, trip tests, sequencing, network communication, saved settings and independent overspeed protection.
Specify Woodward 8200-1300 with its complete nameplate, revision, serial number, 18–32 Vdc requirement, turbine and actuator arrangement, firmware, application backup, approvals, quantity and destination.
Send the complete model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
