8200-188
125 VDC DVP Classic Digital Valve Positioner · Digital Valve Positioner Driver for Woodward DVP Classic Platform
Lifecycle note: Use the unit nameplate and current Woodward documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275125 VDC DVP Classic Digital Valve Positioner · Woodward DVP Classic Platform

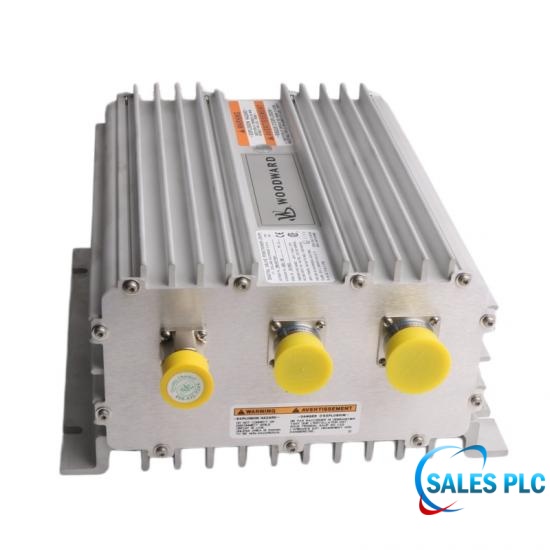

Woodward 8200-188 is the 125 VDC DVP Classic configuration listed with an IP30 enclosure, terminal-block control input and circular actuator-output connector. The Digital Valve Positioner drives compatible Woodward electric valves and actuators from a turbine or plant control demand signal.
Woodward 8200-188 supports precise closed-loop positioning of limited-angle-torque or brushless-DC actuator motors using resolver position feedback. The DVP architecture can accept configured analog or digital demand sources depending on the installed hardware and software configuration.
The DVP platform provides high-speed valve control and can use Woodward identification-module information on compatible valves for configuration support. Woodward 8200-188 must still be matched to the valve or actuator motor, resolver arrangement, demand source, communication option and certified installation design.
Before commissioning Woodward 8200-188, verify the 125 Vdc supply, IP30 installation environment, terminal-block input wiring, circular output cable, protective grounding, valve travel limits, feedback direction and exact configuration file. Only qualified personnel should modify DVP parameters.
| Manufacturer | Woodward |
|---|---|
| Model | 8200-188 |
| Product type | Digital Valve Positioner Driver |
| System family | Woodward DVP Classic Platform |
| Driver class | 125 VDC DVP Driver Classic |
| Enclosure | IP30 |
| Control input connection | Terminal block |
| Actuator output connection | Circular connector |
| Supported motor types | LAT or BLDC actuator motors |
| Position feedback | Resolver feedback from valve or actuator |
| Product specification | Woodward 03376 |
Use the installed-unit nameplate, current Woodward documentation and approved site engineering records as the final references.
Woodward 8200-188 is the 125 VDC DVP Classic model with an IP30 enclosure, terminal-block control input and circular actuator-output connector. Adjacent DVP part numbers use different enclosure protection, power input or connection arrangements and are not automatically interchangeable.
Woodward 8200-188 is designed for compatible Woodward electric valves and actuators using LAT or BLDC motors with resolver feedback. Confirm the exact valve identification, motor rating, resolver channels, output cable and approved DVP configuration before connection.
The IP30 enclosure of Woodward 8200-188 requires a protected installation environment or suitable cabinet. Check ambient conditions, cooling clearance, vibration, hazardous-location requirements, grounding and separation from high-energy wiring before selecting the mounting location.
Woodward 8200-188 uses terminal-block connections for the control-side input and a circular connector for the actuator output. Verify the demand-signal type, communication option, cable assembly, shield terminations and connector keying against the unit drawings before wiring.
Commission Woodward 8200-188 by confirming the correct configuration file, valve identification, resolver direction, commanded versus actual position, current limits, travel limits, shutdown response and fault reporting. Test movement under controlled conditions before releasing the valve to process control.
Woodward 8200-188 uses the applicable Woodward DVP service software and hardware interface for monitoring, configuration and troubleshooting. Only load files that match the part number, serial number, firmware, valve and actuator because an incorrect file can create unsafe motion.
Do not assume direct migration from Woodward 8200-188 to another DVP. Compare supply voltage, enclosure, connectors, demand interface, communication, motor output, resolver feedback, valve configuration files, certifications and cabinet wiring before approving a replacement path.

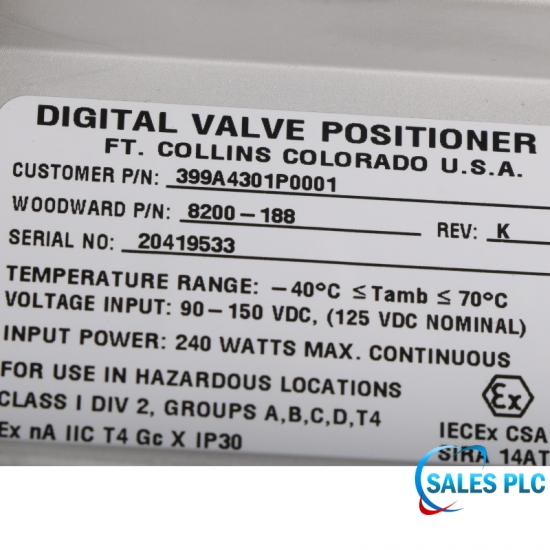

Specify Woodward 8200-188 with the revision and serial number, valve or actuator part number, supply voltage, input interface, output cable, enclosure environment and existing configuration-file identification. Provide nameplate and connector photographs to verify the exact 125 VDC IP30 variant.
Woodward catalog 25182 explicitly lists Woodward 8200-188, while product specification 03376 describes DVP functions and options. The applicable DVP manual and unit configuration file provide installation and commissioning details for the installed hardware revision.
Send the complete model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
