DI803
Digital Input Module · 3BSE022362R1 · S800L I/O
Lifecycle note: Confirm the complete installed S800L I/O configuration before replacement or migration.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86-18020776786Digital Input Module · S800L I/O

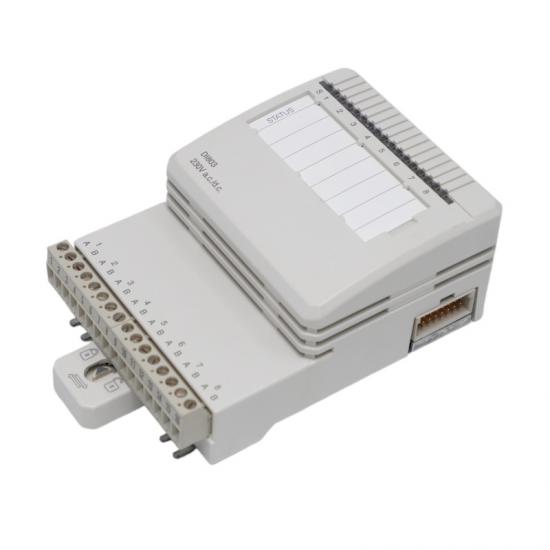

ABB DI803, complete order code 3BSE022362R1, is an eight-channel 230 V AC / 220 V DC digital input module for the S800 I/O range. ABB specifies current-sinking inputs with individually galvanically isolated channels. The official data sheet lists an AC input range of 164 to 264 V AC with 7.6 mA input current at 230 V AC, and a DC input range of 175 to 275 V DC with 1.6 mA input current at 220 V DC. Confirm the installed field-signal type, voltage level, channel allocation and exact article number before a replacement is selected.
ABB identifies voltage supervision of the field-input power, input-status indicators, signal filtering and process connection through detachable connectors. The official record also lists a net depth of 58.5 mm, height of 102 mm, width of 86.1 mm and net weight of 0.3 kg, plus RoHS and WEEE information. These details support correct identification, but they do not replace a full installation review. Compare the AC or DC circuit requirements, individual channel isolation, terminal wiring and controller configuration with the applicable S800 I/O documentation before installation. Work should be performed by qualified personnel with power isolated.
| Manufacturer | ABB |
|---|---|
| Model / order code | DI803 / 3BSE022362R1 |
| Product family | S800L I/O |
| Product type | I-O_Module |
| Channel type | DI |
| Number of input channels | 8 |
| Signal specification | 230 V AC / 220 V DC |
| AC input range | 164–264 V AC |
| AC input current | 7.6 mA at 230 V AC |
| DC input range | 175–275 V DC |
| DC input current | 1.6 mA at 220 V DC |
| Signal type | Current sinking |
| Channel isolation | Individually galvanic isolated channels |
| Net depth / length | 58.5 mm |
| Net height | 102 mm |
| Net width | 86.1 mm |
| Net weight | 0.3 kg |
| RoHS information | Following EU Directive 2011/65/EU |
| WEEE category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of batteries | 0 |
Confirm the complete installed ABB configuration before replacement, repair or migration.

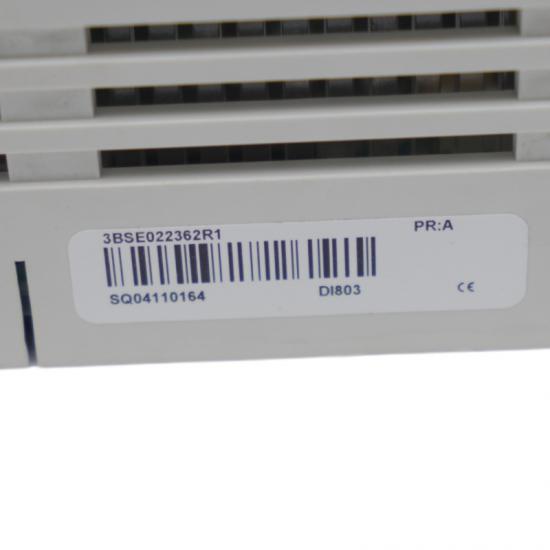

Check the installed-unit nameplate for the DI803 model and complete 3BSE022362R1 order code. Confirm the controller family, channel or signal configuration, terminal wiring and installed hardware revision before ordering. Provide a clear nameplate photo with the quotation request.
ABB identifies DI803 3BSE022362R1 as digital input module hardware for the S800L I/O product family. The exact installed configuration must be matched before replacement.
ABB specifies DI803 3BSE022362R1 as an 8-channel digital input module for 230 V AC or 220 V DC, with individually isolated current-sinking channels. Official ABB hardware data states 164–264 V AC and 175–275 V DC input ranges.
No. Compatibility must be verified from the complete order code, installed controller generation, signal requirements, termination or connector arrangement, field wiring and application program. Do not treat a similar designation as a direct replacement.
Use is dependent on the installed ABB S800L I/O configuration. Confirm the complete order code, controller generation, field signals and wiring before applying DI803 as a replacement.
Installation must follow the applicable ABB documentation for the exact installed system. Isolate power before wiring; match field signals, terminals, channel assignment and mechanical installation to the installed configuration. Work should be carried out by qualified personnel.
Availability must be checked against current warehouse records. Please provide the required quantity and a clear nameplate photo so the complete code, revision, condition and dispatch date can be confirmed before quotation.
The applicable warranty depends on the condition of the offered unit and the terms stated in the quotation. The offer will identify whether the unit is new, surplus unused, refurbished or used and will state the applicable warranty period.
The unit will be inspected and protected against moisture, static electricity and impact before shipment. Packaging method, dispatch date, courier and any customer shipping-account instructions are confirmed according to the actual order and destination.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB official product information. Final suitability must be verified against the exact installed unit and official documentation.
