PFB1224UHE
24 VDC High-Performance Axial Cooling Fan · High-performance 120 mm DC brushless axial fan rated for 24 VDC, 5500 rpm and 252.9 CFM airflow in forced-air equipment-cooling applications.
Lifecycle note: Use the unit nameplate and current Delta Electronics documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827524 VDC High-Performance Axial Cooling Fan · Delta PFB DC Axial Fan Series

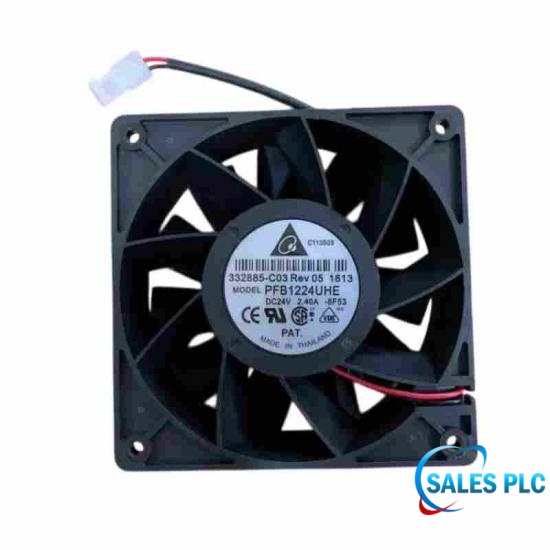

Delta Electronics PFB1224UHE is a high-performance 24 VDC brushless tubeaxial fan for forced-air cooling in cabinets, power electronics and other equipment with high airflow and static-pressure requirements.
The 120 x 120 x 38 mm fan is rated at 5500 rpm and delivers 252.9 CFM airflow with 351.7 Pa static pressure. Its two-wire connection uses red for positive and black for negative, while a locked-rotor current-shutdown function protects the fan under a stalled condition.
For replacement, verify the complete PFB1224UHE model, 24 VDC supply range, 48 W power budget, connector or lead termination, airflow direction, mounting-hole pattern, guard clearance and system noise requirement.
| Manufacturer | Delta Electronics |
|---|---|
| Model | PFB1224UHE |
| Product type | DC brushless tubeaxial fan |
| Frame size | 120 x 120 x 38 mm |
| Rated voltage | 24 VDC |
| Operating voltage range | 14 to 26.5 VDC |
| Rated current | 2.00 A |
| Rated power | 48 W |
| Rated speed | 5500 rpm |
| Airflow | 252.9 CFM; 7.08 m3/min |
| Static pressure | 1.412 in H2O; 351.7 Pa |
| Acoustic noise | 66.5 dB(A) |
| Bearing system | Ball bearing |
| Lead wires | Two-wire; red positive and black negative; UL 1007 AWG 24 |
| Operating temperature | -10 to +60 degrees C |
| Life expectancy | 70,000 hours at 40 degrees C and 15 to 65% RH |
| Rotation | Clockwise when viewed from the nameplate side |
| Protection function | Locked-rotor current shutdown |
| Construction | Open type |
Delta Electronics PFB1224UHE is a 24 VDC brushless tubeaxial fan that provides high-airflow forced cooling for equipment requiring a 120 x 120 x 38 mm fan frame.
Delta Electronics PFB1224UHE is rated at 24 VDC, 2.00 A and 48 W, with a documented operating-voltage range of 14 to 26.5 VDC.
Delta Electronics PFB1224UHE is rated for 252.9 CFM airflow and 351.7 Pa static pressure at 5500 rpm, subject to the documented test conditions.
Delta Electronics PFB1224UHE uses a two-wire connection with the red lead positive and the black lead negative, and the equipment supply and connector termination must support its rated current.
Delta Electronics PFB1224UHE is specified for operation from -10 to +60 degrees C and has a documented life expectancy of 70,000 hours at 40 degrees C and 15 to 65% relative humidity.
Another 120 mm fan should not replace Delta Electronics PFB1224UHE until voltage, current, power, thickness, airflow, pressure, rotation, lead termination, mounting and acoustic limits are confirmed.
Provide the complete Delta Electronics PFB1224UHE model, quantity, condition requirement, lead or connector details, airflow direction, mounting constraints and destination.
Send the complete model, revision, quantity, destination and nameplate photo so the exact hardware identity can be checked.
