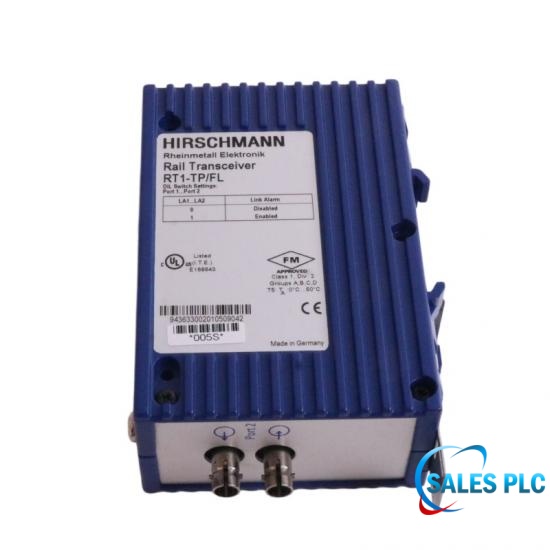

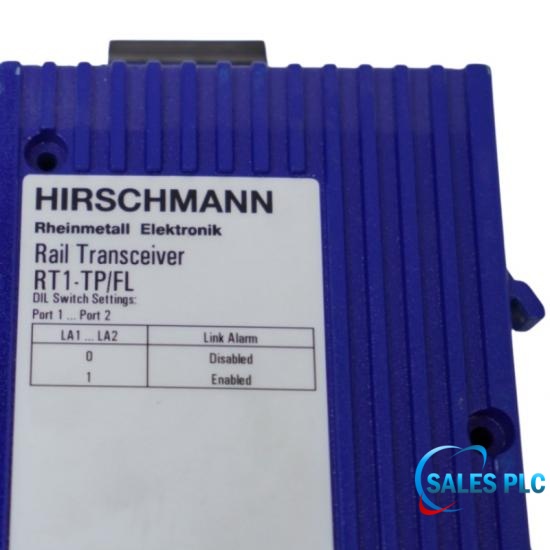

Hirschmann RT1-TP/FL Ethernet Media Converter

Technical Specifications

• Industrial Ethernet Rail Transceiver (Media Converter)
• 10BASE-T ↔ 10BASE-FL multimode fiber
• DIN rail mounting
• Integrated thermal fuse
• Type IP30 construction

The RT1-TP/FL operates from a redundant 18–32 V DC safety extra-low-voltage power supply and features low power consumption together with integrated LED indicators for power, link status, data activity, and collision monitoring. The rugged metal enclosure, IP30 protection rating, and DIN rail installation are intended for reliable operation inside industrial cabinets where dependable network communication is required.Its media conversion function makes it suitable for factory automation systems, machine control networks, process automation installations, and other industrial communication systems where long-distance Ethernet transmission or improved electrical isolation is required.

Expertise Overview

Technical Highlights

• Operates from a redundant 18–32 V DC power supply to improve system availability in industrial control applications.

• Incorporates store-and-forward communication architecture for dependable data transfer between connected Ethernet devices.

• The compact IP30 metal enclosure is intended for protected industrial environments and supports long-term operation inside electrical cabinets.

• Fiber-optic communication provides electrical isolation between network segments and helps reduce the influence of electromagnetic interference in industrial installations.

Technical FAQ

Q: What power supply is required?
A: The RT1-TP/FL operates from 18–32 V DC SELV and supports redundant DC power inputs for improved system availability. Typical current consumption is approximately 80–90 mA at 24 VDC.

Q: Does the RT1-TP/FL support redundant power?
A: Yes. The unit is equipped with redundant DC power inputs, allowing operation from two independent power sources to improve network reliability.

Q: Does the RT1-TP/FL require software configuration?
A: No. The RT1-TP/FL performs Ethernet media conversion automatically and does not require network configuration software for normal operation. After power and network connections are completed, the unit begins converting Ethernet traffic between the copper and fiber interfaces.

Q: How is the RT1-TP/FL installed?
A: The device is designed for 35 mm DIN rail mounting inside industrial control cabinets. Its compact housing allows straightforward installation in industrial automation systems.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
