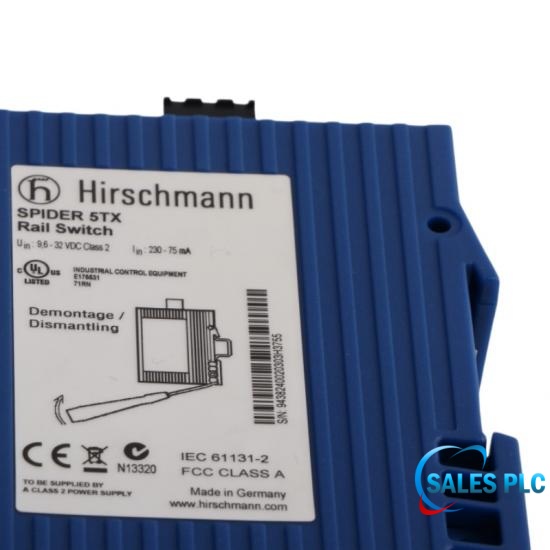

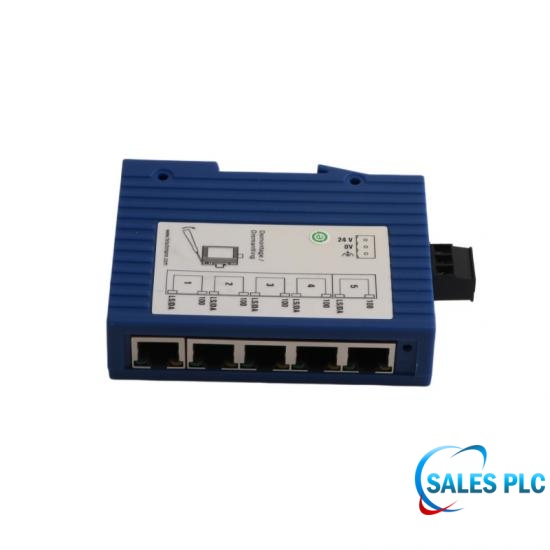

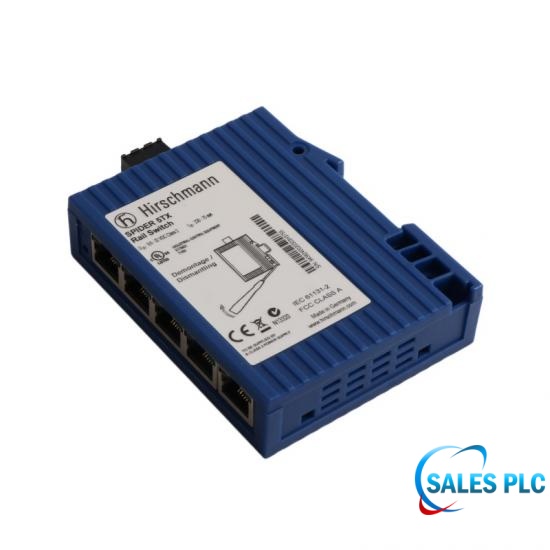

The Hirschmann SPIDER 5TX is an unmanaged industrial Ethernet switch with five 10/100BASE-TX RJ45 ports for reliable Fast Ethernet communication in industrial automation networks. In Stock Original New Unused.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales8@amikon.cnWhatsapp/Mob:
+86 18030235313Technical Specifications
• 10/100BASE-TX RJ45 twisted pair ports
• 35 mm DIN rail mounting
• Industrial compact enclosure for DIN rail installation
• Topology Support Line and star topology
• Type IP30 construction
The Hirschmann SPIDER 5TX is an unmanaged industrial Ethernet switch designed for simple and reliable Ethernet network expansion in industrial automation environments. It supports Ethernet and Fast Ethernet communication with store-and-forward switching technology, providing stable data transmission between connected industrial devices. The switch is equipped with five 10/100BASE-TX RJ45 ports, allowing direct connection of controllers, industrial PCs, field devices, and other Ethernet-based equipment.
Manufacturer:
Hirschmann
Operating voltage
9,6 V DC - 32 V DC
Operating temperature
0 °C to +60 °C
Storage/transport temperature
-40 °C to +70 °C
Relative humidity (non-condensing)
10% to 95%
Counliy of origin:
Germany
Dimensions (W x H x D)
25 mm x 114 mm x 79 mm
Mounting
DIN Rail 35 mm
Weight
113 g
Power consumption
Max. 2,2 W 7,5 Btu (IT)/h at 24 V DC
Protection class
IP30
Expertise Overview
The Hirschmann SPIDER 5TX is developed for industrial Ethernet communication in applications where reliable network connectivity and uncomplicated installation are required. As an unmanaged Ethernet switch, it provides a straightforward method of connecting automation devices without additional software configuration or network management. The switch is intended for industrial environments that demand dependable communication between Ethernet-enabled equipment. The compact housing and 35 mm DIN rail mounting design make the SPIDER 5TX suitable for installation inside industrial control cabinets, machine enclosures, and automation panels. Operation from a 9.6 to 32 V DC power supply allows the switch to be integrated into standard industrial control systems using 24 V DC power sources. LED indicators provide local status information for power, link condition, transmission activity, and network speed, supporting routine inspection during operation.
Technical Highlights
• Includes auto-negotiation to automatically select the highest supported transmission speed and communication mode for each connected device.
• Features automatic MDI/MDI-X crossover detection, eliminating the need to select different Ethernet cable types during installation.
• Provides automatic polarity correction, simplifying network commissioning and reducing installation time.
• Operates from a 9.6 V DC to 32 V DC power supply, making it suitable for standard 24 V DC industrial control systems.
Technical FAQ
Q: What diagnostic functions are available on the SPIDER 5TX?
A: The switch provides LED diagnostics for monitoring operating status, including power supply status and Ethernet link/activity information.
Q: How is the SPIDER 5TX installed?
A: The SPIDER 5TX is designed for 35 mm DIN rail mounting. Its compact housing allows installation inside industrial control cabinets and automation equipment enclosures.
Q: What protection rating does the SPIDER 5TX have?
A: The SPIDER 5TX has an IP30 protection rating, providing protection against solid objects while being intended for installation inside protected industrial environments such as control cabinets.
Q: What switching technology does the SPIDER 5TX use?
A: The switch uses store-and-forward switching technology, which receives and checks Ethernet frames before forwarding them to the destination port. This helps provide stable communication within industrial Ethernet networks.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
