FEIP-21
Reference · 3AXD50000192793
Configuration note: Confirm the exact installed configuration before replacement or migration.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786EtherNet/IP adapter module · 3AXD50000192793
ABB FEIP-21 3AXD50000192793 is an EtherNet/IP adapter module for installation in the option slot of a compatible ABB drive control unit. ABB specifies EtherNet/IP communication over 10BASE-TX or 100BASE-TX Ethernet with auto-negotiation and Auto-MDIX. The module has two RJ-45 connectors, X1 for the Ethernet connection and X2 for network chaining, and supports the documented bus, star and ring topologies. It is selected when the installed drive must be connected to an EtherNet/IP network using the module, firmware and network arrangement approved for that particular ABB drive application.
The official manual specifies an internally terminated network connection, a maximum Ethernet segment of 100 m, half-duplex or full-duplex operation, a minimum requested packet interval of 1 ms and three connections. FEIP-21 receives its 3.3 V DC supply from the drive and is rated IP20; ABB also identifies HOST, MODULE and NETWORK/NET as its three bicolor diagnostic LEDs. Use suitable CAT5e or CAT6 screened Ethernet cable as specified by ABB, then verify the drive control unit, option slot, firmware, network topology, IP configuration and application requirements before commissioning the module.
| Manufacturer | ABB |
|---|---|
| Model / supplied reference | FEIP-21 / 3AXD50000192793 |
| Product type | EtherNet/IP adapter module |
| Installation | Option slot on the drive control unit |
| Protection class | IP20 |
| Power supply | 3.3 V DC ±5%, maximum 400 mA, supplied by the drive |

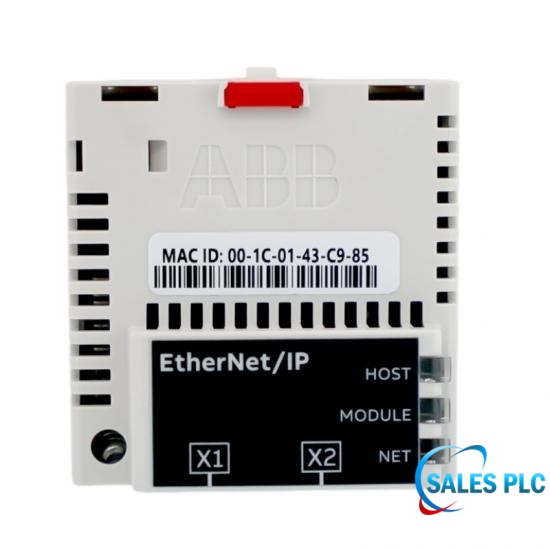

| Indicators | Three bicolor LEDs: HOST, MODULE and NETWORK/NET |

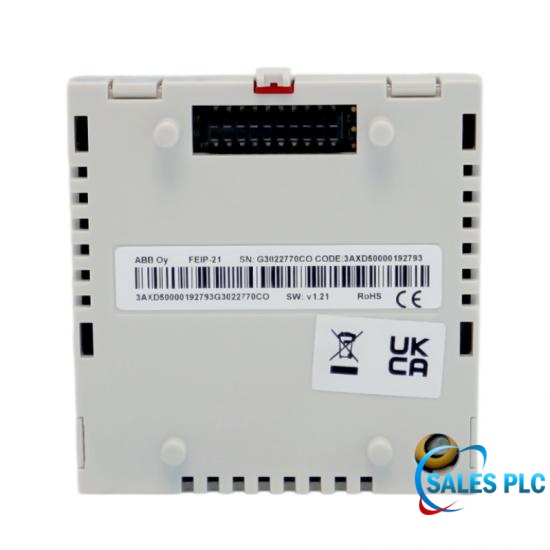

| Drive connector | 20-pin connector to the drive |
| Ethernet standard | IEEE 802.3 and IEEE 802.3u |
| Ethernet medium | 10BASE-TX or 100BASE-TX with auto-negotiation and Auto-MDIX |
| Ethernet cable types | CAT5e/6 S/FTP, S/STP or SF/FTP |
| Ethernet connectors | RJ-45 X1 to Ethernet and RJ-45 X2 for chaining |
| Ethernet termination | Internal |
| Maximum Ethernet segment | 100 m |
| Topology | Bus, star or ring; maximum 50 FEIP-21 nodes in a ring |
| Transfer rate | 10 Mbps or 100 Mbps |
| Duplex operation | Half-duplex or full-duplex |
| Minimum RPI | 1 ms |
| Number of connections | Three |
| Protocol | EtherNet/IP |
| EMC compliance | EN 61800-3:2004 |
| PCB protection | Conformal coated |
Confirm the complete installed configuration and applicable ABB documentation before replacement or migration.

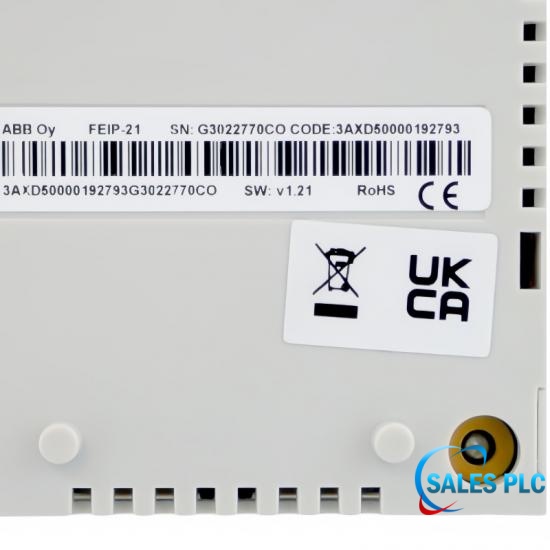

Check the product nameplate for the FEIP-21 model, supplied reference 3AXD50000192793, hardware revision and fitted interface details. Compare these with the installed equipment before ordering.
ABB documentation identifies FEIP-21 as a EtherNet/IP adapter module. Confirm the exact installed configuration before applying it in a drive or control system.
The applicable ABB documentation identifies: EtherNet/IP adapter module; Option slot on the drive control unit; IP20; 3.3 V DC ±5%, maximum 400 mA, supplied by the drive; Three bicolor LEDs: HOST, MODULE and NETWORK/NET. Final suitability depends on the exact installed version and configuration.
Do not assume interchangeability from a similar model. Check the complete nameplate, drive or control-unit version, interfaces, wiring and application before replacement.
Use FEIP-21 only in an ABB drive or control configuration supported by the applicable ABB documentation and the installed equipment configuration.
Follow the ABB manual for the exact version. Isolate power and ensure that mounting, connectors, wiring, shielding and parameter settings are checked by qualified personnel.
The fixed procurement-status panel is retained from the approved template. Provide quantity and a clear nameplate photo so the offered configuration and dispatch details can be confirmed.
The fixed procurement-status panel is retained from the approved template. The quotation will confirm the offered unit condition and applicable warranty terms.
The unit will be checked and protected against static electricity, moisture and impact. Packaging, courier and dispatch details will be confirmed for the order destination.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB FEIP-21 EtherNet/IP Adapter Module User’s Manual. Final suitability must be verified against the exact installed unit and official documentation.
