3009
QorIQ P1021 Module · Triple Modular Redundancy · 256 MB system reference
Lifecycle note: Triconex 3009 is a main processor for Tricon safety systems. Confirm system release, chassis, firmware, processor population and project compatibility before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Main Processor Module · Tricon Safety Systems

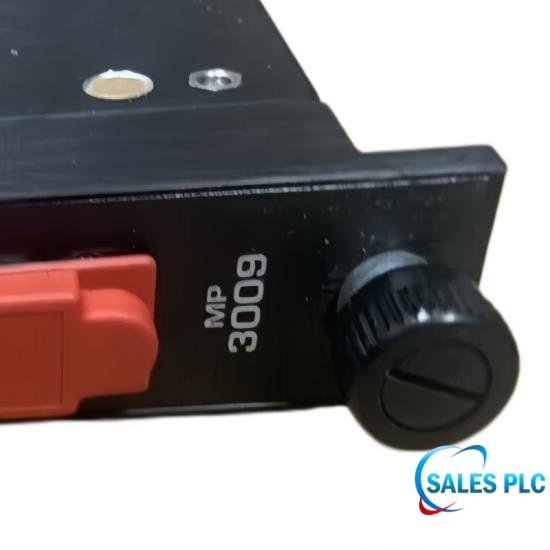

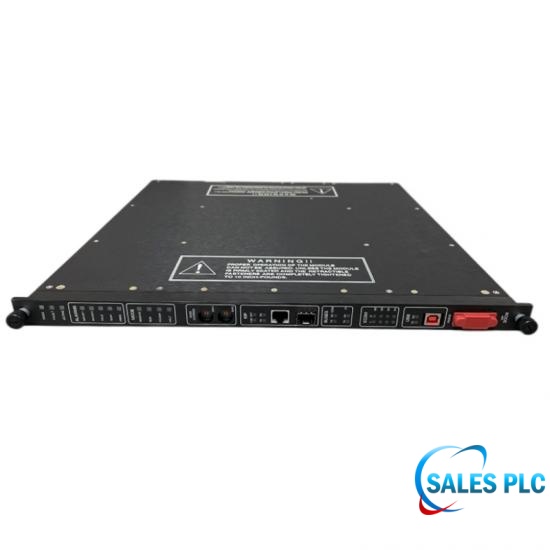

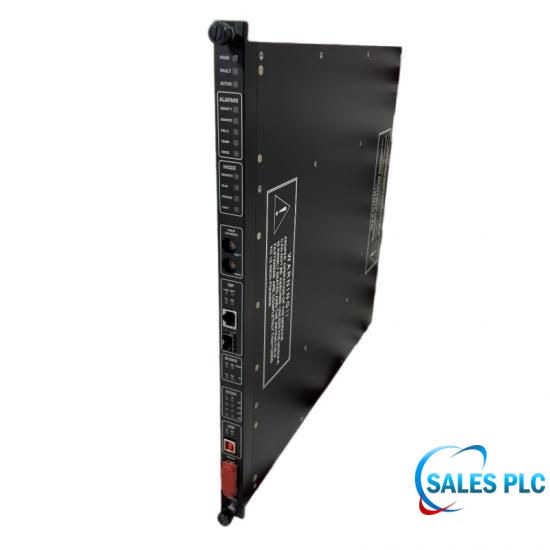

Triconex 3009 is a Main Processor Module engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Module category: Main Processor Module; Supported platform: Tricon v11.x systems; Main processor: QorIQ P1021 dual-core; Processor frequency: 800 MHz. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 3009 |
| Module category | Main Processor Module |
| Supported platform | Tricon v11.x systems |
| Main processor | QorIQ P1021 dual-core |
| Processor frequency | 800 MHz |
| L1 cache | 32 KB |
| L2 cache | 2 MB |
| Application / I/O processor | P1021 |
| DRAM | 256 MB, non-battery-backed |
| SRAM / NVRAM | 2 MB, battery-backed |
| Flash PROM | 128 MB |
| Clock/calendar | Time and date, battery-backed |
| Clock drift | Typical ±2 s/day; maximum ±2.16 s/day |
| TriBus data protection | 32-bit CRC; 32-bit DMA; fully isolated |
| TriBus - 8110 / 8100-1 chassis | 25 Mbps |
| TriBus - 8120E chassis | 1000 Mbps |
| Diagread port | Optically isolated RS-232, DB-9 |
| Diagread isolation | 500 VDC maximum |
| Diagread rate | 115200 bit/s |
| Communication interface | RS-485, 2 Mbps |
| I/O interface | RS-485, 375 Kbps |
| Logic power | 14 W |
| Node address | Set by SW1 / SW0 |
| Controller processor population | Three identical MPs for TMR operation |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Use the same 3009 hardware generation and approved firmware group in all three MP positions. Compare node settings, Tricon release, chassis type and the controlled TriStation project before changing any channel.
Model 8110 and 8100-1 main chassis operate the 3009 TriBus at 25 Mbps; Model 8120E supports 1000 Mbps. The integrator must verify the installed backplane before defining expected performance.
Record 256 MB non-battery-backed DRAM, 2 MB battery-backed SRAM/NVRAM and 128 MB Flash PROM, then confirm hardware and firmware revision from the actual nameplate and diagnostics.
No. A 3009 belongs to the Tricon v11.x generation and must not be treated as a direct model-number substitution. Chassis, controller release, firmware, project conversion and the approved migration procedure must be reviewed.
Capture PASS, ACTIVE, RUN, MAINT and fault indications, TriStation event and diagnostic records, TriBus health, node address and the status of the other two MPs before disturbing the controller.
Verify the full model and revision, connector and fastener condition, battery-related status, node switches, signs of repair or contamination, and traceable serial/nameplate photographs. Electrical testing must follow an approved Tricon service procedure.
A replacement MP must join the existing controller as the correct channel. Incorrect firmware grouping or SW1/SW0 node settings can prevent synchronization or create a configuration mismatch.
Provide controller version, main-chassis model, quantity, installed MP firmware group, required condition, revision constraints, destination and clear photographs of the existing 3009 nameplate.
Confirm all three MPs synchronize without faults, TriBus communication is healthy, application and I/O scans execute correctly, time and SOE functions are stable, and the approved functional-safety validation is complete.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 3009. File size is below 1 MB; verify the exact installed hardware and configuration before use.
