NIDI01
Digital Input Termination Module
Lifecycle note: NIDI01 is installed-base automation hardware. Confirm the complete configuration before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Digital Input Termination Module · INFI 90 / Network 90

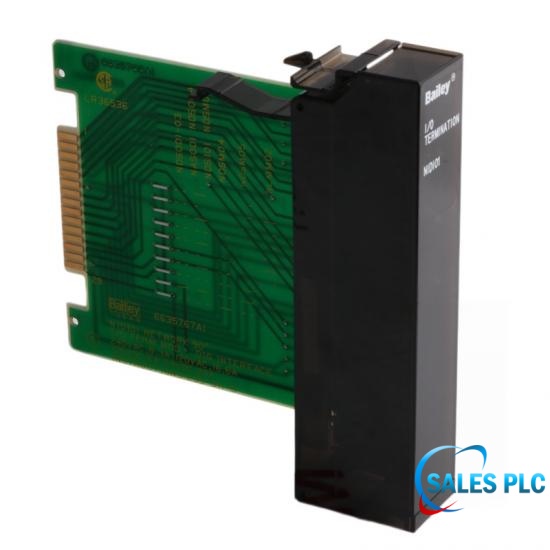

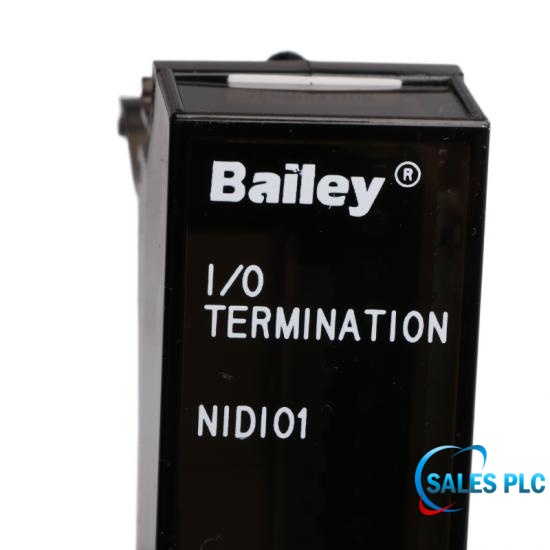

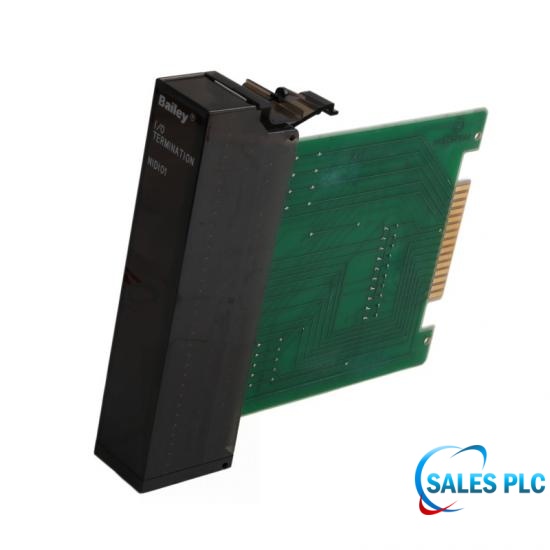

ABB NIDI01 is a Digital Input Termination Module for INFI 90 / Network 90. It supports installed control and maintenance strategies where the exact module identity and approved configuration must remain traceable.
Engineering review should use the published technical identifiers together with the installed revision, rack or termination arrangement, connector mapping, power rails, communication or signal configuration and current site drawings. Similar Bailey or Symphony designations must not be treated as interchangeable without an application-level comparison.
For commissioning and MRO control, isolate the affected equipment, record the pre-change state, inspect connectors and labels, reproduce only approved settings, complete functional tests and update the asset record. Procurement should require clear nameplate photographs, condition disclosure and unit traceability.
| Manufacturer | ABB / Bailey Controls |
|---|---|
| Model | NIDI01 |
| Module type | Digital Input Termination Module |
| System family | INFI 90 / Network 90 |
| Mounting | One standard termination mounting-unit slot |
| Auxiliary supply | 24 VDC when required by connected module |
| Digital input capacity | Up to 16 points |
| Supported IMDSI02 signals | 24 VDC, 125 VDC or 120 VAC |
| Supported IMLMM02 signals | 24 VDC, 125 VDC or 120 VAC |
| IMDSM04 input ranges | 50 mVp-p to 10 Vp-p; 0-6 VDC; 0-27 VDC |
| IMDSM05 digital levels | Up to 24 VDC |
| Surge withstand | IEEE 472-1974 with approved cable |
| Connection cables | NKTU02 / NKTU12 / NKTM01 |
| Operating temperature | 0 to 70 deg C |
NIDI01 is installed-base automation hardware. Confirm the complete system, power, interface and revision details before replacement or migration.
Identify 24 VDC, 125 VDC or 120 VAC from the connected module and drawings.
Record J1-J10 and reproduce only the approved signal configuration.
Use it only for connected-module applications requiring termination power.
Use the original approved cable; NKTM01 is excluded where IEEE 472 compliance is required.
Check every A/B pair and common against the loop drawing before field power.
State slave model, input voltage, cable, mounting unit and jumper configuration.
Check threads, numbering, jumpers, connector pins, bus contact and overheating.
Tag conductors and verify all channel pairs against the database and marshalling records.
Send the model, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
The model-relevant ABB manufacturer extract is linked in the Technical Data section. File size is below 1 MB; verify the exact installed hardware and configuration before use.
