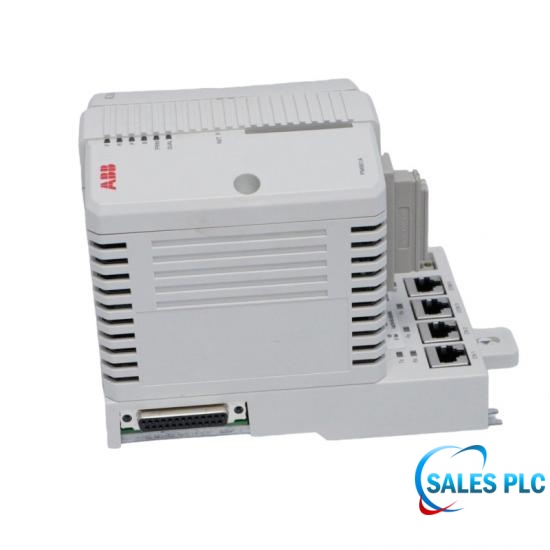

ABB PM856AK01 3BSE066490R1 AC 800M Processor Unit

ABB lists 16 MB memory but 10.337 MB available RAM from 800xA 5.1 FP4. These are different specifications, so an integrator should compare the actual compiled application and operating overhead with available RAM, not allocate the full 16 MB to user code. Check the installed software release before applying these figures.

No. Task count and the minimum supported program cycle time describe separate limits. Establish a scheduling and execution-time budget using the actual application, communication load and engineering-tool diagnostics. The 0.46 ms Boolean benchmark cannot demonstrate that 32 concurrent 1 ms tasks will meet their deadlines.

ABB states that each TP830 base plate has a unique Ethernet address recorded on its identification label. Record that identity with the controller asset and network documentation before replacement. Review any site configuration that associates equipment with a hardware address and verify communication after commissioning.

COM3 supports 75–19,200 baud, full RTS/CTS control and is not optically isolated. COM4 is a 9,600-baud, optically isolated service-tool port without RTS/CTS. Define the intended device and handshake requirements in the integration specification instead of ordering cables solely by the RJ45 connector shape.

At 24 VDC, ABB gives 180 mA typical and 300 mA maximum for the processor, corresponding to 4.32 W and 7.2 W. Add the actual CEX and ModuleBus loads using their own ratings; the CEX limit is 2.4 A, while the electrical ModuleBus limits are 1 A at 24 V and 1.5 A at 5 V. Do not size the complete cabinet from the processor’s typical figure alone.

No. ABB states one electrical cluster and seven optical clusters for a non-redundant CPU, with a maximum of 96 I/O modules overall. Allocate modules to the supported cluster arrangement and check each cluster’s installation and power limits before accepting a system bill of materials.

ABB specifies an event queue of up to 3,000 events per OPC client. A system integrator should test the expected event burst and client recovery behavior against that finite capacity, rather than treating it as unlimited historical storage. Include event delivery and queue handling in the agreed test scope.

ABB specifies two 10 Mbit/s Ethernet channels for PM856AK01 and recommends a 100 Mbit/s switched Ethernet backbone. These figures refer to different network segments. Verify switch-port support for the controller link speed and size upstream traffic separately; do not label the controller itself as a 100 Mbit/s Ethernet device.
