A field-focused engineering release on a dual-channel ABB UNITROL 6000 excitation integration for large hydropower, with an interactive signal path, verified component notes, a technical quiz, a thermal screening tool and a modernization poll.
A cabinet-level integration of high-speed control, converter interfacing, isolated feedback acquisition, gate-driver infrastructure, operator visibility and forced-air cooling for large synchronous hydro-generators.
XIAMEN, CHINA — SEPTEMBER 2026
A new engineering integration package is being prepared for large-scale hydropower excitation duties where continuous grid synchronization, rapid transient control and high availability must coexist inside one maintainable cabinet architecture. The project brings together ABB AC 800PEC / UNITROL 6000 control hardware, isolated field-feedback interfaces, converter gate-control infrastructure and a dedicated enclosure-cooling layer. Its operating concept is dual-channel: each channel is treated as a complete control path, not merely a duplicate processor. Measurement, controller, converter interface, firing path, power supply, cooling, software release and changeover logic all have to be reviewed as one engineered system.
Click any module card to reveal its engineering role. The moving cyan links represent signal progression, not a wiring diagram.
ABB identifies this unit as an Input Coupling Unit with 70 V supervision. Confirm terminal assignment, insulation scheme and complete suffix.
In the supplied project BOM, this AC 800PEC hardware executes the high-speed excitation-control layer. Confirm application software, FPGA/firmware release, I/O mapping and channel role.
ABB lists PC D231 B as the Converter Control Interface. It belongs between the controller and project-specific converter/gate-control path.
The strongest part of this integration is not any single board. It is the controlled handoff between acquisition, computation and firing. KS D211 B101 couples the supervised input layer into the control environment. PCD235C101 provides the project’s fast control platform for AVR, limiter and stabilizing functions, while PC D231 B provides the converter-control interface. Downstream, the correct GDI and converter-specific hardware translate control decisions into thyristor-gate action.
ABB material for the AC 800PEC platform shows that control work can be divided across performance levels, with published examples ranging from 50 μs and 250 μs tasks to 1 ms tasks and FPGA functions below that range. This supports a technically fast architecture, but it does not justify promising a universal “sub-millisecond generator response.” Hydraulic dynamics, sensing filters, application code, firing logic, bridge topology and machine constants still define the closed-loop result.
ABB lists 3ADT220090R0006 as a UNITROL 6000 measurement card.
Verify 3BHB006338R0001 / R0002 and the downstream gate unit against the original BOM.
The ECT is an optional independent industrial touchscreen PC; no single current panel part number applies to every cabinet.
Hydro-generator excitation cabinets face a demanding combination: long duty cycles, humid powerhouse air, dust loading, converter heat and shutdown-sensitive electronics. The supplied ebm-papst K2E200-AH20-05 is a 230 VAC axial fan. Published operating data confirms 50/60 Hz operation, 70 W at 50 Hz, 2700 min⁻¹ and a maximum ambient rating of 55 °C; the widely cited free-air figure is approximately 600 m³/h. Those values are a starting point—not a cabinet-cooling calculation. Filter condition, pressure drop, inlet temperature, recirculation, heat losses and fan orientation must be included in the thermal design.
On the cabinet door, the UNITROL Excitation Control Terminal gives operators a separate HMI layer for status, trends, alarms, fault logging and parameter access. Earlier ABB material describes 12-inch or 15-inch ECT touchscreens, while newer UNITROL 6000 literature describes an industrial-grade Windows 10 touchscreen PC. That evolution is exactly why an RFQ should name the installed ECT hardware and software release instead of requesting “the standard UNITROL panel.”
AC 800PEC hardware used in the supplied excitation-project BOM as the high-speed control layer.
Verify before order: complete type code, hardware revision, loaded application, FPGA/firmware, I/O assignment and redundant-channel designation.
Request identification review →
ABB-listed CCI Converter Control Interface for UNITROL 6000 configurations.
Verify before order: cabinet generation, controller pairing, fiber/internal link, gate-driver interface, bridge type and system software.
Request identification review →
ABB-listed Input Coupling Unit with 70 V supervision for the UNITROL 6000 family.
Verify before order: complete suffix, supervision requirement, terminal allocation, input source and insulation/grounding design.
Request identification review →
230 VAC axial fan used as a forced-air component in the supplied thermal-management concept.
Verify before order: frequency, airflow direction, connector/leads, mounting, filter set, static pressure, enclosure rating and available clearance.
Request identification review →Use these listings as sourcing references only—not as declared substitutes for the supplied UNITROL 6000 BOM. Match the complete article number, revision, connectors and installed application before ordering.
Processor board
Board-level identification reference for ABB industrial automation maintenance.
View product ↗
Pulse amplifier
Legacy pulse-amplifier board; confirm V1 revision and connected power hardware.
View product ↗
Power interface
Power-interface board listing; verify drive family and conversion-stage architecture.
View product ↗

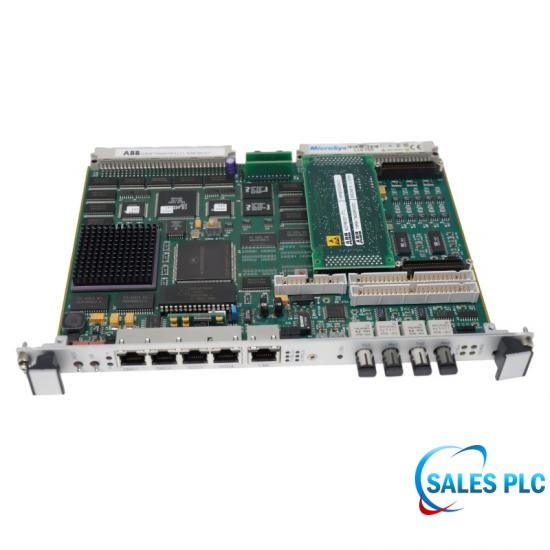

CPU module
Legacy control CPU reference; nameplate and installed configuration are required.
View product ↗

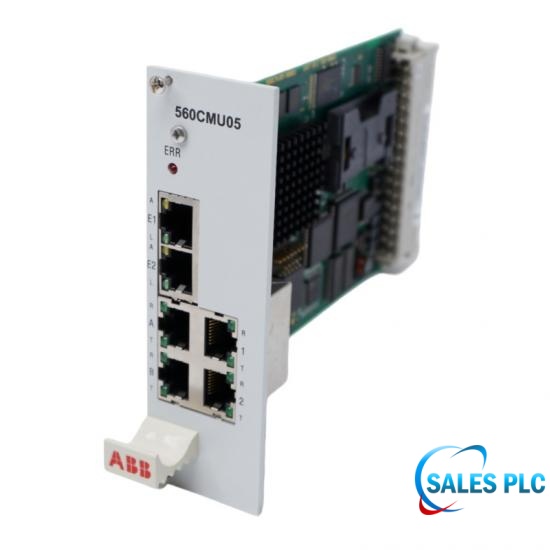

Communication unit
RTU560 communication and processing reference for configuration-aware sourcing.
View product ↗

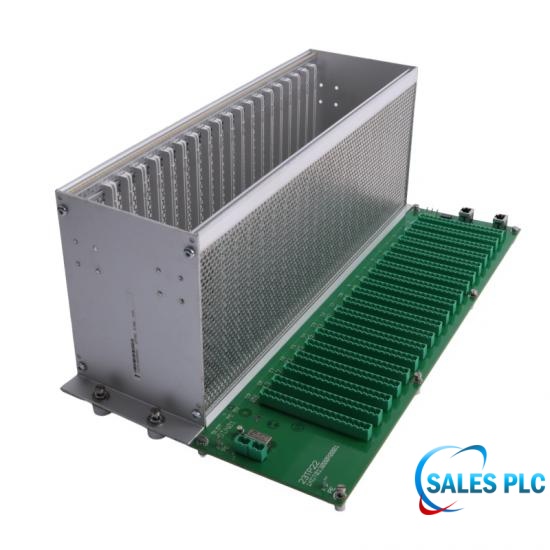

Mounting hardware
RTU560 expansion mounting panel; verify mechanical and system configuration.
View product ↗Select the layer you are checking. Each item reveals the exact project question to resolve before an order or replacement decision is released.
Project question: Is this the installed measuring architecture, or does the cabinet use another PIN/CCM generation?
Confirm: original schematic, board nameplate, sensing inputs, scaling and cabinet generation.
Project question: Are supervision voltage, terminals and insulation scheme identical?
Confirm: full suffix, terminal map, supervised voltage, isolation arrangement and connected feedback circuit.
Project question: Do hardware, application, FPGA/firmware and redundant-channel role match?
Confirm: complete type code, loaded application, I/O assignment, backups and channel designation.
Project question: Does the controller-to-converter link and bridge generation match?
Confirm: CCI revision, fiber/internal link, firing architecture, bridge type and paired control channel.
Project question: Which V1/V2 variant and downstream gate unit are named in the original BOM?
Confirm: 3BHB006338R0001 or R0002, pulse path, gate unit type, thyristor bridge and cabinet drawings.
Project question: What are the installed industrial-PC model, display size, OS image and ECT software release?
Confirm: HMI nameplate, display size, operating-system image, application release, licenses and backups.
Hydropower is dispatchable renewable generation, but its grid value depends on the condition of the excitation chain. A reliable AVR path supports terminal-voltage control and reactive-power response; correctly engineered stabilizing functions can contribute to damping electromechanical oscillations; redundancy reduces the probability that one board fault removes the unit from service. The practical benefit is therefore not “new electronics for their own sake.” It is longer asset life, controlled modernization and a clearer path from field signal to converter action.
The project’s turn-key objective is achieved only when hardware integration is paired with version control, backups, protection testing, cooling verification and documented failover. Similar-looking ABB boards must never be assumed interchangeable. Every proposed replacement remains subject to confirmation against the nameplate, manufacturer documentation, original project drawings and customer-supplied technical files.
