Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales8@amikon.cnWhatsapp/Mob:
+86 18030235313
Technical Specifications

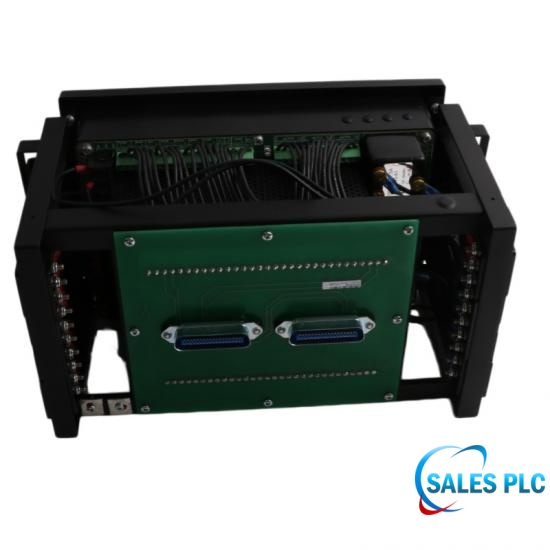

The 269PLUS-D/O-211-100P-120VAC contains 4 output relays, including 1 latched main trip relay, 1 alarm relay, and 2 auxiliary relays. It includes 1 programmable analog output to transmit motor phase current, bearing RTD, or hottest stator RTD data. The front panel incorporates operation keys, an alphanumeric LCD to display real-time parameters and fault codes in English text, and 5 status LED indicators.
Manufacturer
GE
Model

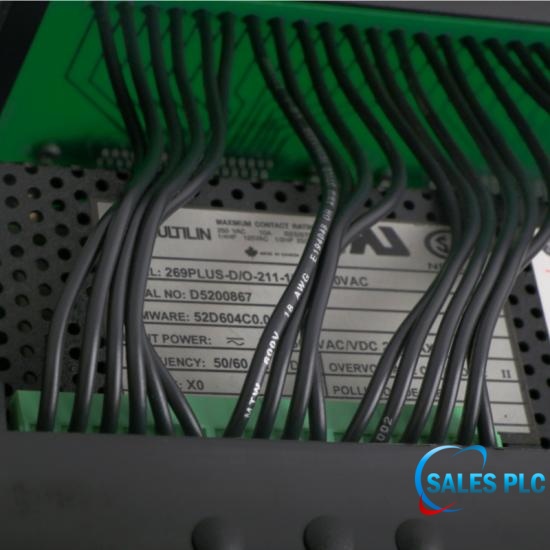

269PLUS-D/O-211-100P-120VAC
269PLUS
269 Plus Series Motor Management Relay
D/O
Drawout Case Structure
211
Modification Hardware Code
100P
100 Ohm Platinum RTD Inputs
Rated Control Power Voltage
120V AC
Dimensiones
355 x 192 x 180 mm
Peso
5.34 kg
Protection and Monitoring
The 269PLUS-D/O-211-100P-120VAC contains 10 rear RTD inputs divided into three zones. RTDs 1 to 6 handle motor stator winding protection, while RTDs 7 to 10 monitor ambient, motor, and load bearing temperatures. The system uses RTD data for thermal modeling and applies exponential cooldown to match motor cooling rates for load cycle calculations. Control terminals consist of a speed switch input, a differential relay input, and a configurable spare input for breaker status. Setpoints, learned parameters, statistics, and pre-trip values are stored in non-volatile memory to prevent data loss during power failure.
Primary Applications
The product protects and manages motor assets across industries including fan and pump control systems in power plants large compressors and transmission pump groups in oil gas and chemical sectors and machinery such as crushers band saws and chippers in mining papermaking and metallurgical fields.
FAQ
Q: What is the main purpose of GE 269PLUS-D/O-211-100P-120VAC?
A: It is used for monitoring and protecting medium-to-large industrial motors.
Q: How many output relays does GE 269PLUS-D/O-211-100P-120VAC provide?
A: It provides 4 configurable output relays.
Q: What CT inputs does GE 269PLUS-D/O-211-100P-120VAC support?
A: It supports phase CT and ground fault CT inputs.
Q: How to install 269PLUS-D/O-211-100P-120VAC?
A: Flush mount it on a standard control cabinet panel.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
