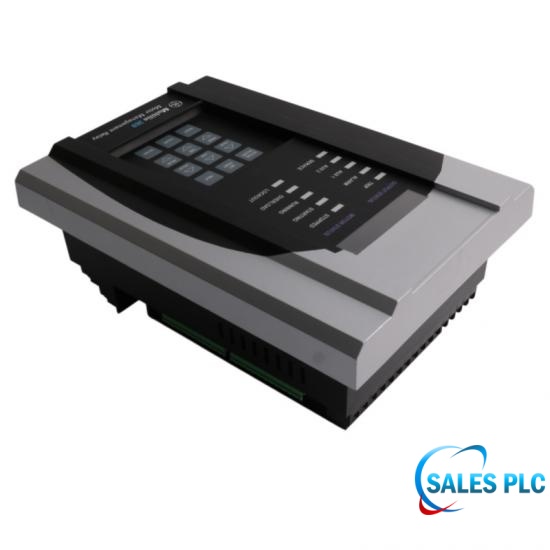

GE 369-HI-R-0-0-0-0-E Motor Management Relay

Technical Specifications

The GE Multilin 369-HI-R-0-0-0-0-E is an industrial-grade, microprocessor-driven motor management relay engineered for the comprehensive protection, thermal replication, and monitoring of three-phase AC motors and their coupled mechanical drivetrains. Operating on a high-voltage control power architecture (HI-spec), this chassis integrates a dedicated 12-channel RTD thermal input tracking module (R-spec) and an enhanced graphical operator interface (E-spec), establishing a robust protective backbone for mission-critical rotating assets without relying on auxiliary network expansion cards.

Adaptive Machine Learning Engine

A core technological differentiator of the 369-HI-R-0-0-0-0-E platform is its onboard adaptive learning algorithm. Rather than relying on rigid static settings, the relay automatically tracks and calculates individual motor parameters across steady-state and transient phases. By modeling real-time profiles of motor inrush current, localized cooling thermal constants, and mechanical acceleration periods, the device self-calibrates to the unique operational baseline of each connected motor, significantly elevating overall protective sensitivity.

Advanced Overload & FlexCurve Thermal Modeling

To secure high-capacity windings under volatile duty cycles, the relay implements precise hardware-level thermal replica tracking. Plant engineers can deploy either the proprietary FlexCurve™ custom overload modeling or select from fifteen factory-standard curve matrices. This dual-layer mathematical approach allows the 369 chassis to enforce strict protective limits where generic protective relays fail, accommodating localized starting thermal stresses while preventing premature or nuisance tripping loops.

FAQ  技术常见问题解答

Q: How does the 369-HI-R-0-0-0-0-E protect the motor?
A: Via thermal overload models, overcurrent, ground fault, and overtemperature trips.

Q: What sensors are used for temperature tracking in 369-HI-R-0-0-0-0-E?
A:  100Ω Pt/Ni, 120Ω Ni, or 10Ω Cu RTDs installed in windings or bearings.

Q: How to configure parameters on the 369-HI-R-0-0-0-0-E?
A: Use the front keypad or EnerVista 369 PC software via serial communication.

Q: What is the benefit of "Enhanced Diagnostics" (E) in 369-HI-R-0-0-0-0-E?
A: It provides detailed Motor Health Reports and Motor Start Data logs.
