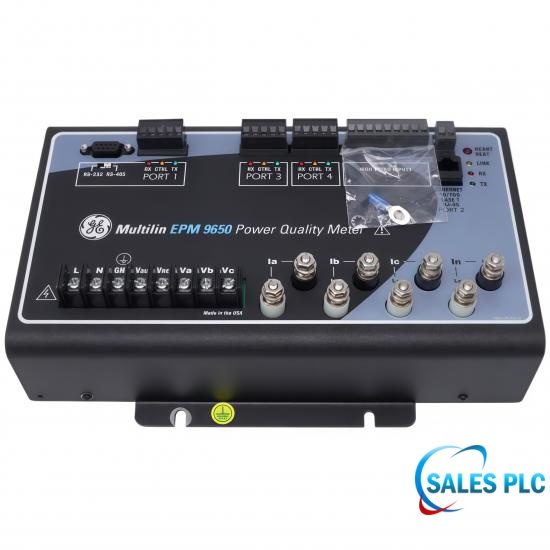

GE MULTILIN EPM 9650 POWER QUALITY METER PL96501A0A10000 Power Quality Meter

Technical Specifications

The Multilin EPM 9650 PL96501A0A10000 is an advanced power quality meter for industrial, commercial, and utility electrical networks. It combines revenue-class metering with detailed power quality analysis, waveform recording, harmonic monitoring, and event diagnostics. The meter records waveforms at up to 512 samples per cycle and analyzes real-time harmonics through the 128th order, while THD recording extends to the 255th order. Built-in GPS clock synchronization supports accurate event and alarm timestamps. Communication options include 10/100 BaseT Ethernet with Modbus/TCP. The EPM 9650 is suited to critical-load monitoring, energy management, fault analysis, and distribution-system power quality assessment.

Key Benefits

High-performance power quality and revenue class metering for critical power applications EN50160 flicker with up to 512 waveform samples per cycle and high-speed transient recording for complete power quality monitoring Fast response time to power quality events for diagnostics and maintenance Built-in GPS clock sync capability for accurate time stamping of events and alarms for synchronized system monitoring Exceeds ANSI C-12 and IEC 687 specifications for accuracy with auto calibration using temperature compensation Software and hardware triggers record waveform events, allowing the meter to be used for fault analysis, system apparatus monitoring and many other applications Real time phasor analyzer monitors phase angles between the voltages and currents Able to record THD to the 255th order peak and real-time harmonic magnitudes analysis to the 128th order for every channel for accurate power quality analysis Simplified system integration with communication option for 10/100 BaseT Ethernet with Modbus/TCP Expandable analog and digital output modules, simplifying the polling, logging, and transfer of data to master station devices

Standard Features

FAQ  技术常见问题解答

Q: What THD order can MULTILIN EPM 9650 PL96501A0A10000 record?
A: THD recording extends through the 255th order.

Q: How accurate is current measurement on MULTILIN EPM 9650 PL96501A0A10000?
A: Current input accuracy is ±0.1%.

Q: Which frequency range does MULTILIN EPM 9650 PL96501A0A10000 cover?
A: Frequency measurement covers 45 to 69 Hz.

Q: How accurate is frequency measurement on MULTILIN EPM 9650 PL96501A0A10000?
A: Frequency accuracy is ±0.01 Hz.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
