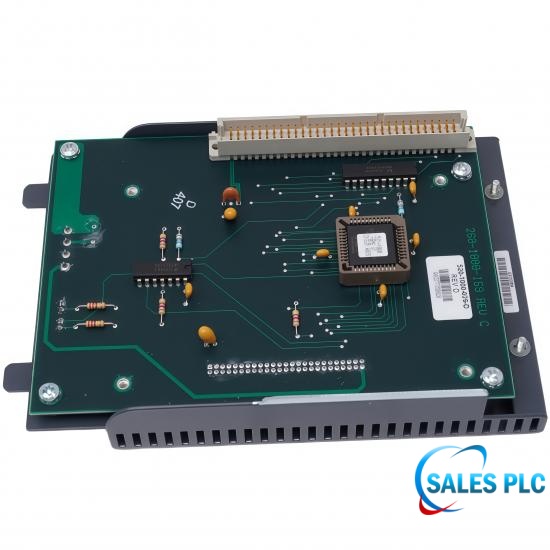

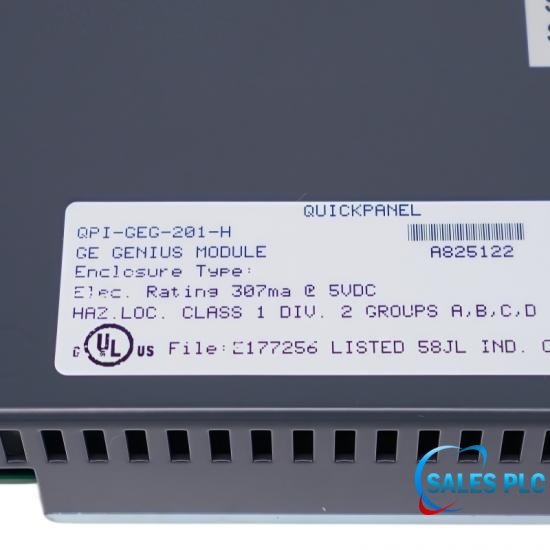

GE QPI-GEG-201-H Genius Communication Module

Technical Specifications

The QPI-GEG-201-H is associated with the GE Fanuc and Total Control Products QuickPanel family. It is identified as a Genius communication or interface module used to connect compatible QuickPanel operator-interface terminals with a Genius I/O network. The module forms the communication link between the operator interface and devices connected through the Genius network rather than serving as a standalone display. QPI-GEG-201 is documented for several larger QuickPanel touch-screen models and belongs to a group of optional PLC communication interfaces. For replacement work, the complete QPI-GEG-201-H identification should be checked against the installed QuickPanel hardware and existing Genius network configuration.

QuickPanel System Compatibility

The QPI-GEG-201 is a additional component that comes as a part of the QuickPanel series. The optional communication modules that this unit is a part of are connections to all of the programmable logic controllers available. There are seven PLC options: A-B Remote I/O, A-B DH Plus, Interbus-S, Modbus Plus, DeviceNet, Genius I/O, and Profibus. The QPI-GEG-201 model is the connector unit designed to bridge the Genius I/O network to several of the QuickPanel touch screen models.
The QPI-GEG-201 unit is compatible with a set of several of the larger touch screen units. There’s a 9 inch model, the QPI-2X100-E2P module, which is outfitted with an amber electroluminescent display. It’s also compatible with up to 3 10.5 inch models. The QPI-2D100-L2P is built with a monochromatic liquid crystal display. The QPI-2X100-S2P has a super twisted nematic display, and the QPI-2X100-S2P has a thin film transistor, and both of them display the graphics in full color.
The QPI-GEG-201 is also able to interface with one 12.1 inch model, the QPL-2X100-C2P. This model is outfitted with a thin film transistor as well, in full color.

Industrial Applications

Process Control: Supports operator monitoring and control in industrial process systems.
Production Equipment: Applicable to automated equipment using compatible QuickPanel terminals.
Control Panel Systems: Used where QuickPanel HMIs require a Genius I/O interface.

FAQ  技术常见问题解答

Q:Is the QPI-GEG-201 required for the QuickPanel series?
A;No, the QPI-GEG-201 is an optional addition to the series.

Q:Does the QPI-GEG-201 fit within all QuickPanel touch screens?
A:No, this unit is not meant for all QuickPanel models. There are only certain models that the unit fits with, which are the larger models.

Q: Where does QPI-GEG-201-H sit in the communication path?
A: It operates between the QuickPanel and Genius I/O network.

Q: What industrial role does QPI-GEG-201-H perform?
A: It supports operator-interface communication with connected control equipment.
