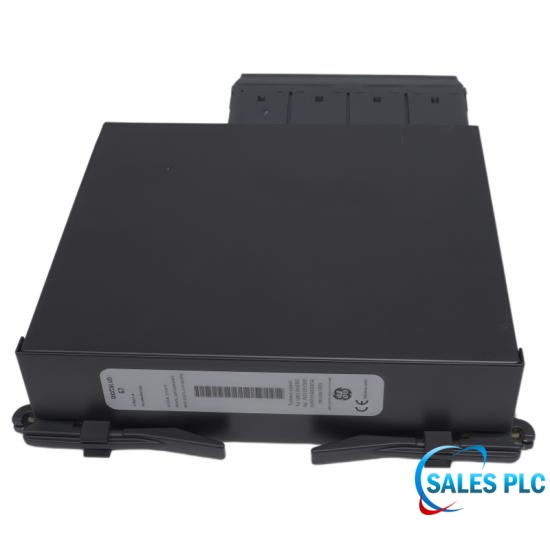

GE UR67H Digital I/O Module

Technical Specifications

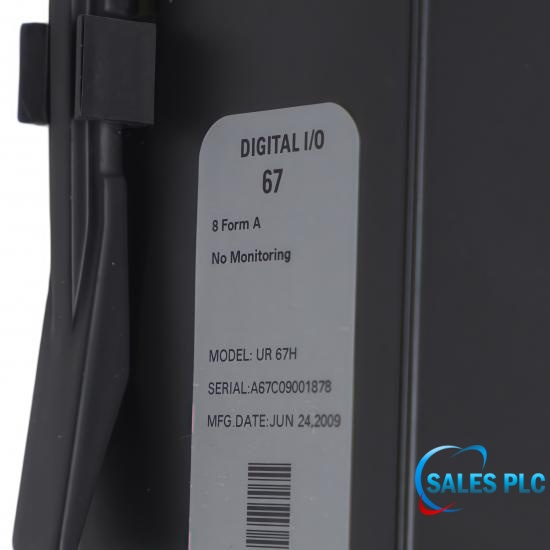

GE Multilin UR67H Digital I/O Module is a digital output module designed for GE Universal Relay systems. It provides eight Form-A digital outputs for controlling and monitoring auxiliary equipment in power protection and automation applications. The module integrates with the UR Series platform and allows relay systems to process external control signals through configurable digital functions. It supports EnerVista software configuration and works with modular UR relay architectures. The unit is commonly used in substations, electrical protection systems, and industrial control environments where reliable digital switching and equipment management are required.

Key Features

I/O Capacity: 96 inputs, 64 outputs
Communication: Connects auxiliary equipment to relay
Functionality: Processes signals for control and protection
Module Reference: Check manual for included modules.

Precautions

Option 67 is not a standard fixed configuration for all UR Series relays. The installed Digital I/O module depends on the specific ordering code.
Different B30 relays may contain different I/O cards. The same relay model can have different digital I/O options, so the features are not always identical.
The ordering code must be checked before selection or replacement. The exact Digital I/O module type can only be confirmed from the model number breakdown.
Option 67 may include different output types, such as:
Form-A trip rated outputs
Form-C relay outputs
Solid State Relay (SSR) outputs
Mechanical latching digital outputs
Output functions depend on the selected module version. Some Form-A and SSR options support:
Current detection
Circuit continuity monitoring
Mechanical latch outputs are designed for secure interlocking applications. They can replace traditional lockout relays in some protection systems.
B30 relays can have up to 20 different Digital I/O configurations. The digital I/O option must be verified from the ordering chart.
Ordering code XX indicates no Digital I/O module installed. A relay with this code does not include the Option 67 module.
Module replacement requires configuration verification. Different I/O cards may have different output ratings, monitoring functions, and control capabilities.
Application requirements should be checked before installation. Protection and control systems must confirm the correct output type, such as Form-A, Form-C, or SSR, for reliable operation.

FAQ  技术常见问题解答

Q: What equipment can UR67H control?
A: It controls auxiliary devices through digital output signals.

Q: Can UR67H support high-current switching?
A: It supports switching loads up to 12 A.

Q: How does UR67H connect with relay systems?
A: It integrates through the modular UR Series architecture.

Q: What communication function is available with UR67H?
A: It supports data exchange with auxiliary equipment through relay communication systems.
