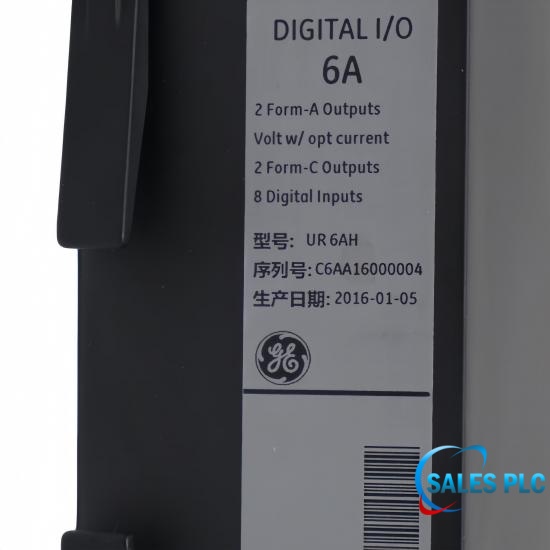

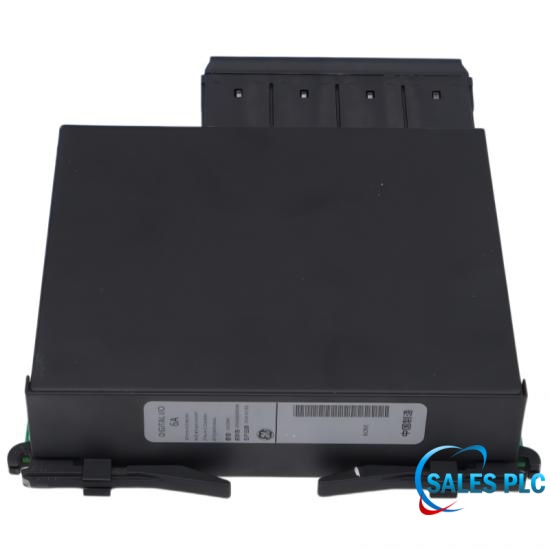

GE UR6AH Digital I/O Module

Technical Specifications

GE Multilin UR6AH (GE UR6AH) es un módulo de entrada/salida (E/S) digital de alto rendimiento fabricado por General Electric como parte de su serie de relés universales (UR). El GE UR6AH (GE UR6AH) se utiliza ampliamente en la distribución de energía, servicios públicos, subestaciones y automatización industrial a gran escala para conectar relés de protección con equipos de campo externos.

Function

The Multilin UR-6AH Digital I/O Input Output Module serves to provide contact inputs or contact outputs to universal relays in the Universal Relay UR Series. These input and output contacts are useful to a Multilin universal relay in order to control and monitor equipment that are found within a substation or within equipment that handle protective functions. Each digital I/O can be differentiated from other Multilin I/O digital models with the type of protection card that is incorporated in to the module. These cards can be classified as Form-A, Form-C, SSR (solid state relay), or fast Form-C.

Protection and Control Functionality

6-distance zones and sub-cycle performance SW options (FW 8.0)
New TGFD elements (FW 8.0)
Inter-turn transformer and dedicated Harmonic/Inrush detection elements (FW 8.0)
B30 supports up to sixteen feeders and six differential bus zones when equipped with -9-2LE process bus module, end-fault protection, partial P&C blocking due to SV status (FW7.9x)
CT exclusion setting (FW 7.8)
B30 supports up to sixteen feeders and six differential bus zones when equipped with -9-2LE process bus module, end-fault protection, partial P&C blocking due to SV status.
Expanded Bay Controller Capabilities – providing a one box solution (FW 7.6x)

FAQ  技术常见问题解答

Q: What output type does UR6AH use?
A: It uses Form-C relay output contacts.

Q: How many Form-C outputs does UR6AH support?
A: It supports 4 Form-C outputs.

Q: How many channels are available on UR6AH inputs?
A: The input section contains 16 channels.

Q: What signals can UR6AH handle?
A: It handles digital status input and relay control signals.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
