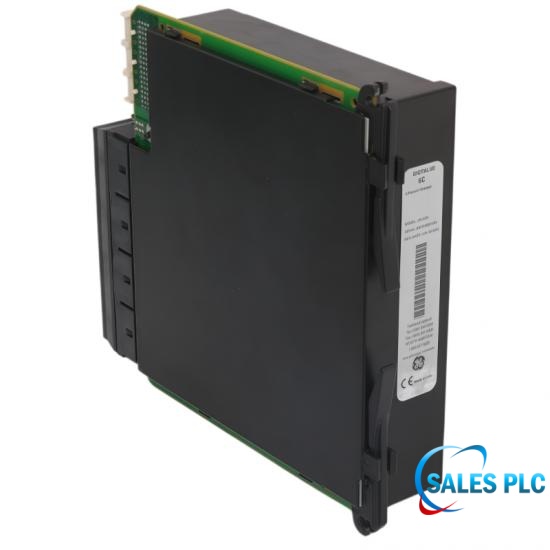

GE UR6CH Digital I/O Module

Technical Specifications

Offering UR relays the ability to communicate with auxiliary equipment by providing digital inputs and outputs, General Electric’s UR-6CH is a Digital I/O Module. This particular unit offers 8-Form C digital outputs. Form-C digital outputs are Single Pole-Double Throw (SPDT) contacts, indicating that there is common point that connects to one normally closed contact (NC) and one normally open contact (NO). Form-C can switch between these two outputs and is often called a “changeover” contact as a result.

Benefits

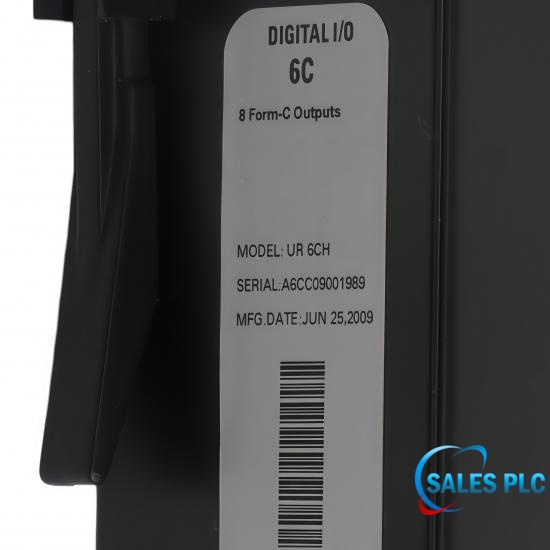

The Digital I/O characteristic features allow the universal relay to gain contact inputs and contact outputs in order to control and monitor auxiliary equipment that may be within the protective application of the universal Multiiln relay’s specific application. Depending on the order options of the digital I/O modules contained by a universal relay and depending on how many are included, a universal relay can obtain up to 96 contact inputs (voltage rating to 250 volts) and up to 64 contact outputs. There are different types of GE Multilin digital I/O modules that dictate how many inputs and outputs each I/O module has and which type of inputs or outputs are available to the universal relay (UR). The UR-6CH for example has the 6C order option. This means that the outputs provided by this particular digital I/O module are 8 Form-C outputs. If more than one of these type of digital I/O modules is found in a particular relay then this increases the number of Form-C outputs that the universal relay has for use to benefit the specific end application.

Selection Guide

The Universal Relays series is built with scalability in mind, offering a hinged faceplate that allows access to the module bay within for easy installation and upgrading. While the enhanced and normal models have minor differences when accessing the module bay, both units provide a relatively easy entrance for hardware modifications. Prospective buyers should ensure they are buying the right module for their power system needs, as other Digital I/O relays in the same series provide different contact forms and capabilities. The series also offers units with trip-rated Form-A contacts, Solid State Relay contacts, or a combination of Form-A, Form-C, and SSR. Solid state output modules offer fast tripping, high current breaking capabilities, and quick reset times that are perfect for direct tripping applications.

FAQ  技术常见问题解答

Q: What contact type does UR6CH use for outputs?
A: It uses SPDT Form-C changeover contacts.

Q: Which relay series supports UR6CH integration?
A: It supports GE Multilin Universal Relay systems.

Q: What software supports UR6CH configuration?
A: EnerVista software supports parameter setup and monitoring.

Q: What equipment can UR6CH communicate with?
A: It communicates with auxiliary equipment through digital signals.
