GE UR6EH Digital I/O Module

Technical Specifications

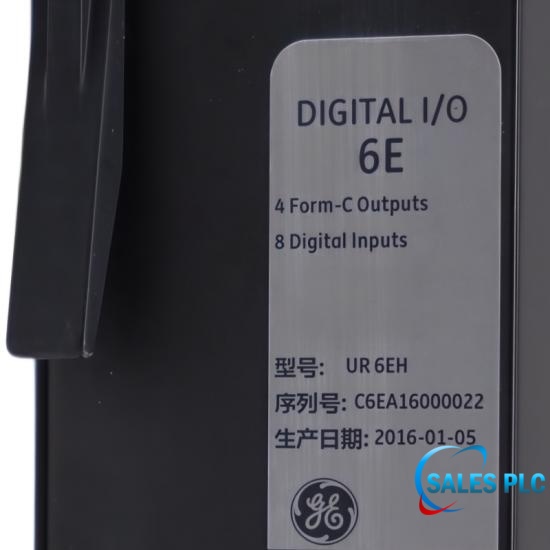

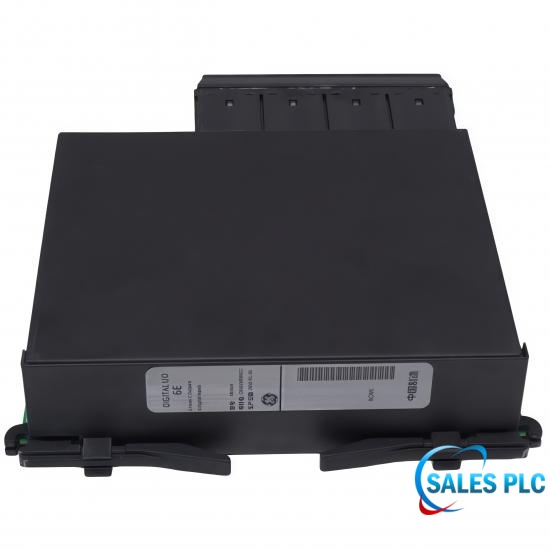

A module intended for upgrading or replacing current modules in the Universal Relays series, General Electric Multilin’s UR-6EH is a Digital I/O Module. The module provides digital inputs and outputs to the relay, enabling the relay to communicate with equipment within the given power system. This particular module provides the relay with 4 Form-C outputs and 8 contact inputs. Form-C digital outputs are SDPT (Single Pole-Double Throw) and allow changeover between its normally open (NO) and normally closed (NC) contacts.

 Function Overview

The Multilin UR-6EH Digital I/O Input Output Module serves to provide contact inputs or contact outputs to universal relays in the Universal Relay UR Series. These input and output contacts are useful to a Multilin universal relay in order to control and monitor equipment that are found within a substation or within equipment that handle protective functions. Each digital I/O can be differentiated from other Multilin I/O digital models with the type of protection card that is incorporated in to the module. These cards can be classified as Form-A, Form-C, SSR (solid state relay), or fast Form-C. The General Electric Multilin UR-6EH Digital I/O Input Output Module is characterized with a 6E order code. This alphanumeric designation is found after the “UR-” which stands for universal relay. These different I/O digital options allow the universal relay to be appropriate to each need, no matter how demanding. The 6E order code for the General Electric Multilin UR-6EH Digital I/O Input Output Module shows that the I/O module has four Form-C outputs and 8 digital inputs for use in the UR Series of Mutilin universal relays.

New and Enhanced Communication Capabilities

New UR with process bus module supports IEC 61869 sample values, PTP master capabilities and SV switching (FW 7.9x)
New UR process bus modules supporting IEC 61850-9-2LE/IEC 61869 Merging Units and IEC 61850-9-2 Hardfiber (FW 7.8x) Module Training available here
Support switchable IEC 61850 Ed. 1 and Ed. 2 and redundant SNTP (FW 7.7x)
New UR front panel with integrated 7” color, graphical display - providing operators with enhanced situational awareness (FW 7.6x)
High density I/O module supporting up to 120 inputs or up to 72 contact outputs – eliminating the need for additional discrete devices (FW 7.6x)

FAQ  技术常见问题解答

Q: What output contact type does UR6EH use?
A: It uses SPDT Form-C changeover contacts.

Q: Which relay systems support UR6EH integration?
A: It supports GE Multilin Universal Relay systems.

Q: What function does UR6EH add to relay platforms?
A: It adds digital signal monitoring and control functions.

Q: What software supports UR6EH configuration?
A: EnerVista software supports setup and configuration.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
