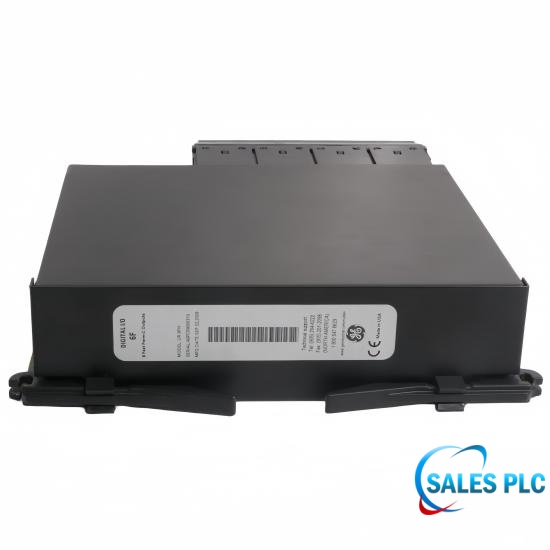

GE UR6FH Control Module

Technical Specifications

Providing the relay with eight Fast Form-C Digital Outputs, General Electric Multilin’s UR-6FH is a Digital I/O Module intended for the Universal Relays series. The Direct I/O module allows the relay to communicate with equipment in the power system, rapidly transmitting information and applying it for monitoring, management, and protection purposes.

I/O Modules Types

• Form-A Digital Outputs: Form-A digital outputs are typically open contacts with one common terminal (C) and one normally open terminal (NO), and is isolated from ground.
• Form-C Digital Outputs: Form-C digital outputs are Single Pole-Double Throw, offering one common terminal (C), one normally open terminal (NO), and one normally closed terminal (NC). This digital output type is able to “changeover” from one terminal type to the other.
• Fast Form-C Digital Output: The Fast Form-C digital output is structured similarly to the regular Form-C but operates at a faster rate. While the operate time of the regular From-C output is < 8 ms, the operating time of the Fast Form-C is reduced to < 0.6 ms.

Unique Features

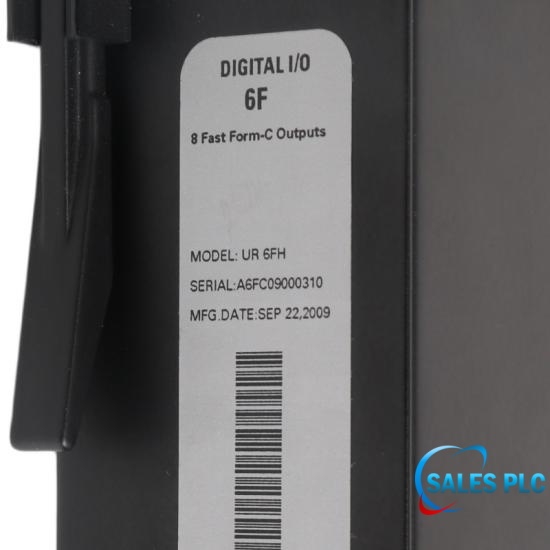

The UR-6FH has eight fast form C outputs. In general, universal relays will include a trip rated Form-A digital I/O module for outputs and applications that are categorized as high density. Universal relay systems will use either Form-C, mechanically latched relays, SSR, or Form-C digital I/O modules for normal output applications. These variable I/O digital module options increase flexibility for to end user to match each universal relay, down to the composition of digital I/O modules, CPUs, or power switches to the specific application and practical niche of that relay system. The 6K order option also has Fast Form-C outputs. However, this option only has four Fast Form-C outputs. The other four outputs are classified as just Form-C outputs. As an additional comparison, the 6F option has four Form-C outputs only, with eight digital inputs. Thus it is important to consider the precise order option of the digital I/O module at had to determine its input and output characteristics.

FAQ  技术常见问题解答

Q: What output type does UR6FH use?
A: It uses SPDT Fast Form-C contact outputs.

Q: Which relay series supports UR6FH integration?
A: It supports GE Multilin Universal Relay systems.

Q: What application areas fit UR6FH functions?
A: It fits protection, control, and automation applications.

Q: What signal type does UR6FH handle?
A: It handles digital output signals for equipment control.
