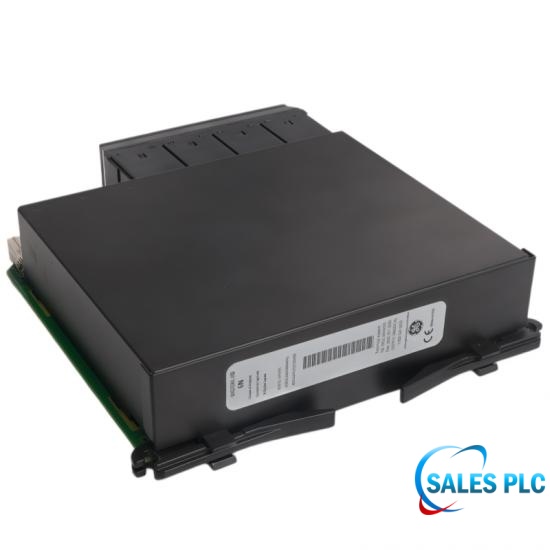

GE UR6NH Digital I/O Module

Technical Specifications

The UR-6NH Digital I/O Module offers the Universal Relays series the ability to communicate with equipment such as fans, valves, and alarms within the given power system. This particular unit endows the relay with 4 Form-A (current with optional voltage) outputs and 8 contact inputs.

Precautions

Users should only perform installations, upgrades, or maintenance when control power has been removed from the relay. Additionally, modules can only be replaced with modules of the same kind, so users should take special care to ensure the correct module type is being installed into a given slot. If either of these requirements are not followed, Multilin warns that potential equipment damage, user injury, or faulty operation can occur. It is also worth noting that users should employ satisfactory electrostatic discharge protection if coming into contact while energized.

Unique Features

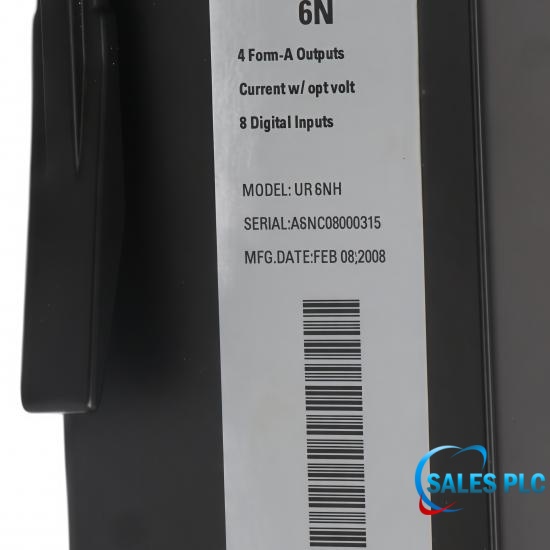

The UR-6NH digital I/O module is of order option 6N with 4 outputs and 8 digital inputs. This unit has current monitoring capabilities with an optional voltage metering capability. The Form-A digital output is the type of digital I/O card with the lowest activation speed (less than 4 ms). Other order code options for the GE Multilin are of Form-C digital I/O cards or of SSRs (solid state relays). Another point of variability within the digital I/O Multilin relay systems is whether or not the digital I/O module has a mechanically latching output. This feature can allow the end user to eliminate the need for a lockout relay or a mechanical switch feature.

FAQ  技术常见问题解答

Q: What applications fit UR6NH digital I/O functions?
A: It fits fan, valve, alarm, and auxiliary equipment control.

Q: What software supports UR6NH configuration?
A: EnerVista UR software supports module configuration.

Q: How is UR6NH installed in a relay system?
A: It uses a modular plug-in installation method.

Q: What communication role does UR6NH provide?
A: It provides digital signal exchange between equipment and relays.
