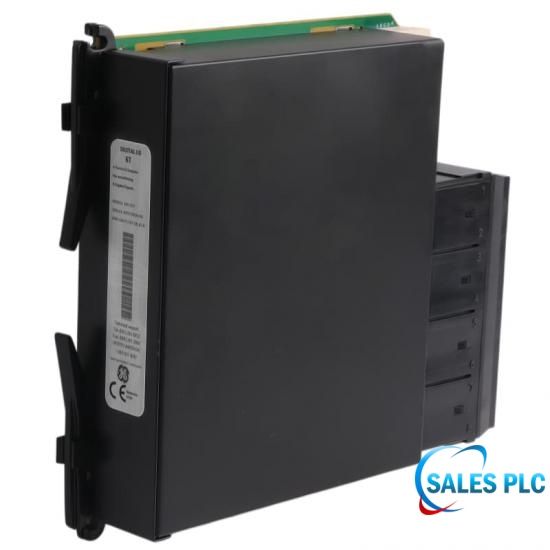

GE UR6TH Digital I/O Module

Technical Specifications

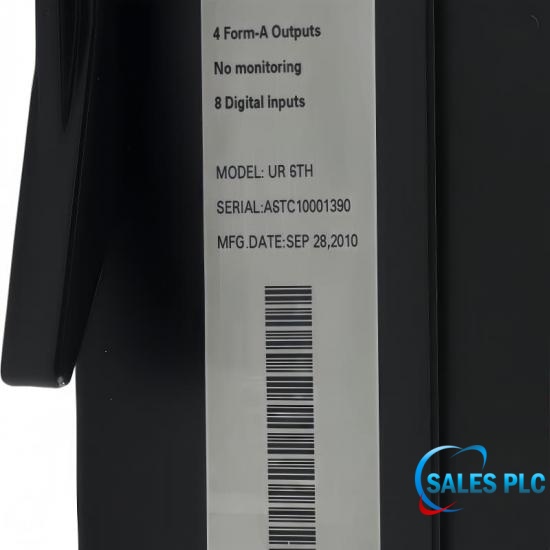

General Electric Multilin’s UR-6TH is a module intended to supply digital inputs and outputs to the relay it is installed in. These inputs and outputs enable the relay to communicate with various pieces of equipment in the power system, increasing the efficiency of the overall system. This particular version of the module includes 4 Form-A (no monitoring) outputs and 8 contact inputs.

Module Advantages

The UR-6TH module is easily installed due to the modular design of the entire Universal Relays series. The series is characterized by its scalability, offering a number of modules located behind the faceplate that can be upgraded and adjusted as power system management needs change over time. Modules can only be replaced with modules of a similar nature, so users should take particular care when upgrading their system.Digital I/O modules enable rapid, secure communication that reduces and/or removes the need for expensive and time-consuming hardwiring. Form-A digital outputs, included in this version of the module, possess extremely quick activation speeds (less than 4ms).

I/O Output Capacity

The UR-6TH Multilin has order option 6T, meaning that the I/O module has four Form-A outputs that do not monitor voltage or current and four inputs. The 19 inch rack of a horizontal mount universal relay can contain power supply modules, a CPU, CT/VT input modules, a digital I/O module (like the GE Digital UR-6TH I/O Module), a transducer input output (I/O), module and other components. These hardware modules are generally specified when the universal relay is ordered.  Some universal relay systems may even contain more than one module of the list mentioned above. For some universal relays however, such as the T60 transformer management relay, there is a limit for the different types of modules that can be included in one universal relay. For example there is a limit of three transducer input/output modules per unit that can be chosen. Additionally for the T60 there is a maximum of one inter-relay communications (COMMS) module that can be included for a given universal relay. A universal relay generally contains up to two power supply units. The specification here is that both power supply units chosen must be the same type (redundant and main supply).

FAQ  技术常见问题解答

Q: What type of module is UR6TH with 4 Form-A outputs?
A: It is a digital I/O expansion module for relay systems.

Q: How many inputs does UR6TH provide with its I/O design?
A: It provides 8 contact inputs for signal monitoring.

Q: How many outputs does UR6TH include for control functions?
A: It includes 4 Form-A non-monitored outputs.

Q: What communication function does UR6TH support?
A: It supports digital communication between relay equipment and systems.
