GE UR7HH Communications Module

Technical Specifications

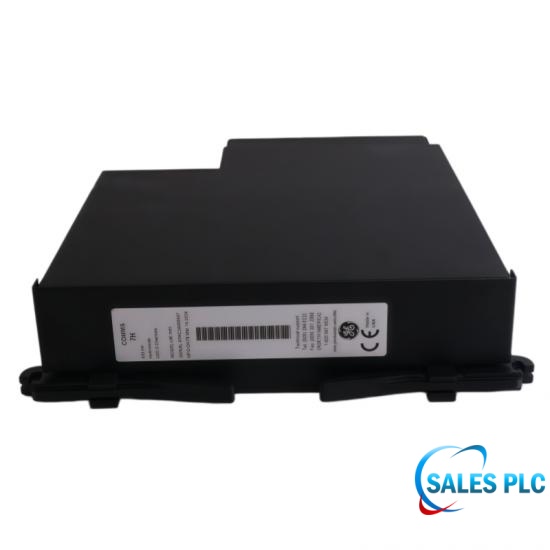

Providing two channels for interrelay communications, the UR-7HH Communications Module is intended for installation in the Universal Relays series. The module provides the relay with two LED channels that are multi-mode and function at a wavelength of 820 nm. While multi-mode fiber optic wiring is considerably cheaper than single-mode, attenuation (or loss of signal/loss of dB) is greater over long distances for multi-mode setups than for single-mode.

Features

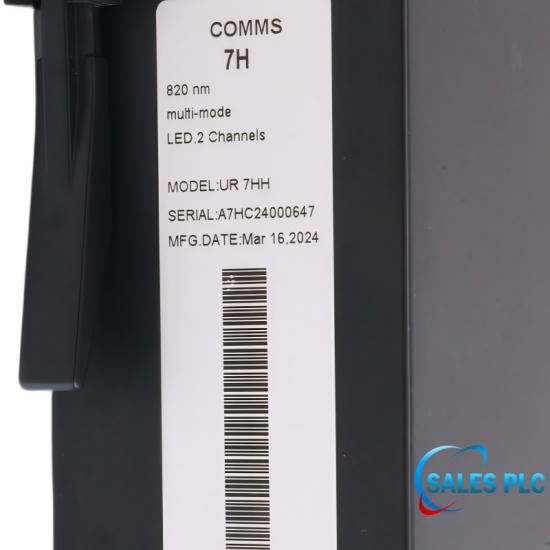

The UR-7HH is a COMMS module for use with the UR Series of Multilin Universal Relay Systems. The inter relay communication characteristics of the UR-7HH include a 820 nm, multimode, LED, with 2 channels.  Each universal relay is featured with high-speed communication capabilities with a communication switch, an IEC Process Bus, and inter-relay communication abilities. The communication abilities make it seamless for a Multilin universal relay to integrate in to existing systems or infrastructures. There are three Ethernet ports available to combat heavy Internet traffic conditions and reduce any potential latency effects. The updated communications features are the IEC 61850 DNP 3.0 with a Modbus TCP/IP and IEC 60870-5-104 protocols. There are IEEE C37.118 synchrophasors as well over the Ethernet connection.

Relevant UR-7HH Software Details

The Universal Relays series is able to display data generated from module activity and display it to the user passively through the LED located on the unit’s faceplate or more effectively through a computer connected to the relay running Multilin’s EnerVista software program. The EnerVista software program provides a streamlined user interface for monitoring channel health and trending and exporting data related to ongoing interrelay communications. EnerVista UR has extremely light hardware requirements, making implementation of the program convenient and inexpensive.

FAQ  技术常见问题解答

Q: How does UR7HH transfer relay data?
A: It transfers protection and control information through fiber optic communication paths.

Q: What software supports UR7HH configuration?
A: It supports EnerVista UR software for relay setup and monitoring.

Q: What synchrophasor protocol works with UR7HH?
A: It supports IEEE C37.118 synchrophasor communication applications.

Q: What optical technology does UR7HH use?
A: It uses LED-based optical transmission for stable communication performance.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
