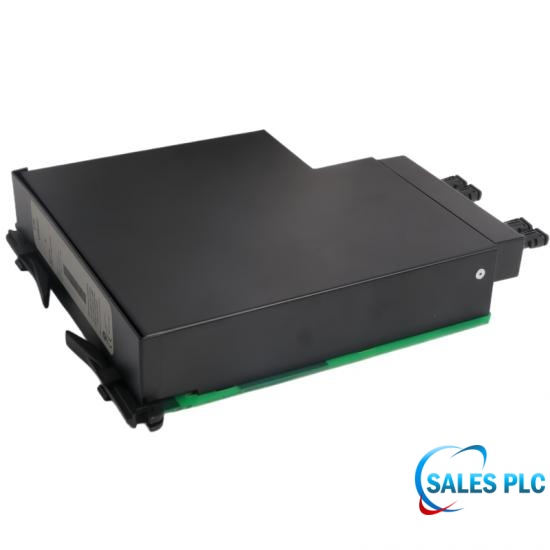

GE UR7IH Inter-Relay Communications Module

Technical Specifications

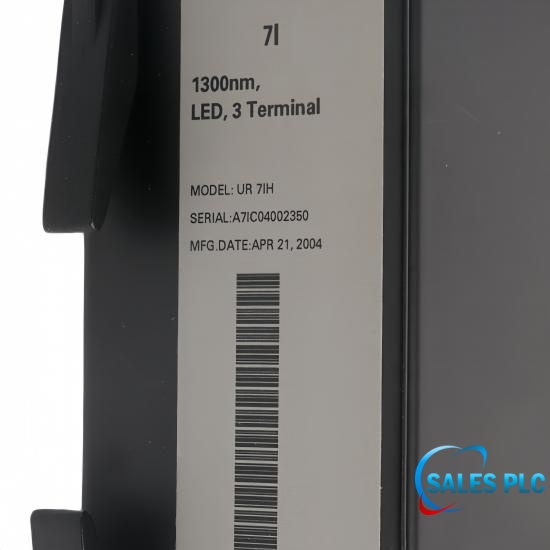

General Electric Multilin’s UR-7IH is a module in the Universal Relays series, offering two channels for interrelay communications. The channels are LED-based and function at a wavelength of 1300 nm. The channels are multi-mode as opposed to single-mode.

UR Module Installation Guide

Remove control power from the relay to eliminate the risk of injury, misoperation, or system damage. Open the faceplate to the left after pushing up the sliding latch or unscrewing the screw (depending on the Universal Relay), enabling easy access to the module bay.
Simultaneously pull the ejector clips to free the module from its affixed position. Gently slide the module out of the slot while noting the slot down on paper; the new module must be placed into the same slot, as modules can only be replaced with similar modules.
Smoothly insert the new module and engage the ejector clips simultaneously, fixing the relay into its slot. The module’s Plug & Play capabilities allow it to begin functioning immediately once control power is restored.
Multilin’s streamlined module installation process reduces relay downtime and entirely eliminates lengthy software installation processes.

Key Benefits

Modular construction via common hardware, reduced spare parts, and plug & play modules for cost savings and simplification
CyberSentry UR provides robust network security aligned to industry standards and services
Application flexibility with multiple I/O options including high density I/O, programmable logic, modularity, and specific customization
Advanced IEC 61850 Ed. 1 and Ed. 2 certified implementation, complete settings via SCL files and comprehensive process bus support (IEC 61850-9-2LE, IEC 61869 or IEC 61850-9-2 Hardfiber) ensures interoperability, device managing optimization and reduced cost of ownership
Routable GOOSE (R-GOOSE) enables GOOSE messages going beyond the substation, which enables wide area protection and control applications
An integrated large, full color display, provides real-time visualization and control of the protected bay, via a bay mimic as well as annunciator functionality and graphical visualization of phasors
Three Ethernet ports enable purpose specific LAN support, reducing latency from heavy traffic on critical communications
Phasor Measurement Unit (synchrophasor) according to IEEE C37.118 (2014) and IEC 61850-90-5, directly streamed from your protective device

FAQ  技术常见问题解答

Q: How many communication channels does UR7IH provide?
A: It provides two communication channels for relay data exchange.

Q: What fiber wavelength does UR7IH use?
A: It uses 1300 nm optical transmission with multimode fiber.

Q: What transmitter technology does UR7IH use?
A: It uses LED-based optical transmission technology.

Q: Which connector type is used in UR7IH?
A: It uses ST fiber connectors for optical connections.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
