GE UR8FH CT/VT Module

Technical Specifications

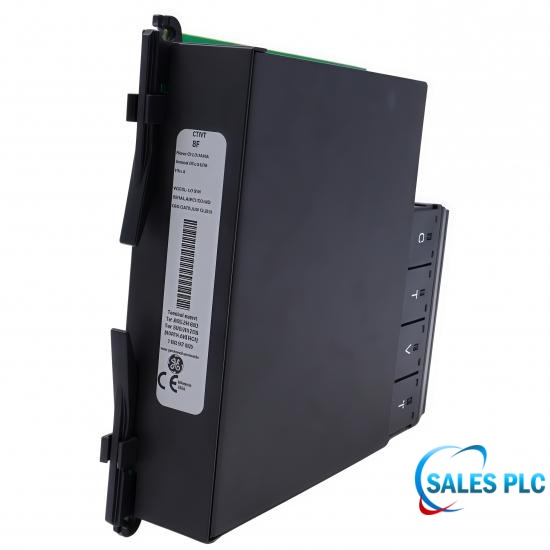

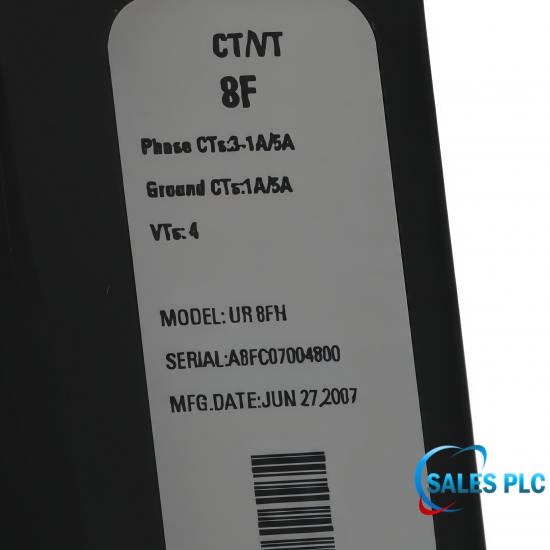

GE Multilin UR8FH is a CT/VT module used with Universal Relay systems for current and voltage signal input. It supports 3-phase current transformer connections, ground current measurement, and four voltage transformer terminals, providing reliable signal acquisition for protection, monitoring, and control applications. The module is suitable for feeder, transformer, generator, and bus protection systems where accurate electrical measurements are required. UR8FH works with existing UR series relay hardware and helps improve measurement performance by converting CT and VT signals into usable data for relay functions. It is commonly used for maintenance and replacement in industrial power systems.

Ground Fault Protection

The UR-8FH is the CT/VT described as having the standard 4CT/4VT. It does not have the sensitive ground feature, which allows the universal relay to be protected on grounded systems that are classified as high-impedance. The modules that have this feature are the UR-8G, UR-8J, UR-8M, and UR-8R order codes. These mentions are of the newer CT/VT generation. There are two older CT/VT modules (UR-8B and UR-8D) which also have the sensitive ground fault protection capability. The standard models with the 4CT/4VT feature for example does have the typical up to 24 analog current transformer and voltage transformer capacity as described of all the CT/VT modules incorporated into the various universal relays.

I/O Module Capabilities

In addition to the CT/VT modules, the universal relays also have a transducer I/O module. This provides the UR with either DCmA cards or RTDs to monitor flow, wind speed, temperature, vibration, or pressure. Analog outputs can also be used to connect the UR to an external PLC or other user interface devices. The universal relays also have a digital I/O module that contains up to 96 contact inputs and up to 64 contact outputs.

FAQ  技术常见问题解答

Q: Can UR8FH receive voltage transformer signals directly?
A: It accepts VT secondary signals and provides reliable voltage measurement for relay protection functions.

Q: What type of applications use UR8FH in electrical systems?
A: It is commonly used in substations, industrial power networks, transformer protection, and generator protection systems.

Q: How many measurement channels are available in UR8FH?
A: It provides eight acquisition channels for combined current and voltage monitoring tasks.

Q: Does UR8FH support three phase current measurement?
A: It supports three phase current inputs with additional grounding current measurement capability.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
