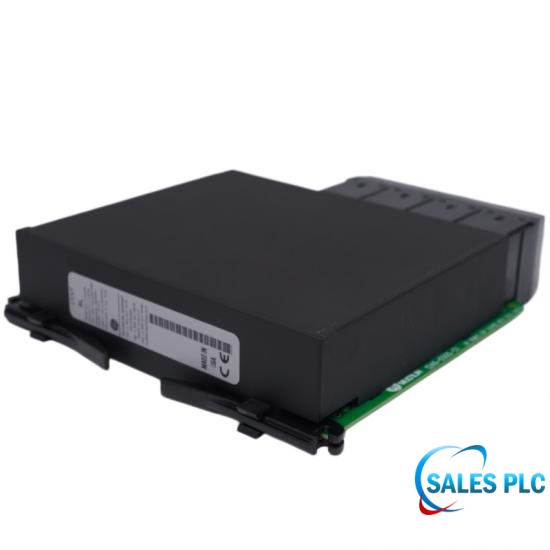

GE UR8LH CT/VT Module

Technical Specifications

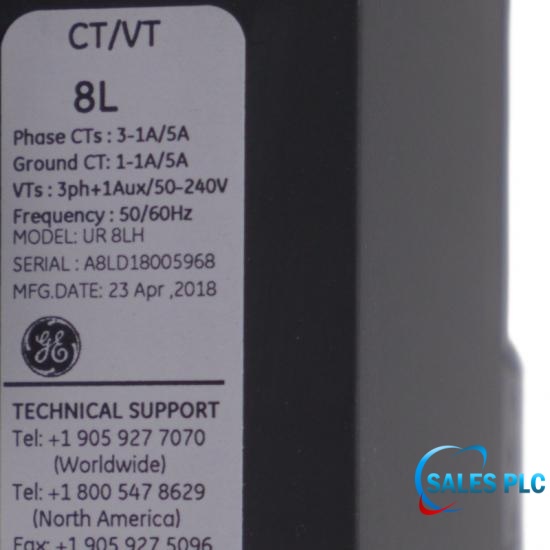

UR8LH CT/VT Module is a GE Multilin Universal Relay input module used for current and voltage signal acquisition in power protection systems. It provides a 4CT/4VT configuration with three-phase current inputs, one ground current input, and four voltage input channels for electrical measurement. The module supports phase CT inputs rated at 1A or 5A, ground CT inputs rated at 1A or 5A, and VT inputs rated from 50V to 240V with 50/60Hz frequency operation. It supports flexible system integration through modular installation and works with EnerVista software for configuration and maintenance. It is widely used in substations, industrial power systems, and automation applications requiring reliable CT/VT measurement.

Detects internal CT/VT channel measurement failures.
Generates alarms when analog input problems are detected.
Blocks related protection actions during detected measurement faults.
Transfers processed measurement data to the relay CPU module.
Supports current, voltage, frequency, and phase measurement functions.
Provides data for protection, monitoring, and control operations.

Structure

Analog Processing Unit

• Converts CT and VT analog signals into digital measurement data.
• Performs high-resolution sampling for current and voltage values.
• Provides waveform, RMS, frequency, and phase information for relay calculations.

• Uses analog data integrity checking technology.
• Monitors CT/VT channel conditions during operation.
• Detects internal measurement failures and generates alarm signals.
• Can block related protection operations when input errors occur.

• Connects with the UR CPU module for data processing.
• Transfers measurement results to protection logic and control functions.
• Works with GE Multilin UR Series relay chassis.

FAQ  技术常见问题解答

Q: Which voltage range does UR8LH handle?
A: It supports VT inputs from 50V to 240V.

Q: What frequency range applies to UR8LH operation?
A: It supports 50/60Hz power system frequency applications.

Q: What relay platform uses UR8LH?
A: It works with GE Multilin Universal Relay series platforms.

Q: What diagnostic feature does UR8LH provide?
A: It provides enhanced diagnostics for analog signal integrity checking.
